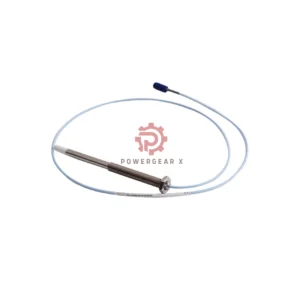

Bently Nevada 330904-08-15-10-02-05 3300 NSv Proximity Probe
Product Overview
The Bently Nevada 330904-08-15-10-02-05 is a 3300 NSv Proximity Probe with an M8X1 thread and armored cable. It is new, factory-sealed, and includes a 12-month warranty. Ideal for tight spaces and harsh environments. This probe is used in machinery vibration monitoring and positioning systems.
Key Technical Parameters
- Measurement Range: 0.25 mm to 1.75 mm (10 to 70 mils)
- Accuracy: ±0.06 mm (±2.3 mils)
- Output Signal: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz, -3 dB typical
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Recommended Gap: 1.0 mm (40 mils)
- Probe Pressure Seal: Viton O-ring sealed
Model Tree Structure – Complete Suffix Information
- Model: 330904 – 3300 NSv Probe
- Thread Type: M8X1
- Unthreaded Length: -08 = 80 mm
- Case Length: -15 = 150 mm
- Total Cable Length: 10 = 1.0 meter
- Connector Type: 02 = Miniature coaxial ClickLoc connector
- Agency Approval: 05 = Multiple Approvals
Installation Guide
- Torque – Finger Tight: Recommended
- Max Torque on Case: 0.56 N·m (5 in·lb)
- Bend Radius: Minimum 25.4 mm
- Thread Engagement: M8x1 up to 12 mm
- Field Wiring: Use 16 to 24 AWG; shielded triad cable recommended
Material and Build
- Probe Tip: Polyphenylene Sulfide (PPS)
- Probe Case: AISI 304 Stainless Steel
- Cable: 75 Ω coaxial with FEP insulation
Application Scenarios
- Ideal for small machines or tight-space mounting
- Used in gas or steam turbines, compressors, motors
- Helps monitor shaft position, vibration, and thermal expansion
- Works in harsh or corrosive environments due to high chemical resistance
Compatibility Information
- Fully compatible with Bently Nevada 3300 RAM systems
- Interchangeable with older 3300 series probes
Shipping Method
- Shipped via FedEx, UPS, or DHL
- Tracked express delivery available worldwide
