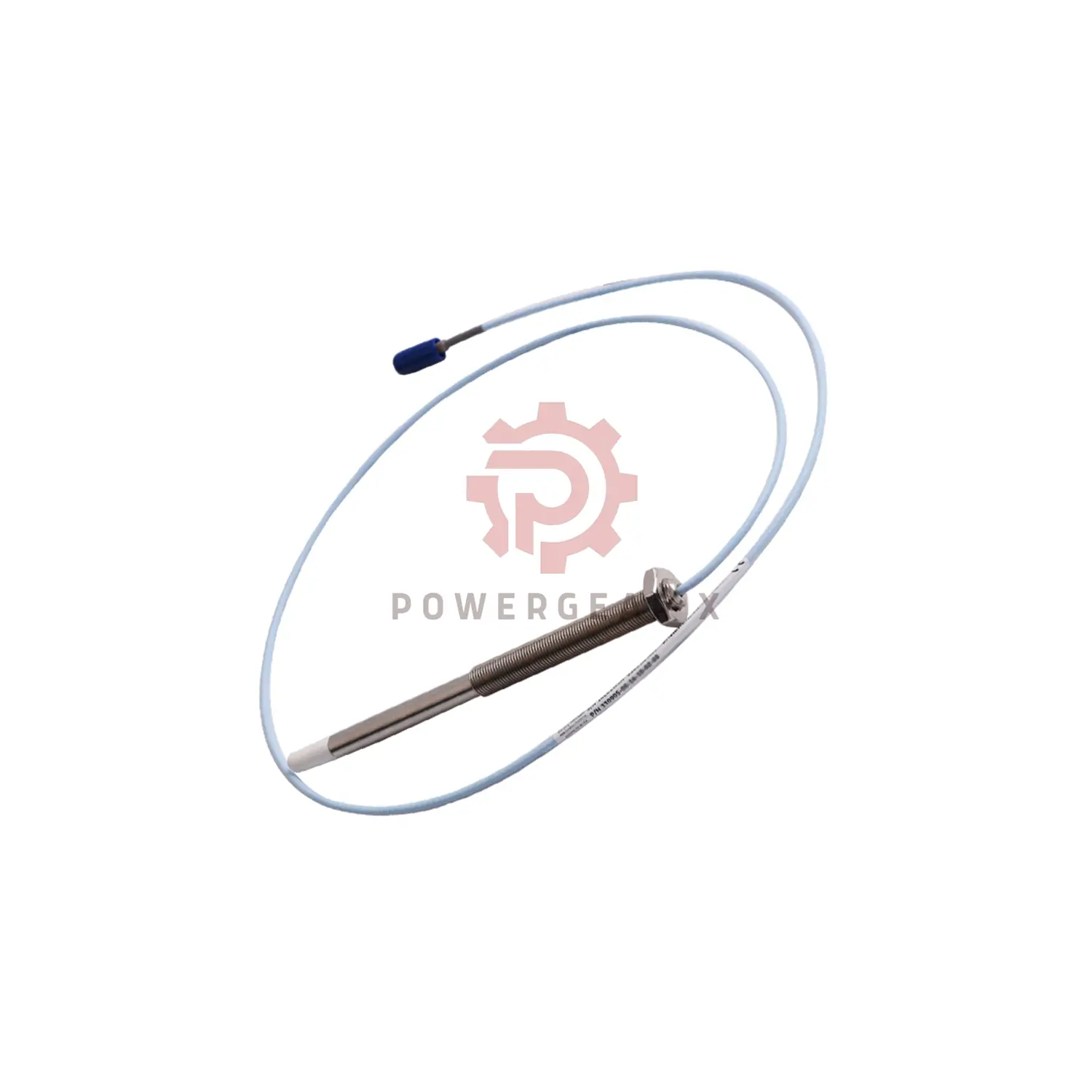

Bently Nevada 330904-08-15-05-11-00 3300 NSv Proximity Probe

Product Overview

Model: 3300 NSv Proximity Probe

Part Number: 330904-08-15-05-11-00

Manufacturer: Bently Nevada

Condition: New, Original Factory Packing

Warranty: 12 Months

Shipping: FedEx, UPS, DHL Available

Key Features

• Range: 1.5 mm (60 mils)
• Accuracy: ±0.06 mm (±2.3 mils)
• Output: 7.87 V/mm (200 mV/mil)
• Frequency Range: 0 to 10 kHz
• Temperature: -52°C to +177°C
• Pressure Seal: Viton O-ring

Model Breakdown

• 330904 – NSv Probe, M8x1 Thread, Armored Cable
• -08 – Unthreaded Length: 80 mm
• -15 – Case Length: 150 mm
• -05 – Cable Length: 0.5 meters
• -11 – ClickLoc Connector, FluidLoc Cable
• -00 – No Agency Approval

Installation Guidelines

• Torque: 5.1 N·m (45 in·lb)
• Max Torque: 7.3 N·m (65 in·lb)
• Finger-tight recommended
• Minimum Bend Radius: 25.4 mm
• Wiring: 16 to 24 AWG

Compatibility

• Works with 3300 RAM probes
• Improved chemical resistance
• Better side-view performance than 190 Series

Materials

• Tip: Polyphenylene Sulfide (PPS)
• Case: Stainless Steel (AISI 304)
• Cable: 75 Ω FEP-insulated coaxial

Electrical Specs

• Probe Resistance: 4.0 ± 0.5 Ω at 0.5 m
• Cable Resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
• Capacitance: 69.9 pF/m
