Product details

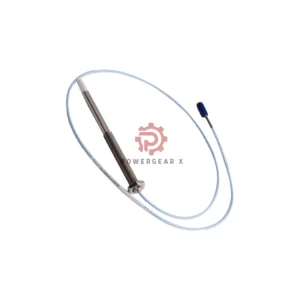

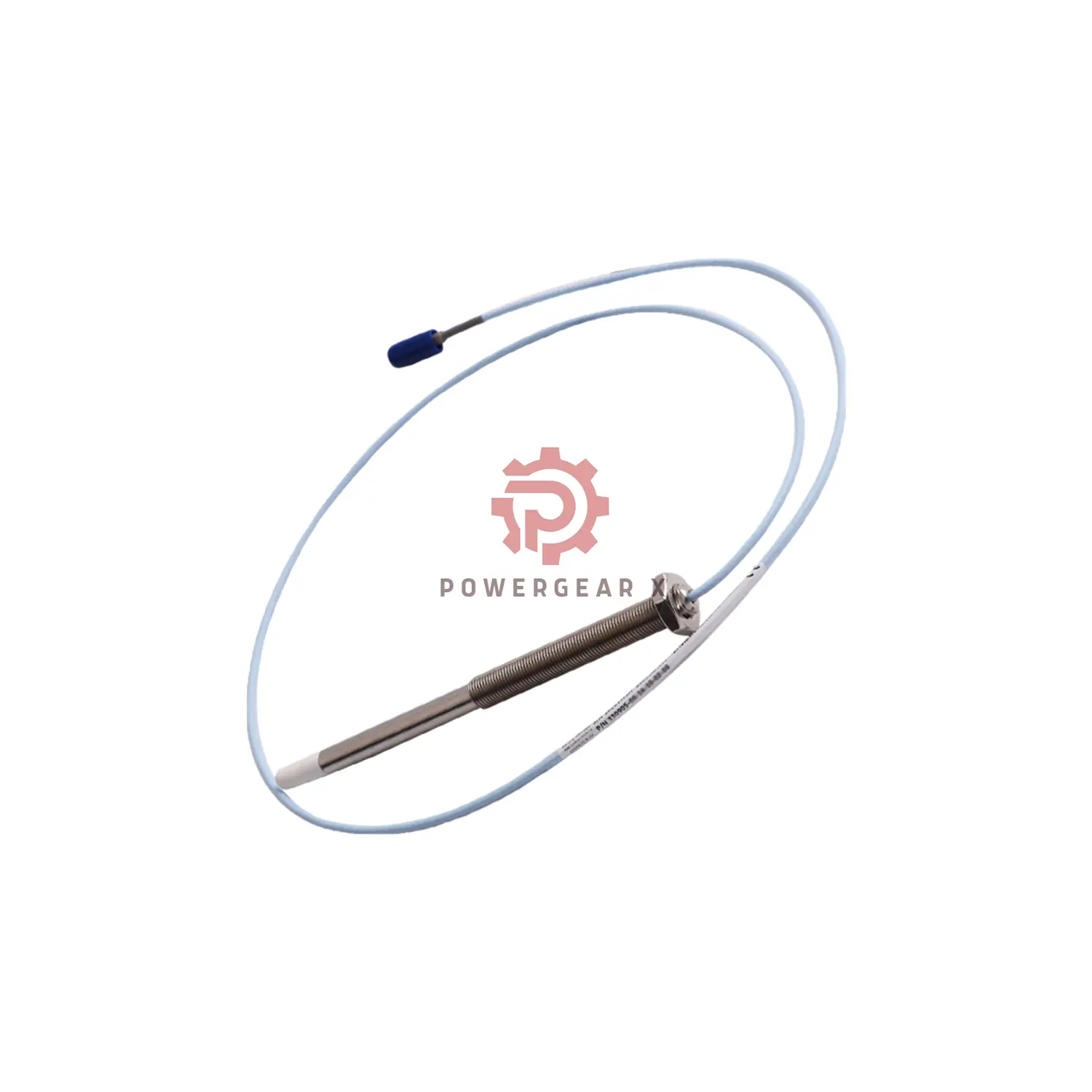

Bently Nevada 330904-08-15-05-01-00 3300 NSv Proximity Probe
Model Structure
- 330904 – 3300 NSv Probe with M8x1 Thread and Armor
- -08 – Unthreaded Length: 80 mm
- -15 – Overall Case Length: 150 mm
- 05 – Total Cable Length: 0.5 meter (20 inches)
- 01 – Connector Type: Miniature coaxial ClickLoc with protector
- 00 – Agency Approvals: Not required
Key Technical Parameters
- Measurement Range: Linear range 0.25 to 1.75 mm (10 to 70 mils)
- Output Signal: Approximately -1 to -13 Vdc across linear range
- Accuracy: Deviation less than ±0.06 mm (±2.3 mils)
- Incremental Scale Factor: 7.87 V/mm (±20% tolerance)
- Frequency Response: 0 to 10 kHz typical with up to 305 meters of wiring
- Probe DC Resistance: 4.0 ± 0.5 ohms at 0.5 meter length
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
Materials & Construction
- Probe tip: Polyphenylene sulfide (PPS)
- Probe case: AISI 304 stainless steel
- Probe cable: 75 Ω coaxial, FEP insulated, lengths available 0.5, 1, 5, or 7 meters
- Sealing: Viton O-ring for differential pressure sealing
Installation Guide
- Recommended gap setting: 1.0 mm (40 mils)
- Maximum torque for probe case: 5.1 N·m (45 in·lbs)
- Minimum bend radius of cable (with or without armor): 25.4 mm (1 inch)
- Use finger-tight torque on connector
- Compatible with 3300 RAM proximity probes and extension cables
Shipping Options
We ship worldwide with FedEx, UPS, and DHL for fast and secure delivery.
Industrial Use Cases & Pain Points Solved
- Prevents downtime by providing accurate shaft vibration monitoring
- Resists chemical damage in process compressors and other harsh environments
- Maintains signal quality over long cable runs for remote monitoring
- Easy installation and replacement reduce maintenance time and costs
