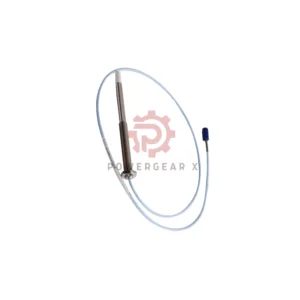

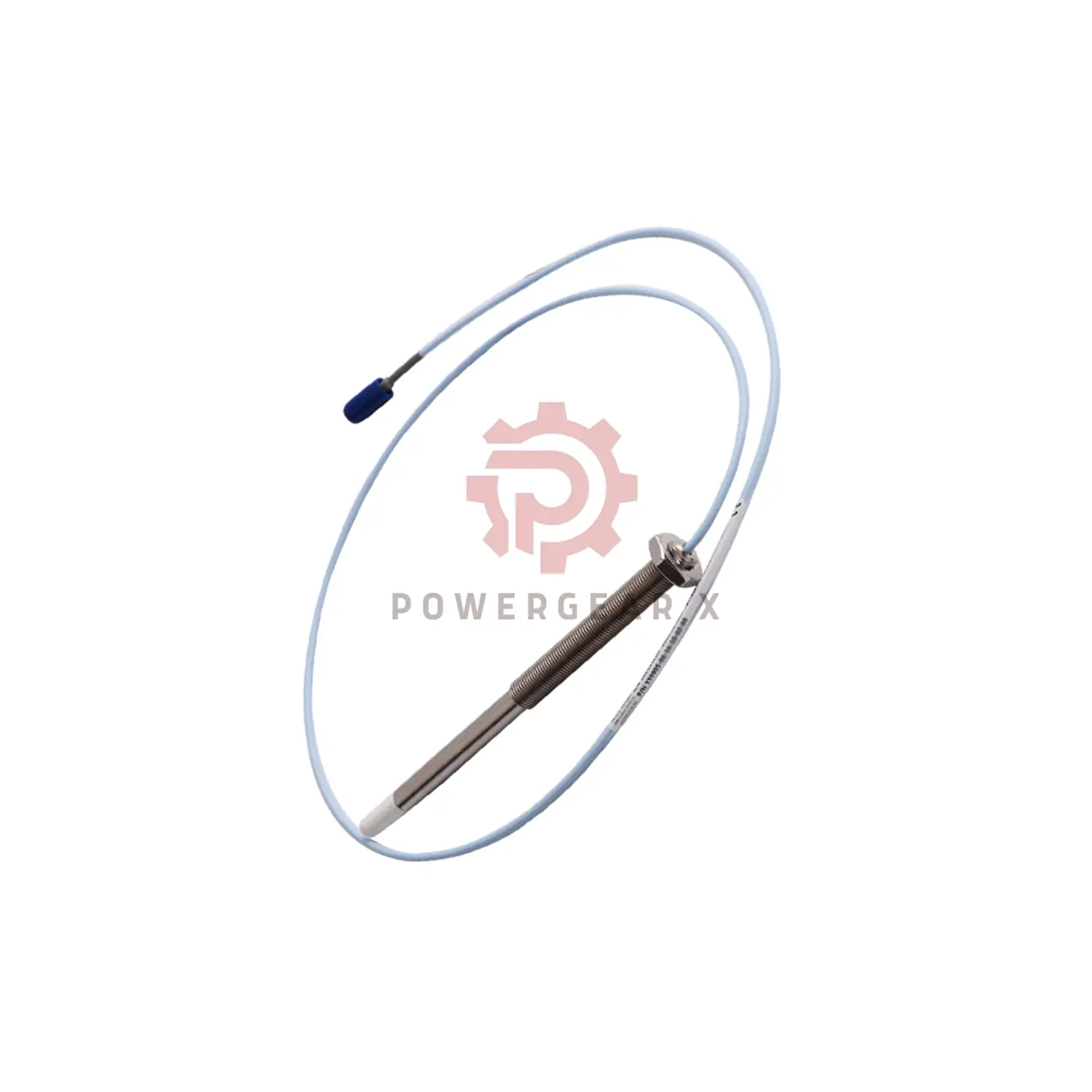

Bently Nevada 330904-08-10-70-11-05 3300 NSv Proximity Probe

Complete Model Details

• Part Number: 330904-08-10-70-11-05
• Model: 3300 NSv Probe with M8x1 thread and armor
• Unthreaded Length: 8 mm
• Overall Case Length: 100 mm
• Total Cable Length: 7.0 meters (23 feet)
• Connector and Cable: Miniature coaxial ClickLoc with protector, FluidLoc cable
• Agency Approval: Multiple certifications

Key Technical Parameters

• Measurement Range: 0.25 to 1.75 mm (10 to 70 mils)
• Accuracy: ±0.06 mm (±2.3 mils)
• Output Signal: 7.87 V/mm (200 mV/mil) ±20%
• Frequency Response: 0 to 10 kHz, stable up to 305 meters cable length
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe DC Resistance (7 m length): 5.9 ± 0.9 ohms
• Extension Cable Resistance: Center conductor 0.22 Ω/m, Shield 0.066 Ω/m
• Cable Capacitance: 69.9 pF/m typical
• Recommended Gap: 1.0 mm (40 mils)
• Minimum Target Size: 8.9 mm diameter; recommended 13 mm diameter
• Minimum Bend Radius: 25.4 mm (1 inch)

Installation Guide

• Use finger-tight torque for probe: max 0.56 N·m (5 in·lb)
• Probe case max torque: 7.3 N·m (65 in·lb), recommended 5.1 N·m (45 in·lb)
• Thread engagement max length: 12 mm
• Use shielded triad cable for field wiring
• Max wiring length: 305 meters (1000 feet)

Compatibility

• Works with Bently Nevada 3300 RAM proximity probes and extension cables
• Compatible with 3300 XL NSv Proximitor Sensor systems
• Improved chemical resistance over 3300 RAM probes
• Better side-view accuracy than 3000-series 190 probes at equal gap

Packing List

• One 3300 NSv Proximity Probe (model 330904-08-10-70-11-05)
• Factory sealed packaging
• Includes ClickLoc connector with protector
• User manual and installation instructions
