Metric 3300 NSv – Proximity Probes 330904-00-15-50-01-00 | Bently Nevada

Bently Nevada 3300 NSv Proximity Probe: Precision Measurement Solution

Description

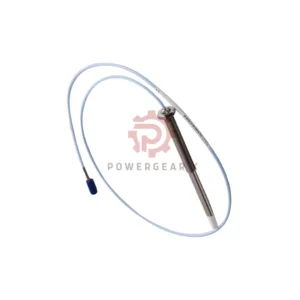

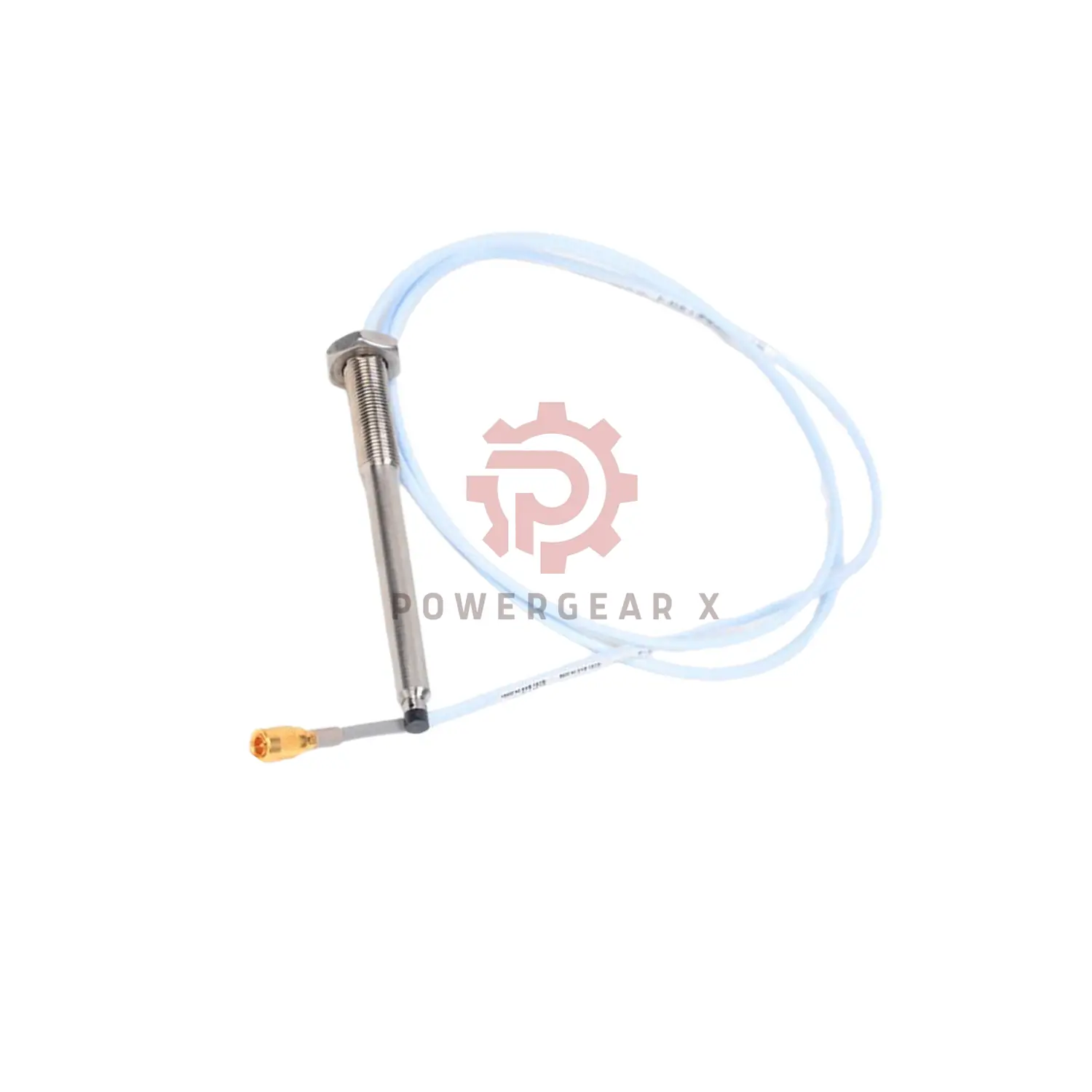

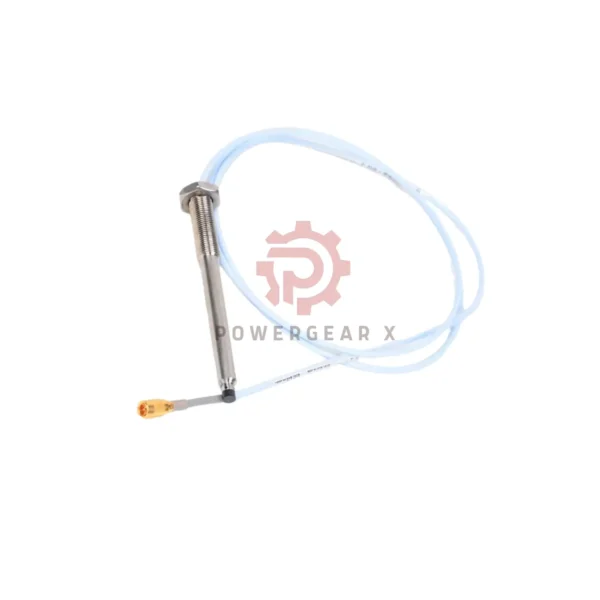

The 330904-00-15-50-01-00 by Bently Nevada is a rugged proximity probe for industrial vibration and position monitoring. Features an M8x1 threaded case, 5.0m standard cable, and ClickLoc connector. Ideal for harsh environments with PPS tip and 304 SST construction. Direct replacement for legacy 3300 RAM probes.

Technical Data

• Brand: Bently Nevada
• Model: 330904-00-15-50-01-00
• Model Suffix Details:
  • -00- 0mm Unthreaded Length
  • -15- 150mm Case Length
  • 50 5.0m Cable
  • 01 ClickLoc Connector + Standard Cable
  • 00 No Certifications Required
• Range: 0.25–1.75mm (1.5mm linear)
• Accuracy: ±0.06mm deviation
• Output: 7.87V/mm (±12.5%)
• Temp Range: -52°C to +177°C

Installation Guide

• Mounting: M8x1 thread (12mm max engagement)
• Torque: 5.1N•m recommended (7.3N•m max)
• Bend Radius: >25.4mm
• Target Size: Min 13mm diameter

Key Features

• Viton O-ring pressure sealing
• 75Ω FEP-insulated coaxial cable
• 0–10kHz frequency response
• 5.0m flexible standard cable

Compatibility

Fully interchangeable with 3300 RAM probes. Superior side-view performance vs 190-series probes.

Certifications

No agency approvals required (suffix 00).

Package Includes

• 1x 3300 NSv Probe (5.0m cable)
• ClickLoc connector protector
• Factory documentation
