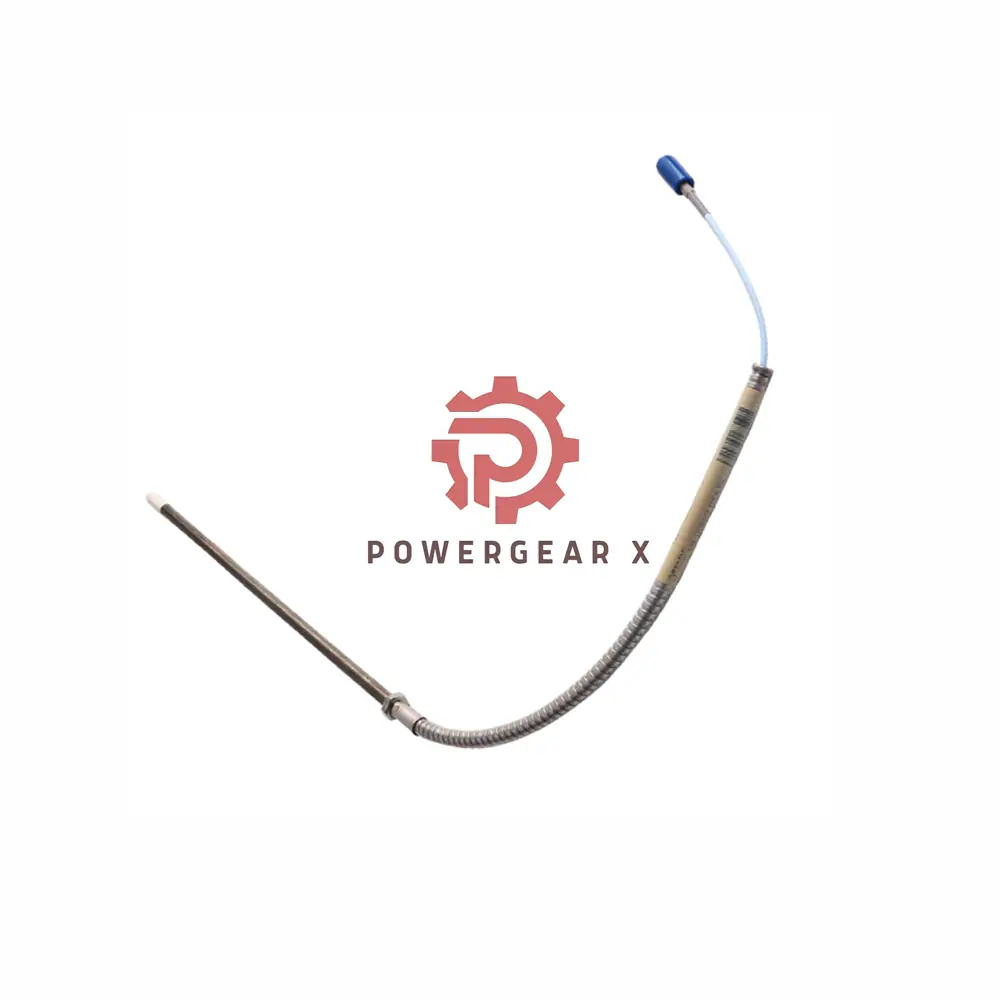

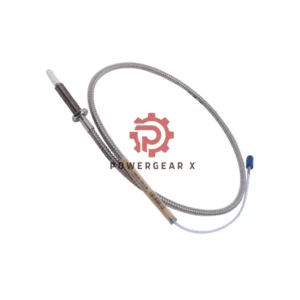

Bently Nevada 3300 NSv Probe: Mid-Range Industrial Sensing

Description

The 330904-00-10-50-11-00 proximity probe features a 5.0-meter FluidLoc cable for flexible vibration monitoring. With M8X1 threading and no required certifications, it’s ideal for general industrial use. Fully compatible with older 3300 RAM systems.

Model Details ( 330904-00-10-50-11-00 )

• -00- 0mm unthreaded section
• -10- 100mm case length
• 50 5.0m total cable
• 11 ClickLoc + FluidLoc connector
• 00 No agency approvals

Core Specifications

• Detection Range: 1.5mm (0.25-1.75mm)
• Accuracy: ±0.06mm error
• Output Signal: 7.87 V/mm
• Temp Range: -52°C to +177°C
• Cable Type: 75Ω FEP-insulated coaxial

Installation Guide

• Max torque: 0.56 N•m (finger tight)
• Optimal gap: 1.0mm from target
• Min bend radius: 25.4mm

Compatibility

Direct replacement for 3300 RAM probes. Outperforms 3000-series 190 probes in side-view measurements.

Package Contents

• Factory-sealed NSv probe
• Connector protector
• Installation manual

Typical Applications

• Water treatment pump monitoring
• HVAC compressor vibration checks
• Factory production line motors
