Bently Nevada 3300 NSv Proximity Probe: Robust Industrial Sensing Solution

Description

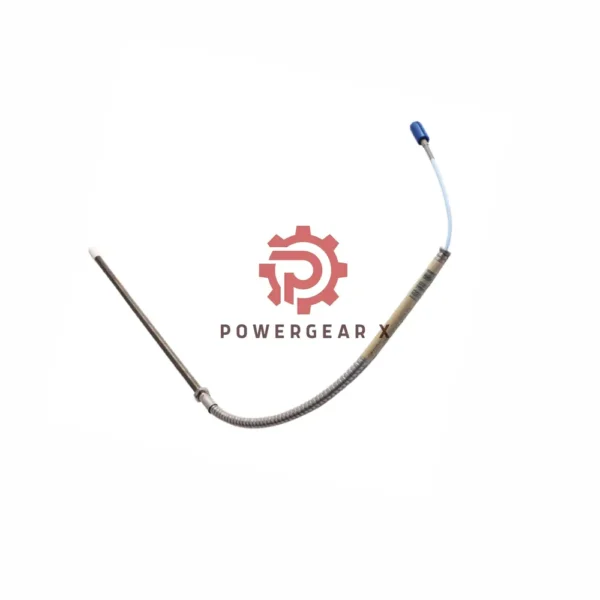

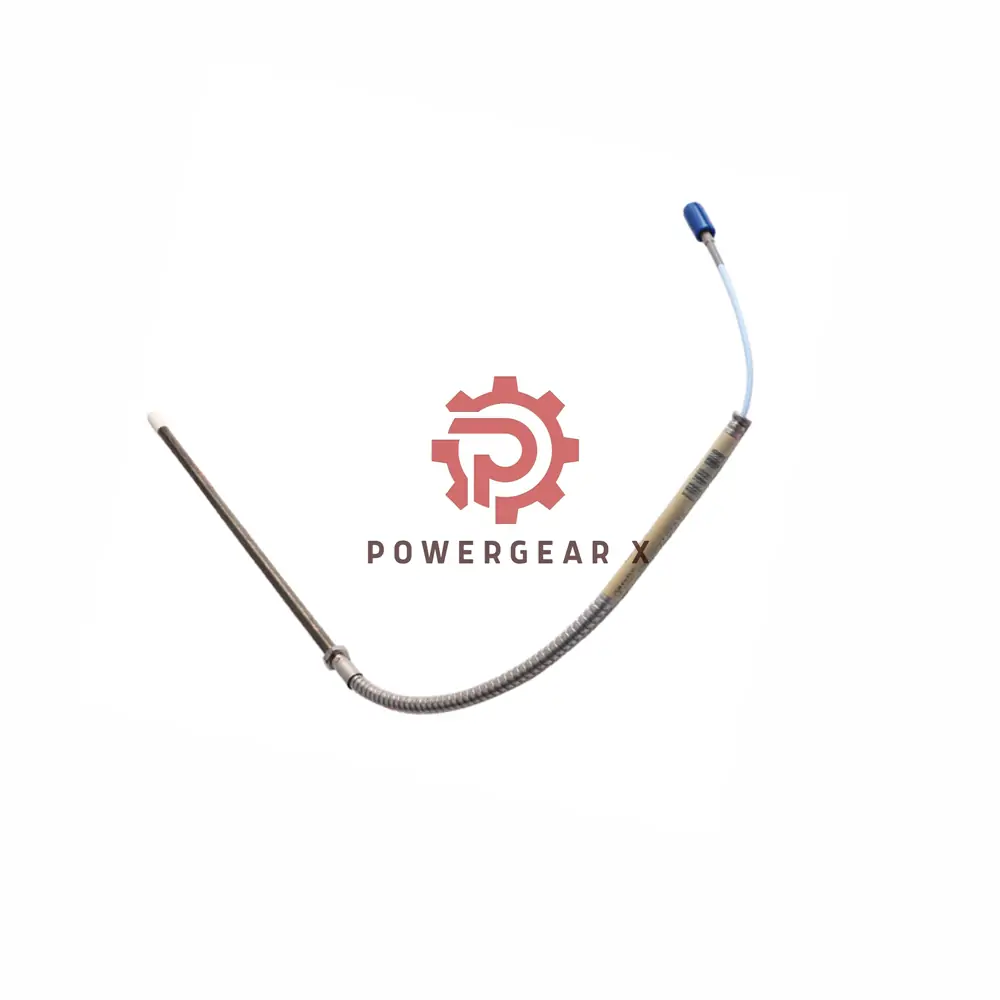

The Bently Nevada 330904-00-10-10-01-05 proximity probe ensures reliable machinery monitoring in extreme conditions. Features a PPS tip for chemical resistance and stainless steel casing. Backward-compatible with 3300 RAM systems.

Technical Data

Brand: Bently Nevada
Model: 330904-00-10-10-01-05
Model Suffix Breakdown:
– 00: 0mm unthreaded length
– 10: 100mm case length
– 10: 1.0m cable length
– 01: ClickLoc connector with protector
– 05: Multiple agency approvals

Key Specifications:
• Range: 0.25–1.75mm (-1 to -13Vdc)
• Accuracy: ±0.06mm deviation
• Signal: 7.87 V/mm (±12.5%)
• Temp: -52°C to +177°C
• Cable: 1.0m FEP coaxial

Installation

• Max torque: 5.1 N•m
• Bend radius: 25.4mm
• Use shielded triad cable (≤305m)

Compatibility

Direct replacement for 3300 RAM probes. Superior side-view performance vs. 3000-series probes.

Certifications

Meets multiple international standards (suffix -05).

Package Includes

• Factory-sealed probe
• Connector protector
• Installation guide

Industrial Uses

• Compressor vibration monitoring
• Turbine shaft alignment
• Chemical processing equipment
