Metric 3300 NSv – Proximity Probes 330903-00-05-70-01-00 | Bently Nevada

Product Overview

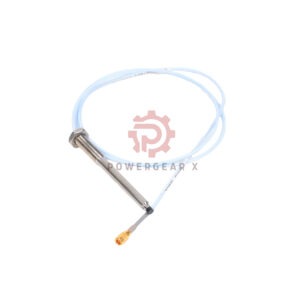

The Bently Nevada 330903-00-05-70-01-00 industrial probe features a 50mm case and 7m standard cable. Compatible with 3300 RAM systems. M8x1 threads, factory-sealed with 12-month warranty. Designed for machinery vibration monitoring.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-05-70-01-00
• Model Code Breakdown: – 00: 0mm unthreaded length – 05: 50mm stainless steel case – 70: 7.0m cable length – 01: ClickLoc connector + protector – 00: No agency approvals
• Electrical Data: – Probe Resistance: 5.9Ω ±0.9 @7m – Cable Resistance: 0.220Ω/m (center), 0.066Ω/m (shield) – Capacitance: 69.9pF/m ±5%
• Measurement Performance: – Linear Range: 0.25-1.75mm (10-70 mils) – Scale Factor: 7.87V/mm (+12.5%/-20%) – Deviation: <±0.06mm from linearity

Mechanical Details

• Installation Specs: – Thread Engagement: 12mm max (M8x1) – Torque Limit: 0.56N·m (5in·lb) – Bend Radius: 25.4mm minimum
• Material Composition: – Tip: PPS (Polyphenylene sulfide) – Housing: AISI 304 SST – Seal: Viton O-ring

Environmental Ratings

• Temperature Limits: – Operation: -52°C to +177°C – Storage: -52°C to +177°C
• Field Wiring Requirements: – Gauge: 16-24AWG (0.2-1.5mm²) – Max Length: 305m (1000ft) – Cable Type: Shielded triad

For more detailed information:3300 NSv Proximity Transducer System Datasheet
