Bently Nevada 3300 NSv Proximity Probe: Precision Monitoring for Industrial Applications

Product Description

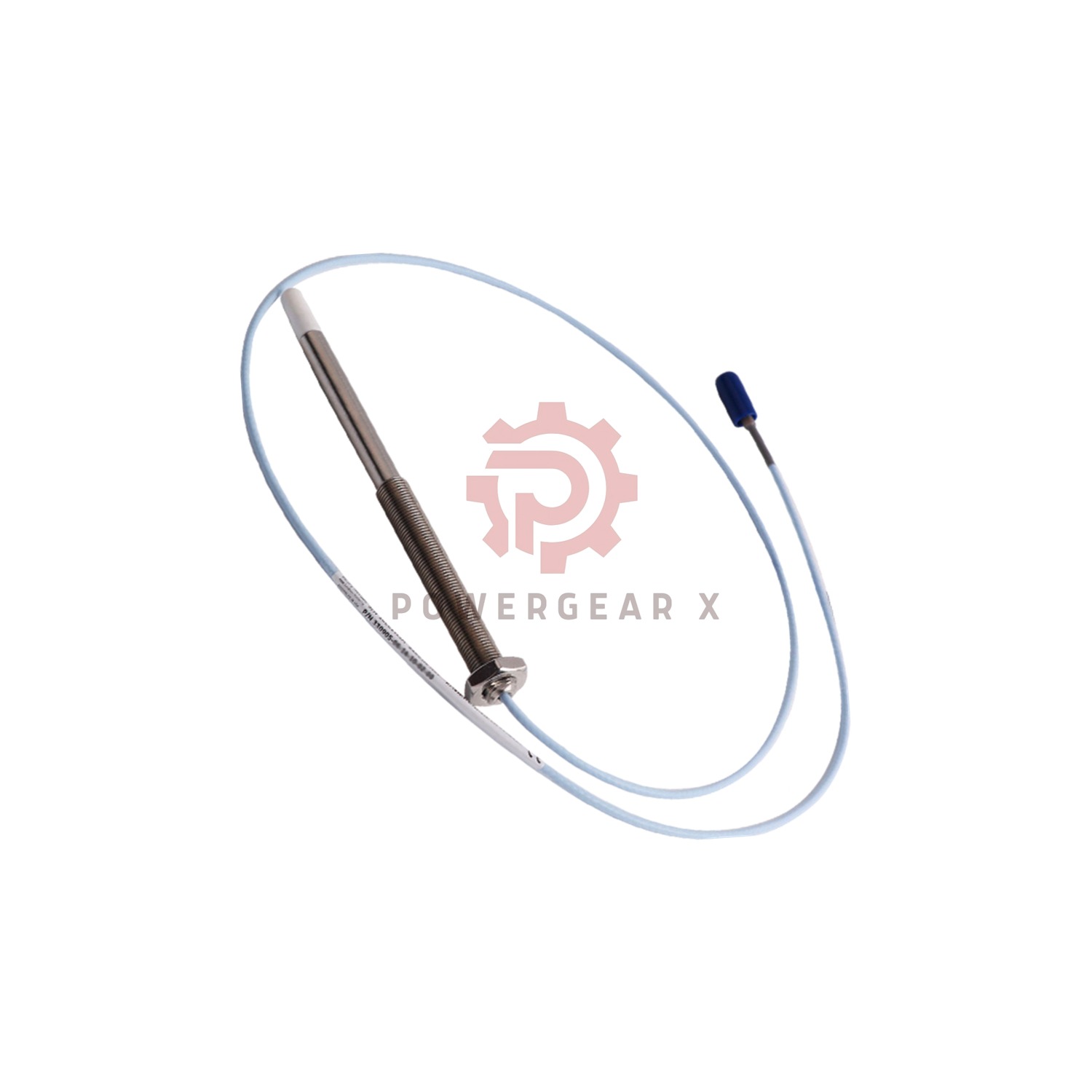

The Bently Nevada 330903-00-04-70-02-05 proximity probe is a new & original sensor designed for reliable vibration and position monitoring in harsh environments. Featuring an M8X1 thread and 7.0-meter unarmored cable, this probe offers enhanced chemical resistance and superior side-view performance compared to older models. Ideal for compressors, turbines, and rotating machinery.

Technical Data

• Brand: Bently Nevada
• Model: 3300 NSv Probe (Full Suffix: 330903-00-04-70-02-05)
• Suffix Breakdown:-00: 0 mm Unthreaded Length

  -04: 40 mm Case Length

  -70: 7.0 m Total Cable

  -02: Miniature Coaxial ClickLoc Connector

  -05: Multiple Agency Approvals

• Range: 1.5 mm (60 mils)
• Accuracy (DSL): ±0.06 mm (±2.3 mils)
• Output Signal: -1 to -13 Vdc (Linear)
• Operating Temp: -52°C to +177°C
• Cable: 75Ω coaxial, FEP insulation

Installation Guide

• Torque: 5.1 N•m (Recommended) / 7.3 N•m (Max)
• Bend Radius: ≥25.4 mm
• Gap Setting: 1.0 mm (40 mils) from target

Compatibility

Works with 3300 XL NSv Proximitor Sensors and interchangeable with legacy 3300 RAM probes.

Certifications

Approved for global use under multiple industrial standards (Suffix -05).

For more detailed information:3300 NSv Proximity Transducer System Datasheet
