Metric 3300 NSv – Proximity Probes 330903-00-03-70-02-00 | Bently Nevada

Overview

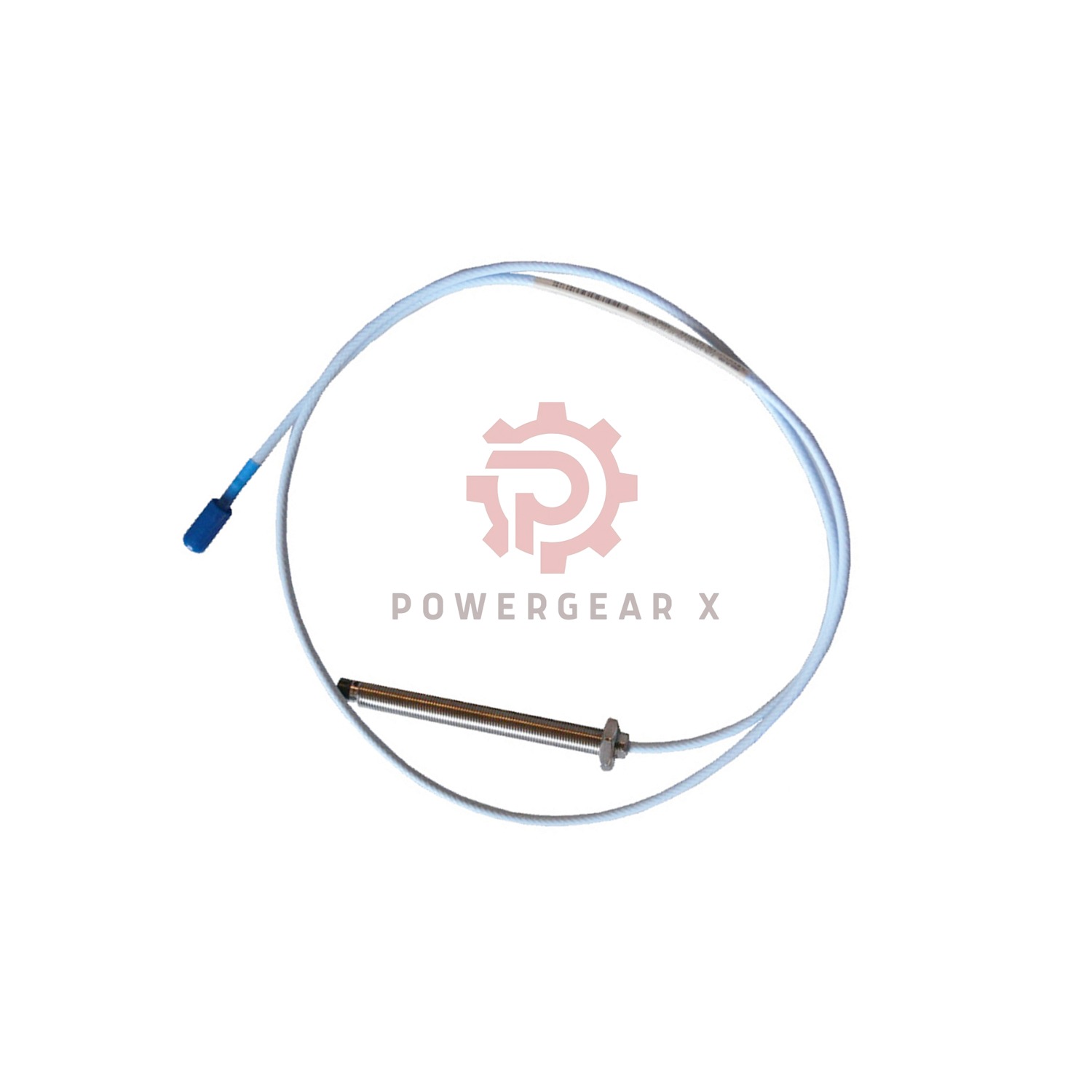

The Bently Nevada 330903-00-03-70-02-00 proximity probe works with older 3300 RAM systems. It has a 7-meter standard cable and M8x1 threads. This new probe comes in factory packaging with a 1-year warranty. Ideal for industrial equipment monitoring.

Technical Specs

• Brand: Bently Nevada
• Model: 330903-00-03-70-02-00
• Code Breakdown:
  – 00: No unthreaded part
  – 03: 30mm case
  – 70: 7.0m length
  – 02: ClickLoc connector + standard cable
  – 00: No agency approvals
• Probe Resistance: 5.9 ohms (±0.9)
• Cable Specs:
  – Center wire: 0.220 ohms/m
  – Shield: 0.066 ohms/m
  – Capacitance: 69.9 pF/m
• Measuring Range: 0.25–1.75mm (10–70 mils)
• Voltage Output: 7.87V/mm (±12.5%)
• Response Speed: 0–10,000Hz (±3dB)
• Min Target: 8.9mm (13mm advised)
• Temperature: -52°C to +177°C
• Max Torque: 0.56N•m (5 in•lb)

Key Benefits

Works with 3300 RAM cables. Better chemical resistance than older models. Uses standard triad shielded wiring (max 305m). Stays accurate within ±0.06mm. Has a stainless steel case and PPS tip.

For more detailed information:3300 NSv Proximity Transducer System Datasheet
