Metric 3300 NSv – Proximity Probes 330903-00-02-70-11-00 | Bently Nevada

Product Overview

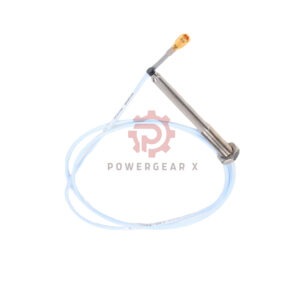

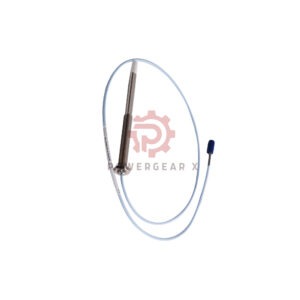

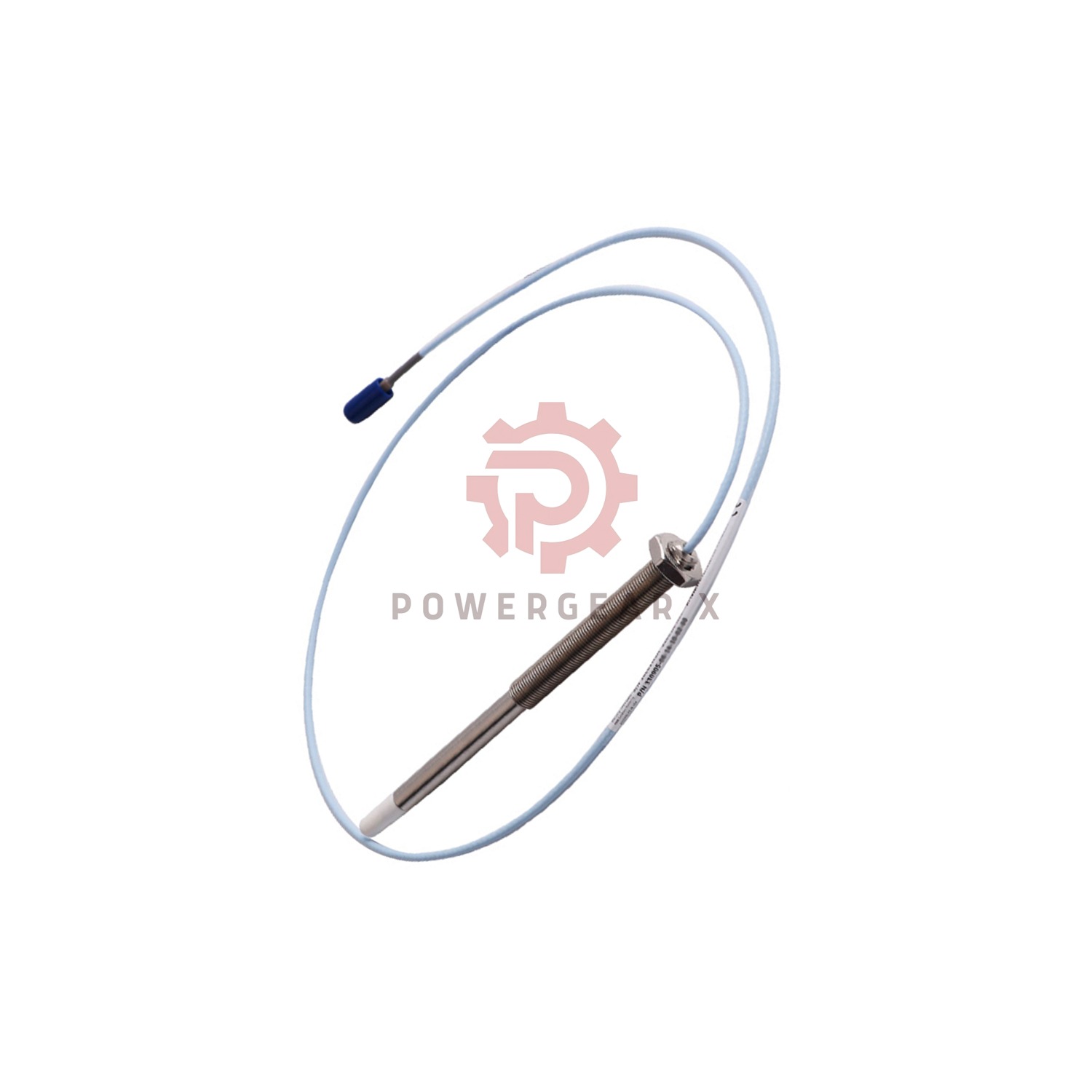

The Bently Nevada 330903-00-02-70-11-00 proximity probe offers precise vibration monitoring with a compact 20mm case. Features 7m FluidLoc cable, ClickLoc connector, and chemical-resistant design. Factory-new with 12-month warranty.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-02-70-11-00
• Model Codes:
  ▶ 00: 0mm unthreaded section
  ▶ 02: 20mm case length
  ▶ 70: 7.0m cable
  ▶ 11: ClickLoc + FluidLoc + protector
  ▶ 00: No certifications required
• Electrical Data:
  – Probe Resistance: 5.9Ω ±0.9 at 7m
  – Cable Specs: 0.220Ω/m (center), 0.066Ω/m (shield)
  – Capacitance: 69.9pF/m ±5%

Installation Guide

• Case Size: 20mm length (shortest option)
• Threads: M8x1 (max 12mm engagement)
• Torque: 0.56N·m max (finger tight)
• Gap Setting: 1.0mm (40 mils) optimal
• Bend Radius: 25.4mm minimum

Durability Features

• Materials:
  – Tip: PPS polymer (chemical/oil resistant)
  – Case: AISI 304 stainless steel
  – Seal: Viton O-ring (untested pressure rating)
• Extreme Conditions:
  – Temp Range: -52°C to +177°C
  – Cable: FluidLoc FEP insulation
• Wiring: 16-24AWG shielded triad (305m max)

For more detailed information:3300 NSv Proximity Transducer System Datasheet
