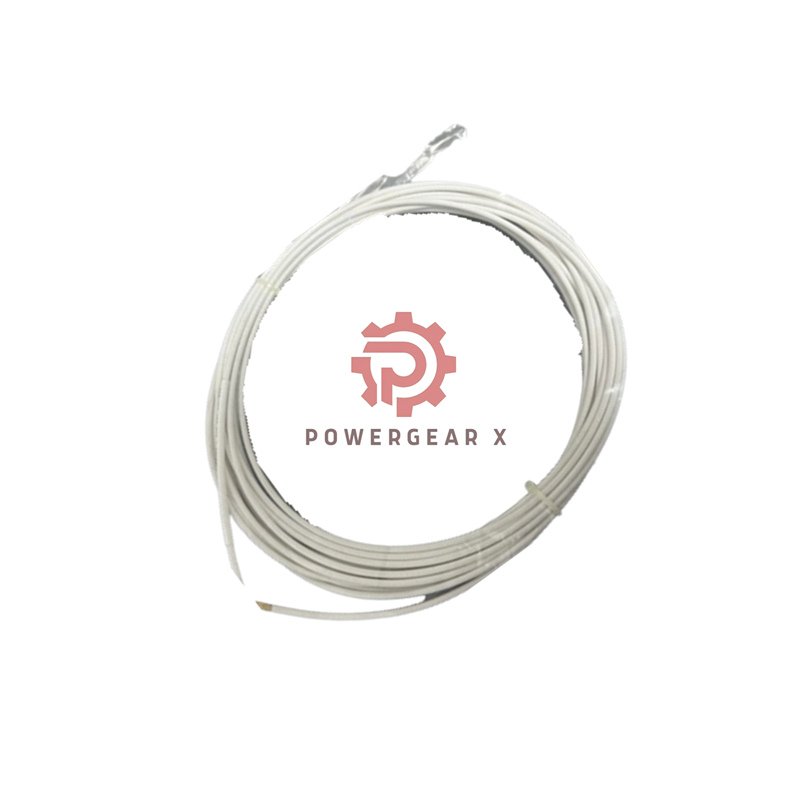

Meggitt Vibro-Meter 913-402-000-013/A1-E095-F2-G093 Proximity Measuring System

Meggitt Vibro-Meter 913-402-000-013/A1-E095-F2-G093 Proximity Measuring System

Compact, precise, and engineered for reliability — the Meggitt (Vibro-Meter) 913-402-000-013/A1-E095-F2-G093 delivers exceptional non-contact vibration and position measurement. Designed for demanding turbomachinery environments, this proximity measuring system ensures dependable monitoring across temperature extremes and harsh industrial zones.

🔹 Product Overview

• Manufacturer: Meggitt (Vibro-Meter)
• Model Number: 913-402-000-013/A1-E095-F2-G093
• Type: Proximity Measuring System
• Weight: 0.22 kg
• Warranty: 12 months full coverage
• Shipping: FedEx / UPS / DHL

🌿 Configuration Tree (Suffix Details)

• A = Environment: 1 = Standard
• E = Extension Cable Length: 095 = 9.5 m ±950 mm
• F = Optional Protection: 2 = Flexible hose with FEP sheath, no connector
• G = Flexible Hose Length: 093 = 9.3 m

⚙️ Technical Highlights

• High-frequency power source from IQS900 signal conditioner
• Temperature range (sensor): −40°C to +180°C (operation), up to +220°C (short term)
• Vibration endurance: 5 g peak (10–500 Hz)
• Shock resistance: 15 g, 11 ms half sine-wave
• Protection rating: IP68 (transducer head)
• Cable: FEP 70 Ω coaxial, Ø3.6 mm
• Construction: Stainless steel AISI 316L body with Torlon tip
• Mounting: Two M4 screws (without DIN adaptor)
• Compliance: API 670

💡 Key Selling Points

• Non-contact eddy current sensing for precision shaft monitoring
• FEP sheath for extreme chemical and heat resistance
• IP68 waterproof protection for harsh conditions
• API 670 compliance for industrial safety
• Stable output across 20 kHz frequency response range
• Easy integration with VM600Mk2 and VibroSmart® systems
• Lightweight, rugged, and corrosion-resistant

📦 Typical Applications

• Shaft vibration and displacement measurement
• Gas/steam turbine monitoring
• Compressor and gearbox protection
• Machine condition diagnostics
• Hazardous zone instrumentation

📨 Contact Information
Inquiries: sales@powergearx.com
WhatsApp: +86 18030005825

❓ Frequently Asked Questions (FAQ)

• Q1: What is the measurement range of the Meggitt 913-402-000-013 system?
  It supports 2 mm or 4 mm ranges depending on configuration.
• Q2: Can this system operate in hazardous zones?
  Yes, it supports API 670 standards and can operate in Ex-rated environments when paired properly.
• Q3: What is the frequency response?
  The proximity system covers DC to 20 kHz (−3 dB).
• Q4: Does it include cable protection?
  Yes, this version includes a flexible hose with FEP sheath for additional durability.
• Q5: What power source does it require?
  It works with a high-frequency excitation source from the IQS900 signal conditioner.
