Product details

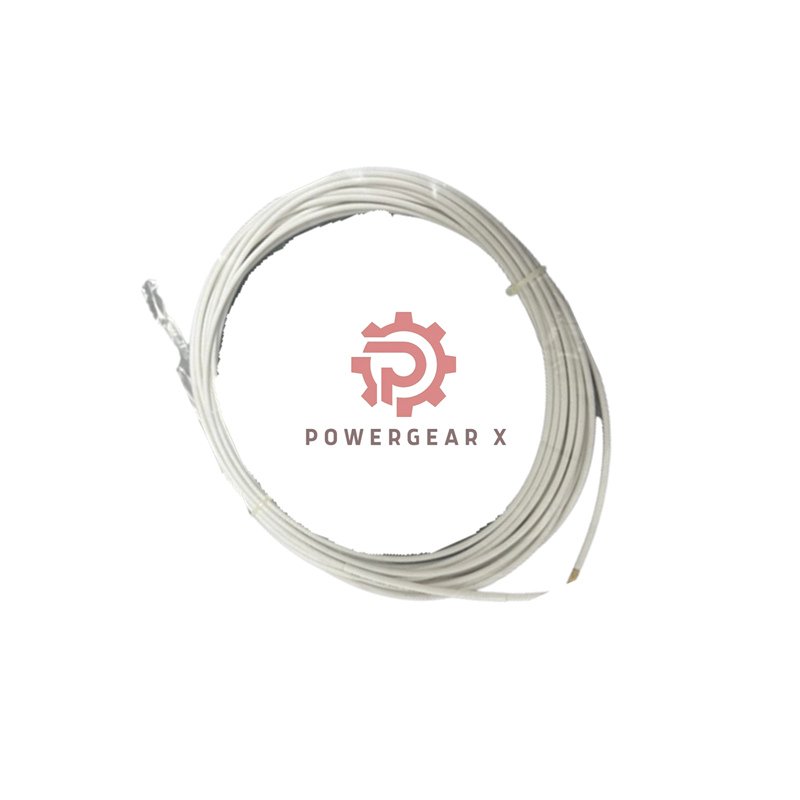

Meggitt Vibro-Meter 913-402-000-012 Proximity Measuring System
- Manufacturer: Meggitt (Vibro-Meter)
- Product No.: 913-402-000-012/A1-E040-F1-G038
- Product Type: Proximity Measuring System
- Country of Origin: Switzerland
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
Suffix Details:
- A1: Standard environment
- E040: 4.0 m ±400 mm extension cable
- F1: Flexible hose, no connector
- G038: Flexible hose length 3.8 m
Key Specifications:
- Weight: 0.22 kg
- Input Power: From IQS900 signal conditioner
- Temperature Range: −40°C to +180°C (drift <5%)
- Short-Term Survival: +220°C
- Ex Zone Use: Up to +195°C
- Protection Rating: IP68 (probe head)
- Vibration Resistance: 5 g peak (10–500 Hz)
- Shock Resistance: 15 g peak, 11 ms duration
Construction:
- Coil Diameter: Ø8 mm wire coil
- Tip Material: Torlon (polyamide-imide)
- Body: Stainless steel AISI 316L with epoxy sealing
- Cable: FEP-covered 70 Ω coaxial, Ø3.6 mm
- Connector: Self-locking miniature coaxial
Optional Protection:
- Stainless steel flexible hose for mechanical safety
- FEP sheath resists most chemicals, gases, and liquids
Performance Highlights:
- Non-contact eddy-current measurement
- Meets API 670 standard for vibration systems
- Temperature-compensated output
- Frequency Response: DC to 20 kHz (−3 dB)
- Measurement Range: 2 or 4 mm
Applications:
- Used in shaft vibration and position monitoring
- Ideal for VM600Mk2, VM600, and VibroSmart® systems
- Suitable for turbine, compressor, and motor systems
Contact Information:
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQ
- Can the 913-402-000-012 be used in high temperatures?
- Yes, it operates up to +180°C and survives +220°C for short periods.
- Does this model meet API 670 requirements?
- Yes, it fully complies with API 670 machinery monitoring standards.
- What is the benefit of the stainless steel hose?
- It adds extra protection from physical damage and harsh conditions.
- Is the sensor suitable for hazardous environments?
- This version is for standard zones, but Ex-rated versions are available.
- What systems can this sensor integrate with?
- It works with Vibro-Meter VM600, VM600Mk2, and VibroSmart® platforms.
