Product details

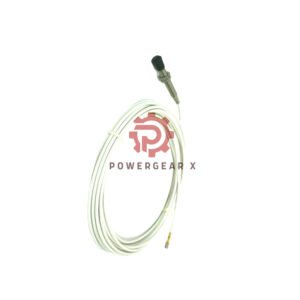

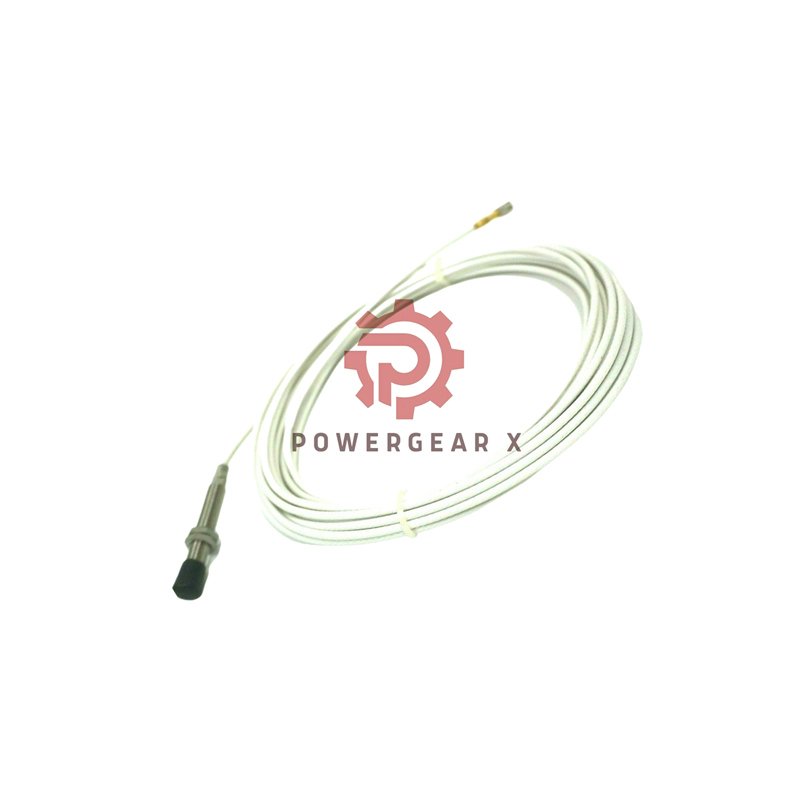

Meggitt Vibro-Meter 111-412-000-013-A1-B1-E010-F0-G000-H01 Proximity Measuring System
The Meggitt Vibro-Meter 111-412-000-013-A1-B1-E010-F0-G000-H01 is a high-performance proximity measuring system built for reliable non-contact vibration and position monitoring in rotating machinery. Designed for tough environments and compliant with API 670 standards, it ensures accurate, stable, and temperature-compensated performance.
- Manufacturer: Meggitt (Vibro-Meter)
- Product No.: 111-412-000-013-A1-B1-E010-F0-G000-H01
- Product Type: Proximity Measuring System
- Weight: 0.22 kg
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
Suffix Code Breakdown
- Environment (A1): Standard
- Body Thread (B1): M10 × 1
- Integral Cable Length (E010): 1.0 m ±100 mm
- Optional Protection (F0): None
- Flexible Hose Length (G000): None
- Total System Length (H01): 1 m
Key Features
- Non-contact eddy-current measurement system
- API 670 compliant for industrial reliability
- Temperature-compensated design ensures accuracy
- Voltage or current output, short-circuit protected
- Frequency range: DC to 20 kHz (−3 dB)
- Measurement range: 2 or 4 mm
- Operating temperature: −40°C to +180°C
- Ex-certified versions for hazardous zones
Applications
- Shaft vibration and gap/position monitoring
- Machinery protection and condition monitoring
- Compatible with VM600Mk2, VM600, and VibroSmart® systems
- Ideal for turbines, compressors, and rotating machinery
Technical Specifications
- Transducer Construction: Stainless steel body (AISI 316L) with Torlon tip
- Input: High-frequency signal from IQS900 conditioner
- Cable: FEP covered, 70 Ω coaxial, Ø3.6 mm
- Connectors: Self-locking miniature coaxial connectors
- Protection: IP68 rated sensor head
- Vibration Resistance: 5 g (10–500 Hz)
- Shock Resistance: 15 g, 11 ms half sine
- Optional Protection: Stainless steel hose or FEP sheath
Why Choose This Model
- Stable output under extreme temperature variation
- Low noise and drift characteristics
- Flexible configuration for diverse installations
- Trusted by global OEMs for reliability
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions
- Q1: What type of signal conditioner works with this probe?
- A1: It is designed for use with the IQS900 signal conditioner.
- Q2: Can it be used in hazardous environments?
- A2: Yes, Ex-certified versions are available for explosive areas.
- Q3: What is the protection rating of the sensor?
- A3: The transducer head is IP68 rated for maximum durability.
- Q4: What is the expected operating temperature range?
- A4: Operates reliably from −40°C up to +180°C.
- Q5: Is it compatible with other Meggitt vibration monitoring systems?
- A5: Yes, it integrates seamlessly with VM600Mk2, VM600, and VibroSmart® systems.
