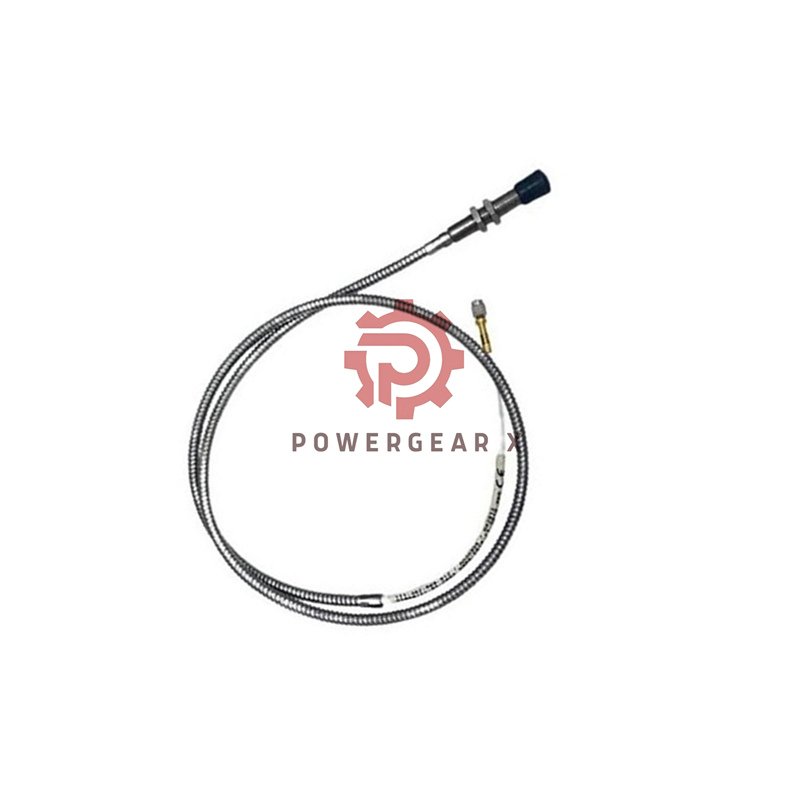

Meggitt Vibro-Meter 111-402-000-013-A2-B1-C030-D000-E010-F0-G000-H10 Proximity Measuring System

Meggitt Vibro-Meter Proximity Measuring System

Meggitt Vibro-Meter 111-402-000-013-A2-B1-C030-D000-E010-F0-G000-H10 is an explosion-proof proximity measuring system engineered for high-precision vibration and position detection in critical rotating machinery. Its Ex i certified design ensures safe operation in hazardous zones, while maintaining stable accuracy across extreme temperatures.

• Manufacturer: Meggitt (Vibro-Meter)
• Product No.: 111-402-000-013-A2-B1-C030-D000-E010-F0-G000-H10
• Product Type: Proximity Measuring System
• Weight: 0.22 kg
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Suffix Configuration Overview

• Environment (A2): Explosion-Proof Ex i Certified
• Body Thread (B1): M10 × 1
• Body Length (C030): 30 mm
• Unthreaded Length (D000): 0 mm minimum
• Integral Cable (E010): 1.0 m ±100 mm
• Protection (F0): None
• Flexible Hose (G000): None
• Total System Length (H10): 10 m

Product Highlights

• Explosion-proof Ex i version for hazardous zones
• API 670 compliant vibration monitoring
• Temperature-compensated for consistent accuracy
• Non-contact eddy-current sensing technology
• Output: Voltage or current, short-circuit protected
• Frequency range: DC to 20 kHz (−3 dB)
• Measurement range: 2 or 4 mm
• Temperature: −40°C to +180°C (operating)

Applications

• Machinery protection systems
• Condition monitoring for rotating shafts
• Used in turbines, compressors, and pumps
• Compatible with VM600Mk2, VM600, and VibroSmart®

Technical Specifications

• Input Power: High-frequency source from IQS900 conditioner
• Protection: IP68 rated transducer head
• Transducer Material: Stainless steel AISI 316L, Torlon tip
• Cable: FEP-coated 70 Ω coaxial, Ø3.6 mm
• Vibration Resistance: 5 g (10–500 Hz)
• Shock Resistance: 15 g, 11 ms half sine
• Optional Hose: Stainless steel, non-leak tight
• FEP Sheath: Chemically resistant and low permeability

Performance Advantages

• Certified for explosive atmosphere safety (Ex i)
• Stable performance under thermal stress
• Designed for continuous industrial operation
• Fast response time and low signal drift
• Reliable under vibration and shock conditions

Contact Information

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825

Frequently Asked Questions

• Q1: What makes this version explosion-proof?
• A1: It has Ex i intrinsic safety certification for explosive zones.
• Q2: What is the total system cable length?
• A2: This model includes a 10-meter total system length.
• Q3: Is it compatible with VM600 series systems?
• A3: Yes, it works with both VM600 and VibroSmart® systems.
• Q4: What materials are used for construction?
• A4: The sensor body is made from stainless steel (AISI 316L) with a Torlon tip.
• Q5: What are the shipping and warranty details?
• A5: Shipped via FedEx, UPS, or DHL with a 12-month warranty.
