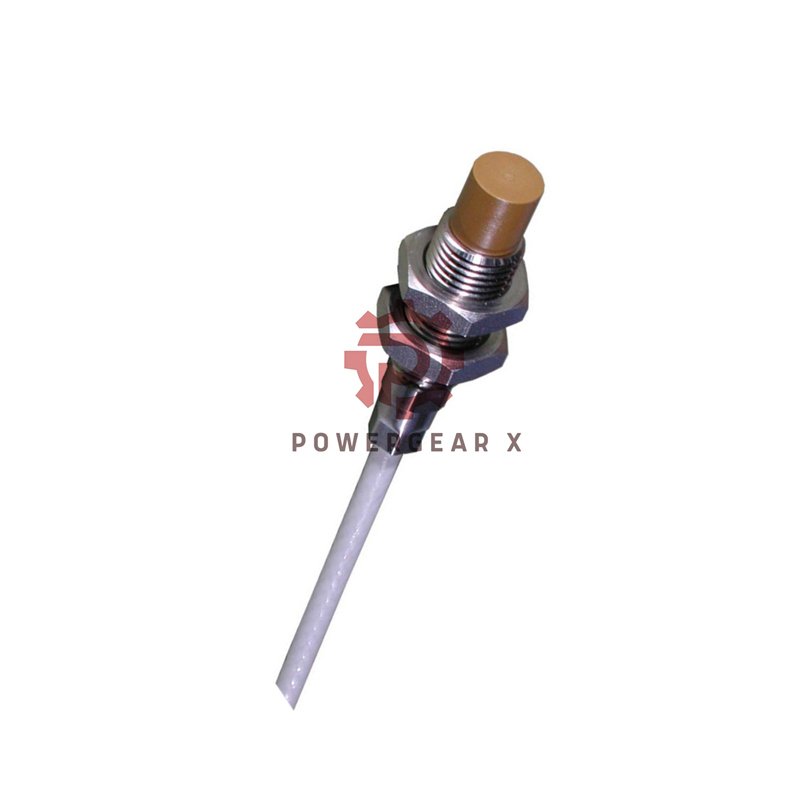

Meggitt Vibro-Meter 111-402-000-013-A1-B1-C180-D080-E050-F0-G000-H05 Proximity Measuring System

Meggitt Vibro-Meter Proximity Measuring System

Meggitt Vibro-Meter 111-402-000-013-A1-B1-C180-D080-E050-F0-G000-H05 is designed for precise shaft vibration and position measurement. This sensor provides reliable performance in high-temperature and high-vibration industrial environments.

• Manufacturer: Meggitt (Vibro-Meter)
• Product No.: 111-402-000-013-A1-B1-C180-D080-E050-F0-G000-H05
• Product Type: Proximity Measuring System
• Weight: 0.22 kg
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Suffix Breakdown

• A1: Standard environment
• B1: M10 × 1 thread
• C180: Body length 180 mm
• D080: Unthreaded section 80 mm
• E050: 5.0 m integral cable
• F0: No protection
• G000: No flexible hose
• H05: Total system length 5 m

Key Features

• Non-contact eddy-current technology
• API 670 compliant vibration probe
• Temperature-compensated design for stability
• IP68 protection rating for harsh conditions
• Frequency range: DC to 20 kHz (−3 dB)
• Measurement range: 2 or 4 mm
• Operating temperature: −40°C to +180°C
• Short-circuit protected output

Applications

• Rotating machinery protection and monitoring
• Used in turbines, compressors, and motors
• Supports VM600Mk2, VM600, and VibroSmart® systems
• Suitable for API 670 machinery vibration applications

Technical Details

• Input: High-frequency source from IQS900 conditioner
• Construction: Stainless steel AISI 316L with Torlon tip
• Cable: 70 Ω FEP-coated coaxial cable (Ø3.6 mm)
• Temperature Limits: −40°C to +220°C (short-term)
• Vibration Resistance: 5 g (10–500 Hz)
• Shock Resistance: 15 g, 11 ms half sine
• Optional Hose: Stainless steel (not leak-tight)
• Optional Sheath: FEP resistant to chemicals and moisture

Advantages

• Stable readings under temperature fluctuations
• Compact stainless steel construction
• High accuracy with minimal drift
• Fast installation with self-locking connectors
• Ideal for harsh industrial environments

Contact Information

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825

Frequently Asked Questions

• Q1: What is the total cable length of this system?
• A1: The total system length is 5 meters with an integral 5.0 m cable.
• Q2: What temperature range can it handle?
• A2: It operates from −40°C to +180°C and can survive up to +220°C briefly.
• Q3: Can it be used in hazardous areas?
• A3: This version (A1) is for standard environments; Ex i versions are available separately.
• Q4: How is the cable protected?
• A4: The cable is FEP coated for high resistance to heat, chemicals, and wear.
• Q5: Is this product API 670 compliant?
• A5: Yes, it fully meets API 670 vibration measurement standards.
