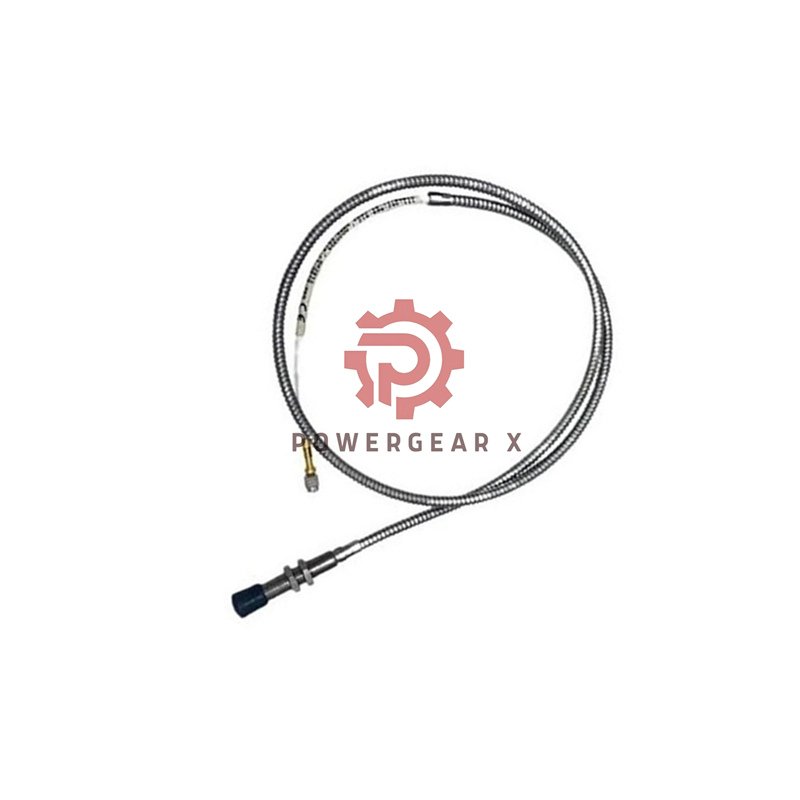

Meggitt Vibro-Meter 111-402-000-013-A1-B1-C075-D000-E010-F0-G000-H05 Proximity Sensor

Meggitt Vibro-Meter 111-402-000-013 Proximity Measuring System

The 111-402-000-013-A1-B1-C075-D000-E010-F0-G000-H05 proximity sensor delivers reliable non-contact eddy-current measurement for rotating machinery. It meets API 670 standards and ensures accurate vibration and position monitoring. Each unit includes a 12-month warranty.

Main Advantages

• Accurate non-contact eddy-current measurement for rotating parts.
• Wide frequency response: DC to 20 kHz (−3 dB).
• Measurement range: 2 mm or 4 mm.
• Temperature range: −40 to +180 °C operating, +220 °C short-term.
• IP68-rated tip and cable for harsh industrial use.
• Compatible with VM600Mk2, VM600, and VibroSmart® systems.
• Short-circuit protected voltage or current output.
• FEP cable resists chemicals, oil, and moisture.

Expanded Technical Data

• Brand: Meggitt (Vibro-Meter)
• Model: 111-402-000-013-A1-B1-C075-D000-E010-F0-G000-H05
• Body thread: M10 × 1
• Body length: 75 mm
• Unthreaded length: 0 mm
• Cable: 1.0 m ±100 mm, FEP-coated, 70 Ω coaxial
• Material: Stainless steel AISI 316L, Torlon tip
• Weight: 0.22 kg
• Shock: 15 g, 11 ms (IEC 60068-2-27)
• Vibration: 5 g, 10–500 Hz (IEC 60068-2-26)
• Input source: IQS900 signal conditioner
• Cable rating: −40 to +200 °C
• Output: Voltage or current signal, short-circuit safe

Suffix Configuration Tree

• 111-402-000-013
  • A1 – Environment: Standard
  • B1 – Thread: M10 × 1
  • C075 – Body length: 75 mm
  • D000 – Unthreaded length: 0 mm
  • E010 – Cable length: 1.0 m ±100 mm
  • F0 – Protection: None
  • G000 – Flexible hose: None
  • H05 – Total system length: 5 m

Product Highlights

• Fast, stable signal for high-speed shaft movement detection.
• Low temperature drift for consistent readings across environments.
• Simple installation using self-locking connectors.
• Ideal for critical turbine, compressor, and pump monitoring.
• Conforms to API 670 for reliability and safety.

Installation & Shipping

• Mount the probe perpendicular to the shaft.
• Hand-tighten connectors until locked.
• Use the IQS900 signal conditioner for setup.
• Ships globally via FedEx, UPS, or DHL.
• Includes installation guide and 12-month warranty card.

FAQ

• Can I use this with other systems?
  Yes, it works with VM600Mk2, VM600, and VibroSmart®.
• What is the sensor body made of?
  It uses AISI 316L stainless steel with a Torlon tip for strength.
• What frequency response can I expect?
  DC to 20 kHz, ideal for dynamic machinery signals.
• How should the probe be installed?
  Mount firmly with precise alignment and avoid loose fitting.
• What is the standard warranty period?
  All units come with a 12-month warranty.
