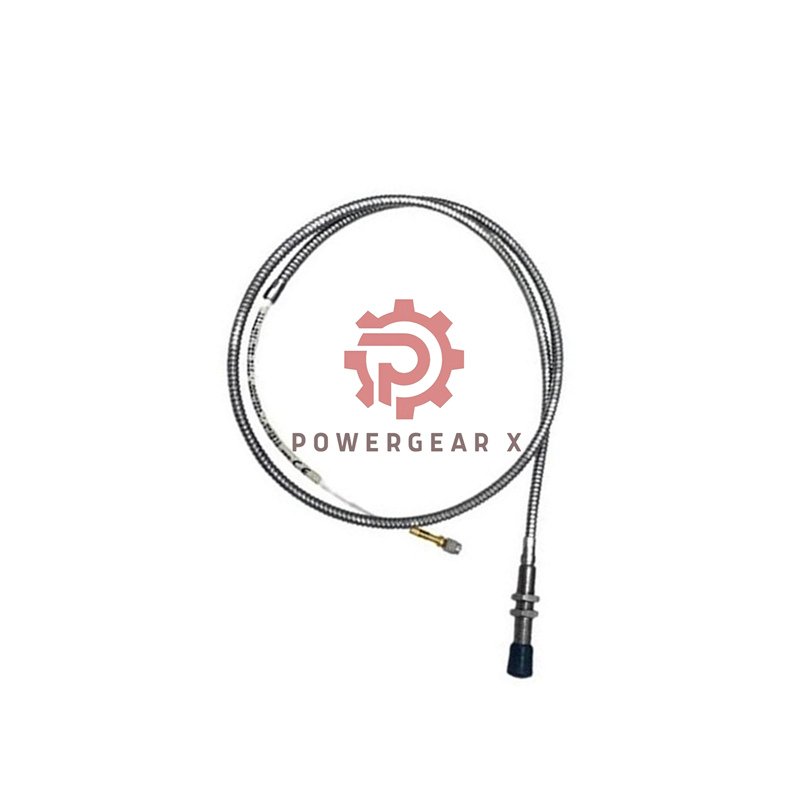

Meggitt Vibro-Meter 111-402-000-013-A1-B1-C072-D000-E050-F0-G000-H01 Proximity Measuring System

Meggitt (Vibro-Meter) Proximity Measuring System

• Manufacturer: Meggitt (Vibro-Meter)
• Model: 111-402-000-013-A1-B1-C072-D000-E050-F0-G000-H01
• Product Type: Proximity Measuring System
• Weight: 0.22 kg
• Warranty: 12 months from delivery

Highlights

• Measures shaft vibration and position without contact.
• API 670 compliant and Ex certified for hazardous areas.
• Fast DC to 20 kHz frequency response.
• Selectable range 2 mm or 4 mm for flexible setups.
• Temperature operation from −40°C to +180°C, short-term to +220°C.
• Compact stainless steel body (AISI 316L) with Torlon tip.
• Resists vibration 5 g peak and shock 15 g peak.
• Rated IP68 for dust and water protection.

Technical Data

• Excitation Source: IQS900 signal conditioner
• Coil Diameter: 8 mm
• Cable Type: 70 Ω FEP coaxial, Ø3.6 mm
• Body Thread: M10 × 1
• Body Length: 72 mm
• Unthreaded Length: 0 mm
• Integral Cable Length: 5.0 m ±500 mm
• Optional Protection: None
• Flexible Hose Length: None
• Total System Length: 1 m
• Temperature Zone for Ex Use: up to +195°C
• Connector: Self-locking miniature coax type

Model Breakdown (Tree Structure)

• 111-402-000-013 — Base Part Number
  • A1 — Standard Environment
  • B1 — Body Thread: M10 × 1
  • C072 — Body Length: 72 mm
  • D000 — Unthreaded Length: 0 mm
  • E050 — Integral Cable Length: 5.0 m ±500 mm
  • F0 — Optional Protection: None
  • G000 — Flexible Hose: None
  • H01 — Total System Length: 1 m

Product Advantages

• High temperature tolerance for turbine and compressor environments.
• Stable readings across full bandwidth without signal loss.
• Excellent linearity and repeatability under dynamic load.
• Easy connection with self-locking coax connectors—no tools needed.
• Flexible mounting using standard M10 × 1 threads.
• Perfect match with Meggitt’s VM600 and VibroSmart® systems.

Shipping and Warranty

• Standard global delivery through FedEx, UPS, or DHL.
• All units are securely packed for shock and moisture protection.
• 12-month factory warranty from shipment date.

FAQ

• Can this sensor be used in high-vibration zones?
  Yes, it withstands 5 g vibration and 15 g shock without performance loss.
• Is this model suitable for high-speed turbines?
  Yes, it operates up to 20 kHz response, perfect for fast shaft rotation.
• Does it need a special power supply?
  It requires a high-frequency drive from an IQS900 conditioner.
• Can I use this probe outdoors?
  Yes, its IP68 rating protects it from dust and water exposure.
• Is the cable resistant to chemicals?
  Yes, the FEP insulation resists oils, solvents, and industrial fluids.
