Product details

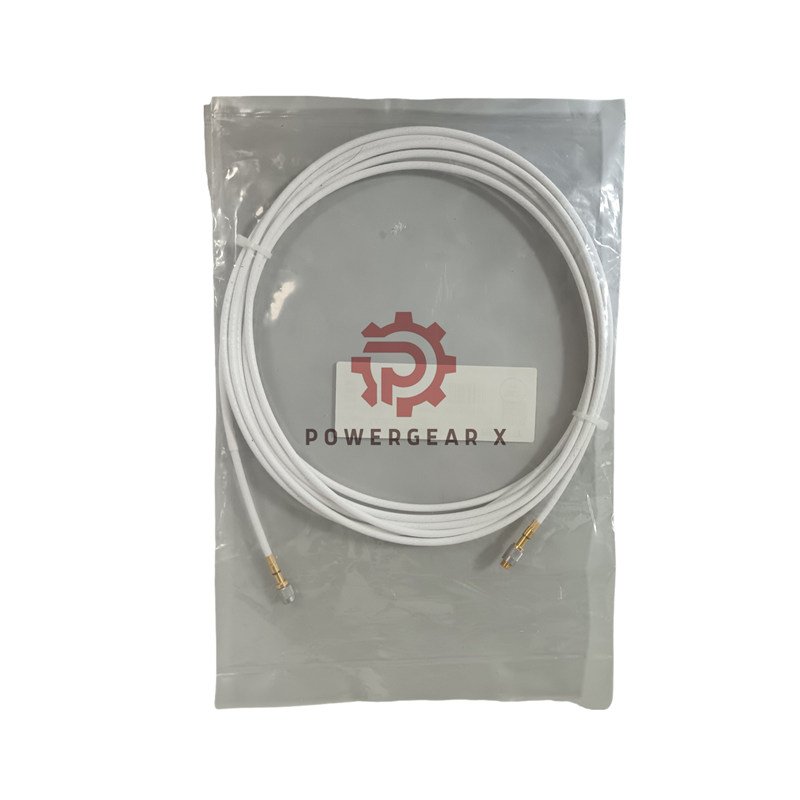

Meggitt Vibro-Meter 913-402-000-013 Proximity Measuring System
- Manufacturer: Meggitt (Vibro-Meter)
- Product No.: 913-402-000-013/A1-E095-F0-G000
- Type: Proximity Measuring System
- Weight: 0.22 kg
Suffix Breakdown
- Environment (A): 1 – Standard
- Extension Cable (E): 095 – 9.5 m ±950 mm
- Optional Protection (F): 0 – No cable, no connector
- Flexible Hose (G): 000 – None
Technical Highlights
- High-frequency power input from IQS900 signal conditioner
- Temperature range: −40°C to +180°C (drift <5%), up to +220°C short term
- IP68 protection for probe head and cable assembly
- Shock resistance: 15 g peak (IEC 60068-2-27)
- Vibration resistance: 5 g peak from 10–500 Hz
- Material: Stainless steel AISI 316L body with Torlon tip
- Cable: 70 Ω coaxial FEP-covered cable, Ø3.6 mm
- Connectors: Self-locking miniature coaxial type
- Optional protection: Stainless steel hose or FEP sheath
Performance Features
- Eddy-current based non-contact vibration measurement
- API 670 compliant and Ex-certified for hazardous zones
- Frequency response: DC to 20 kHz (−3 dB)
- Measurement range: 2 mm or 4 mm
- Temperature-compensated signal for stable accuracy
- Voltage or current output with short-circuit protection
Applications
- Shaft relative vibration and position monitoring
- Machinery protection and condition monitoring systems
- Compatible with VM600, VM600Mk2, and VibroSmart® platforms
- Ideal for turbines, compressors, and rotating machinery
- Used in API 670 compliant setups
Installation Details
- Mount using two M4 screws (without DIN rail adapter)
- Ensure connector hand-tightening for secure locking
- Maintain minimal cable bending radius for long-term reliability
- Operate within rated temperature and vibration limits
- Verify IQS900 signal conditioner compatibility
Warranty & Shipping
- Warranty: 12 months from shipment date
- Global delivery via FedEx, UPS, or DHL with full tracking
- All items packed in factory-sealed boxes for protection
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q: What is the operating temperature range of the 913-402-000-013?
A: It operates from −40°C to +180°C, with short-term survival up to +220°C. - Q: Can this model be used in explosive environments?
A: Yes, Ex-certified versions are available for hazardous areas. - Q: What protection rating does this sensor have?
A: The probe head is rated IP68 according to IEC 60529. - Q: Which systems are compatible with the 913-402-000-013?
A: It works with VM600, VM600Mk2, and VibroSmart® monitoring systems. - Q: What cable options are available for this proximity measuring system?
A: It includes a 9.5 m FEP-covered coaxial cable with optional stainless steel hose.
