Meggitt 913-402-000-012/A1-E090-F1-G088 Proximity Sensor

Meggitt 913-402-000-012/A1-E090-F1-G088 Proximity Measuring System Specifications

• Manufacturer: Meggitt (Vibro-Meter)
• Product No.: 913-402-000-012/A1-E090-F1-G088
• Product Type: Proximity Measuring System
• Weight: 0.22 kg

Model Configuration Tree

• A1 → Standard environment
• E090 → 9.0 m ±900 mm extension cable
• F1 → Flexible hose, no connector
• G088 → 8.8 m flexible hose length

Core Technical Data

• Transducer Input: High-frequency power from IQS900 conditioner
• Temperature Range: −40°C to +180°C (operating), +220°C (short-term)
• Ex Zone Limit: −40°C to +195°C
• Protection Rating: IP68 (transducer head)
• Vibration Resistance: 5 g, 10–500 Hz
• Shock Resistance: 15 g, 11 ms duration
• Frequency Response: DC to 20 kHz (−3 dB)
• Measurement Range: 2 mm or 4 mm

Construction & Materials

• Ø8 mm wire coil transducer with Torlon tip
• Encapsulated stainless steel body (AISI 316L)

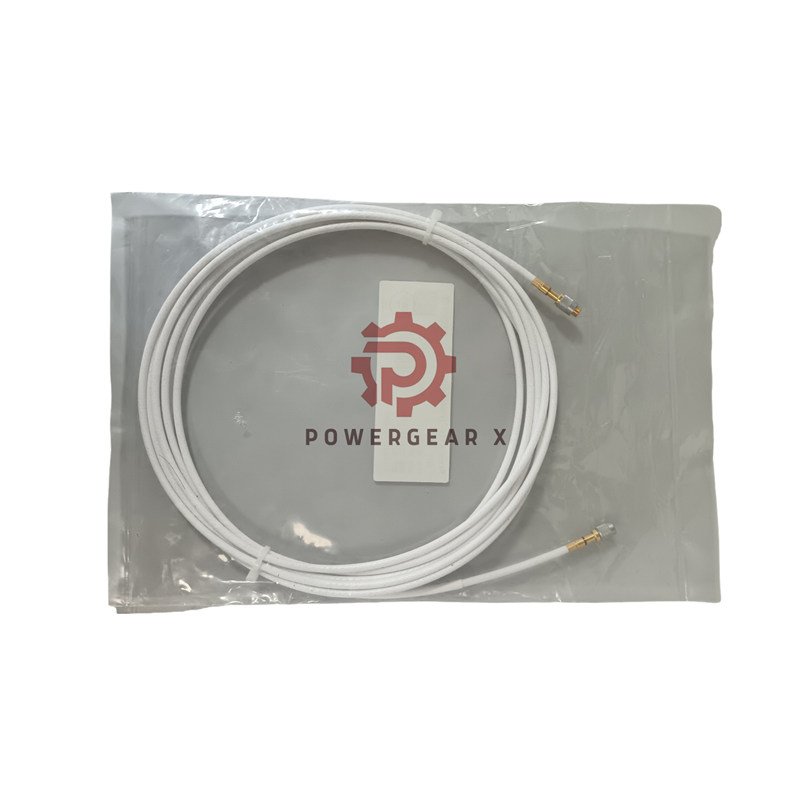

• FEP-coated coaxial cable, 70 Ω, Ø3.6 mm
• Self-locking miniature coaxial connectors
• Optional stainless-steel hose for added protection
• FEP sheath for chemical and moisture resistance

Performance Highlights

• Non-contact eddy-current sensing for high accuracy
• Temperature-compensated for stable long-term output
• Fully compliant with API 670 vibration monitoring standards
• Durable structure for harsh industrial environments
• Available in 1 m, 5 m, and 10 m system variants

Environmental Tolerance

• Withstands heat, moisture, and vibration
• FEP sheath ensures low friction and chemical durability
• Shock tested to IEC 60068-2-27 standards

Applications

• Shaft vibration and position monitoring
• Gap measurement in rotating machinery
• Condition monitoring and machinery protection
• Use with VM600Mk2, VM600, and VibroSmart® systems
• Ideal for API 670-compliant installations

Mounting Details

• Uses two M4 screws without DIN-rail adaptor
• Hand-tighten connectors until locked

Warranty & Delivery

• Warranty: 12 months from shipment date
• Shipping: FedEx, UPS, DHL global service

Professional FAQs

• Q1: What is the typical temperature limit for the sensor?
• A: It operates up to +180°C and can briefly withstand +220°C.
• Q2: Can this system be used in explosive environments?
• A: Yes, Ex-certified versions are available for hazardous zones.
• Q3: How does the FEP sheath protect the cable?
• A: It resists chemicals and moisture while maintaining flexibility.
• Q4: What output range does it support?
• A: The proximity system provides DC to 20 kHz response and 2–4 mm range.
• Q5: How can I order or get technical assistance?
• A: Contact us at sales@powergearx.com or message via
  WhatsApp.
