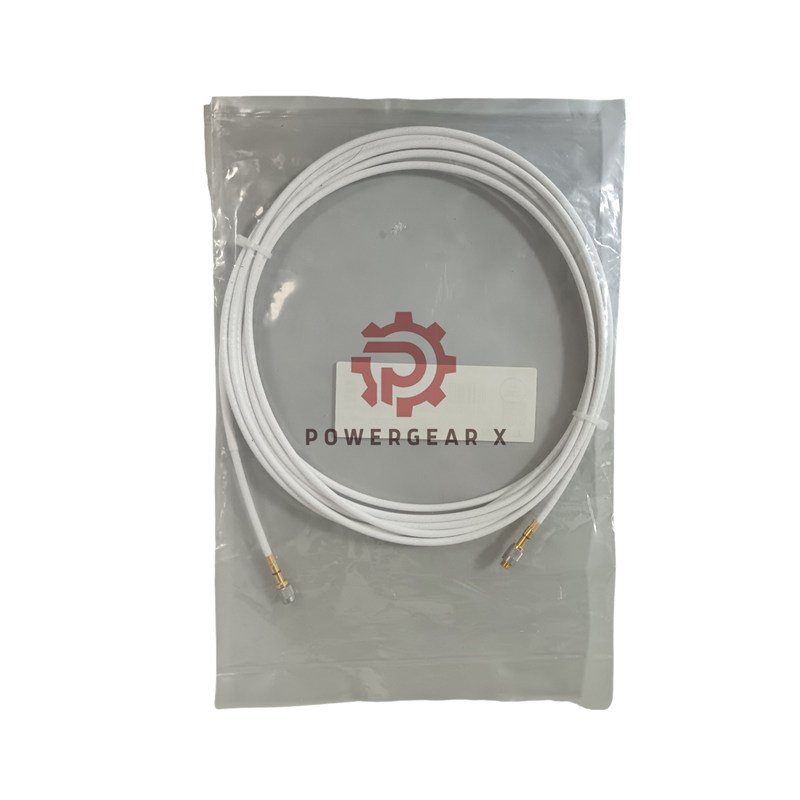

Meggitt 913-402-000-012/A1-E040-F0-G000 | Proximity Measuring System

Meggitt 913-402-000-012/A1-E040-F0-G000 Proximity Measuring System

The Meggitt 913-402-000-012 from the Vibro-Meter® line is a high-performance eddy-current proximity measuring system. It offers reliable non-contact shaft monitoring with high temperature resistance and API 670 compliance.

Model & Suffix Structure

• Model: 913-402-000-012
• Environment (A): 1 = Standard
• Extension Cable (E): 040 = 4.0 m ±400 mm
• Optional Protection (F): 0 = None Cable, None Connector
• Flexible Hose (G): 00 = None

General Specifications

• Weight: 0.22 kg
• Transducer Input: High-frequency power source from IQS900 signal conditioner
• Construction: Ø8 mm Torlon tip with stainless steel AISI 316L body
• Cable: 70 Ω coaxial FEP-covered, Ø3.6 mm
• Connectors: Miniature self-locking coaxial connectors

Environmental Ratings

• Operating Temperature: −40°C to +180°C (drift <5%)
• Short-Term Survival: +220°C
• Protection: IP68 transducer head rating
• Vibration Resistance: 5 g peak (10–500 Hz)
• Shock Resistance: 15 g peak, 11 ms half sine-wave

Performance Characteristics

• Measurement Principle: Eddy-current, non-contact
• Measurement Range: 2 or 4 mm
• Frequency Response: DC to 20 kHz (−3 dB)
• Temperature Drift: <5% within standard range
• Compliance: Meets API 670 recommendations

Optional Protections

• Flexible Stainless Hose: Provides mechanical protection (non-leak-tight)
• FEP Sheath: Resistant to chemicals and moisture; durable and low friction

Key Features & Benefits

• Certified for hazardous zones with Ex-rated versions.
• Temperature-compensated for stable long-term performance.
• Durable stainless-steel body and epoxy-sealed construction.
• Compatible with VM600 and VibroSmart® systems.
• Ideal for machinery condition monitoring and protection.

Applications

• Shaft vibration and displacement measurement
• Condition monitoring for turbines, compressors, and pumps
• API 670 compliant protection systems
• High-temperature and hazardous area installations

Packaging & Delivery

• Includes one 913-402-000-012/A1-E040-F0-G000 proximity system
• Ships worldwide via FedEx, UPS, or DHL
• Warranty: 12 months coverage

FAQ

• Q: What is the maximum temperature the probe can handle?
• A: It operates up to +180°C and can survive short-term up to +220°C.
• Q: Can the Meggitt 913-402-000-012 be used in Ex zones?
• A: Yes, Ex-certified versions are available for hazardous areas.
• Q: Does the system follow API 670 standards?
• A: Yes, it fully complies with API 670 for vibration monitoring.
• Q: What is the cable type used?
• A: A 70 Ω FEP-covered coaxial cable with a diameter of 3.6 mm.
• Q: How is it mounted?
• A: Use two M4 screws for mounting without a DIN-rail adapter.
