Low Frequency Trendmaster Pro Accelerometer 200155-23-05

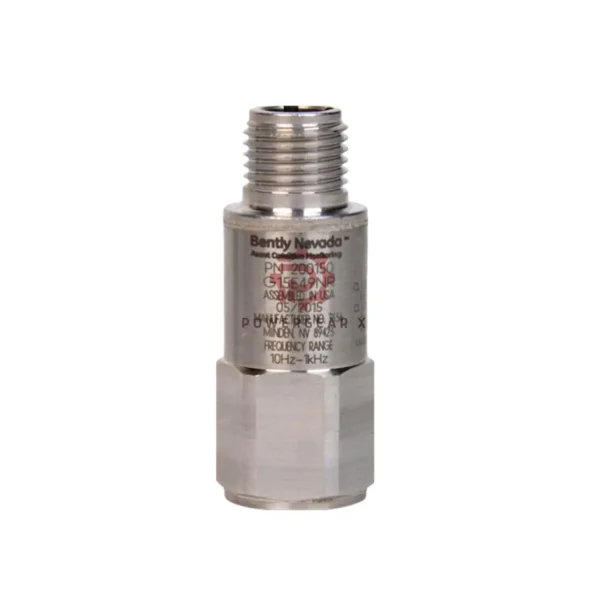

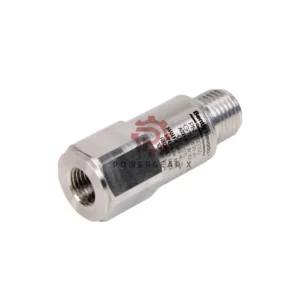

Bently Nevada 200155-23-05 Low Frequency Accelerometer

Product Overview

The Bently Nevada 200155-23-05 is a low frequency accelerometer for use with Trendmaster Pro systems. It is ideal for monitoring slow-speed equipment like fin fans and gearboxes.

Key Features

• Model: 200155-23-05
• Mounting Stud: 3/8-24 to M16x2.0, 1-3/8 inch hex plate
• Sensor Type: Ceramic shear sensing
• Construction: 316L stainless steel
• Country of Origin: USA

Electrical Specifications

• Sensitivity: 10.2 mV/(m/s²) or 100 mV/g at 80 Hz
• Measurement Range: ±196 m/s² (±20 g)
• Frequency Range: 1.5 Hz to 10,000 Hz (90 to 600,000 cpm)
• Bias Voltage: +2.5 VDC ±0.23
• Excitation Voltage: 4.7 to 5.5 VDC
• Quiescent Current: Less than 800 µA
• Settling Time: ≤2000 ms

Environmental Conditions

• Operating Temperature: -40°C to +105°C
• Storage Temperature: -55°C to +121°C
• Shock Limit: 49,050 m/s² (5000 g peak)
• Humidity: 100% condensing (non-submerged)
• Sealing: Hermetic, 5×10⁻⁸ atm·cc/s

Model Suffix Tree

• 200155 = Trendmaster Pro Accelerometer
• -23 = 3/8-24 to M16x2.0 adapter (1-3/8 inch hex)
• -05 = ProTIM Acceleration-to-Velocity conversion type
