Low Frequency Trendmaster Pro Accelerometer 200155-20-05

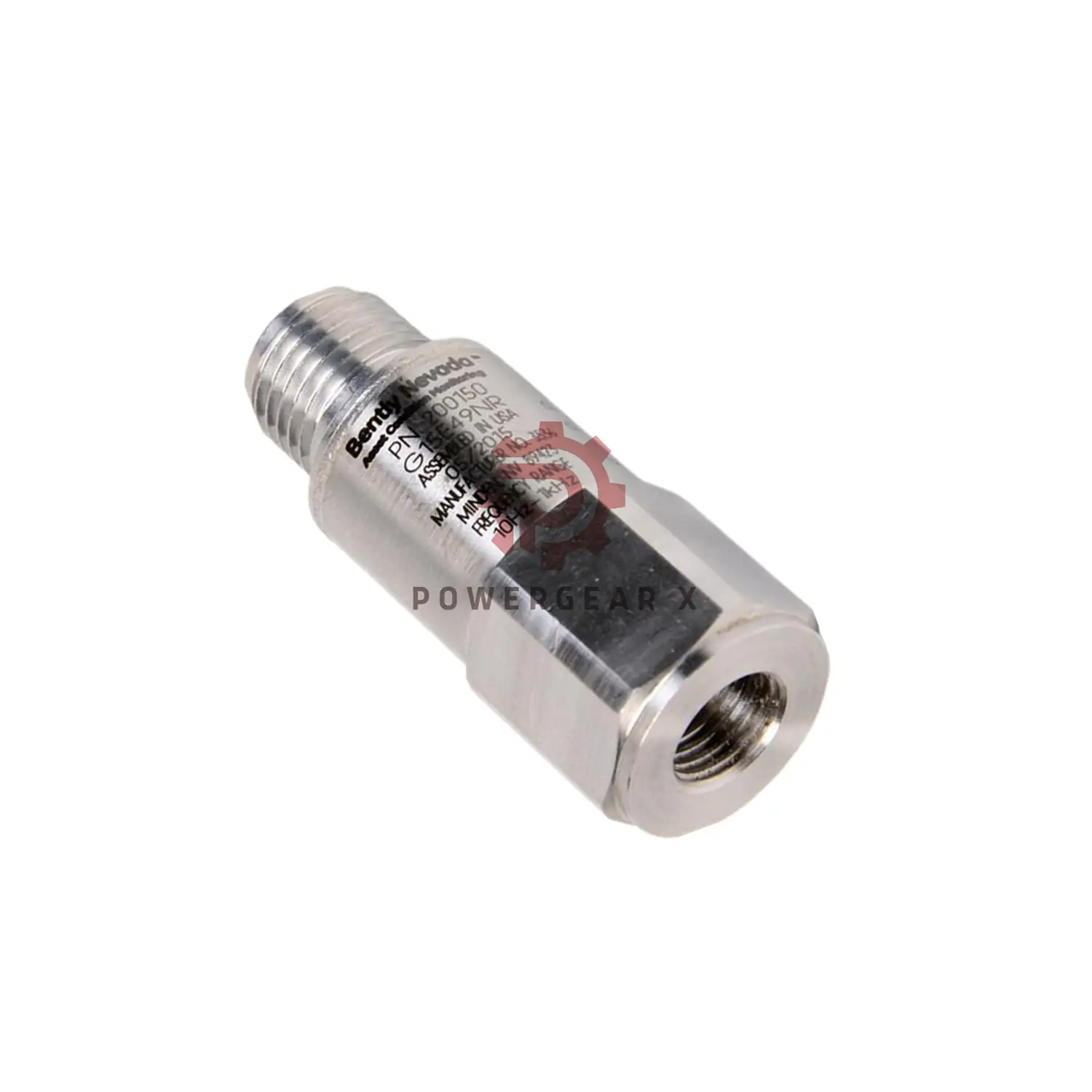

Bently Nevada 200155-20-05 Low Frequency Accelerometer

Product Overview

The 200155-20-05 is a low-frequency sensor. It is used with Trendmaster Pro. It connects through a magnetic mount. This model is made for slow-speed fans and shafts.

Main Features

• Range: ±196 m/s² (±20 g)
• Sensitivity: 10.2 mV/(m/s²)
• Output: +2.5 VDC (±0.23)
• Response: 1.5 to 10,000 Hz
• Fast mount with magnet base

Electrical Specs

• Voltage: 4.7 to 5.5 VDC
• Current: <800 µA
• Polarity: SIG+ to SIG-
• Settle Time: ≤2000 ms
• Linearity: ±2%
• Cross Axis Error: ≤7%

Environmental Limits

• Work Temp: -40°C to +105°C
• Store Temp: -55°C to +121°C
• Shock Limit: 49,050 m/s²
• Humidity: 100%, non-submerged
• Seal: Hermetic

Mount Option

• Option 20: Magnetic mount, 3/8-24 thread

Typical Uses

• Fin fans
• Cooling towers
• Gearboxes
• Rotating machinery

Install Guide

• Mount using the magnetic base
• Use with Trendmaster Pro (-05 channel)
