Product details

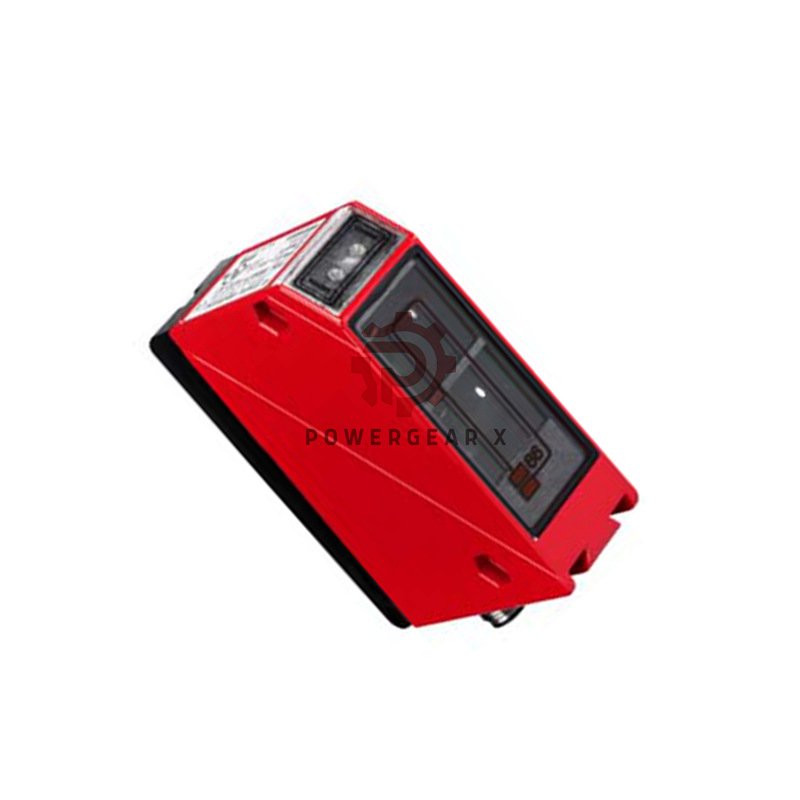

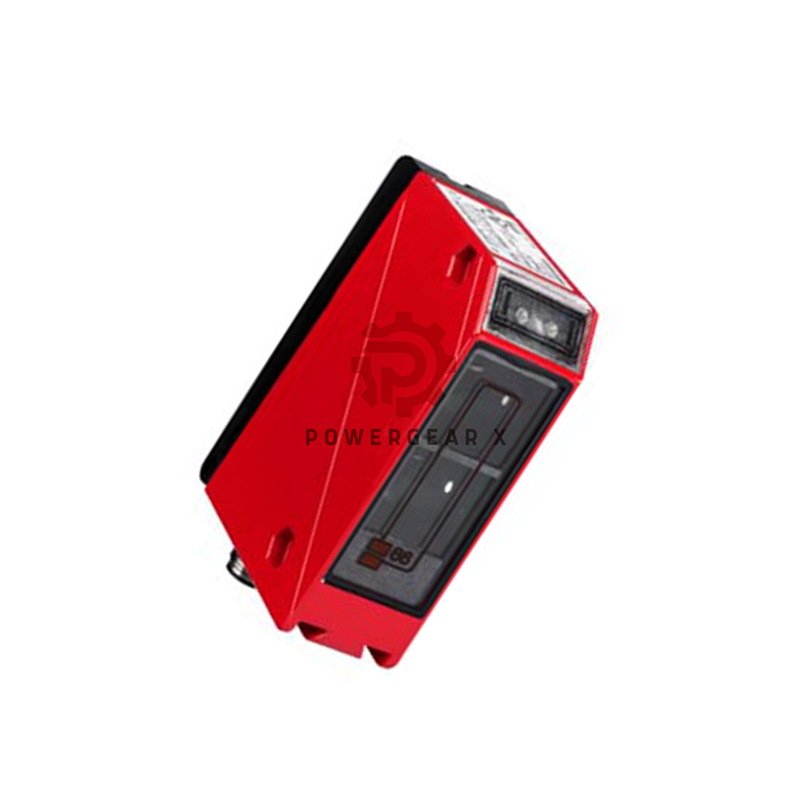

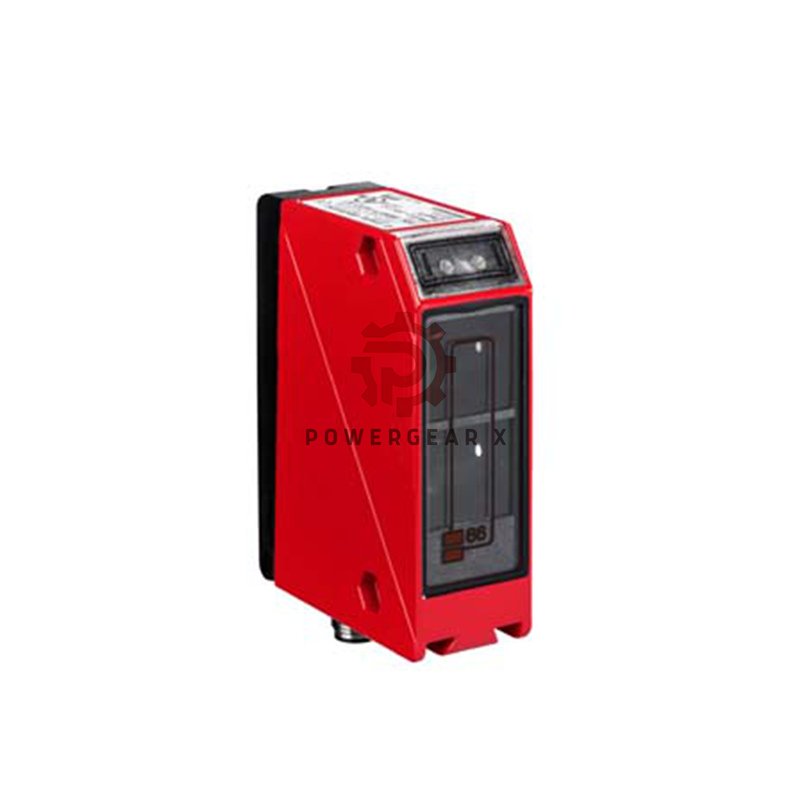

Leuze PRK 96M/A-3410-44 — 96 Series Photoelectric Sensor
The Leuze PRK 96M/A-3410-44 is a high-performance polarized retro-reflective sensor built for industrial automation. It combines precise detection, durable metal construction, and reliable performance under harsh conditions.
- Series: 96 Series Retro-Reflective
- Operating Range: 0.3–15 m guaranteed, 0.1–18 m typical
- Light Source: LED, Red visible beam
- Switching Frequency: 1,000 Hz fast response
- Interface: AS-Interface IO for direct integration
Technical Specifications
- Supply Voltage: 26.5–31.6 V DC
- Connection: M12, 4-pin, A-coded
- Housing Material: Zinc metal body with glass lens cover
- Dimensions (W×H×L): 30 × 90 × 70 mm
- Net Weight: 380 g
- Protection Rating: IP67, dust and water resistant
- Operating Temperature: -40 °C to +55 °C
- Protection Class: II
- Display: LED indicator with 270° potentiometer
- Compliance: IEC 60947-5-2, cULus approved
Performance & Benefits
- Fast 1,000 Hz switching for dynamic detection
- Sturdy zinc housing resists impact and vibration
- Simple alignment using visible red LED beam
- Easy sensitivity adjustment with 270° potentiometer
- ECOLAB certified for cleaning and hygiene applications
- Reliable detection even in humid or dusty environments
Applications
- Packaging and labeling systems
- Food and beverage machinery
- Conveyor and assembly automation
- Material transport lines
- Machine tools and robotics
Packaging & Delivery
- 1 × Leuze PRK 96M/A-3410-44 photoelectric sensor
- 1 × Quick installation manual
- 1 × Mounting hardware set
- Ships via FedEx, UPS, or DHL
- Warranty: 12 months from shipment date
Professional FAQ
- Q: How can I ensure stable performance under strong light?
A: Adjust the sensitivity using the potentiometer and use proper reflectors to minimize ambient light interference. - Q: Can this sensor handle washdown conditions?
A: Yes, the IP67 rating and ECOLAB-approved materials resist cleaning agents and moisture. - Q: What type of connector cable should I use?
A: Use an M12 A-coded 4-pin cable with metal lock for secure, vibration-proof connection. - Q: Is it suitable for high-speed conveyor detection?
A: Yes, its 1,000 Hz response allows accurate sensing on fast-moving lines. - Q: Can I install it in cold storage areas?
A: Yes, it operates safely down to -40 °C without losing performance.
