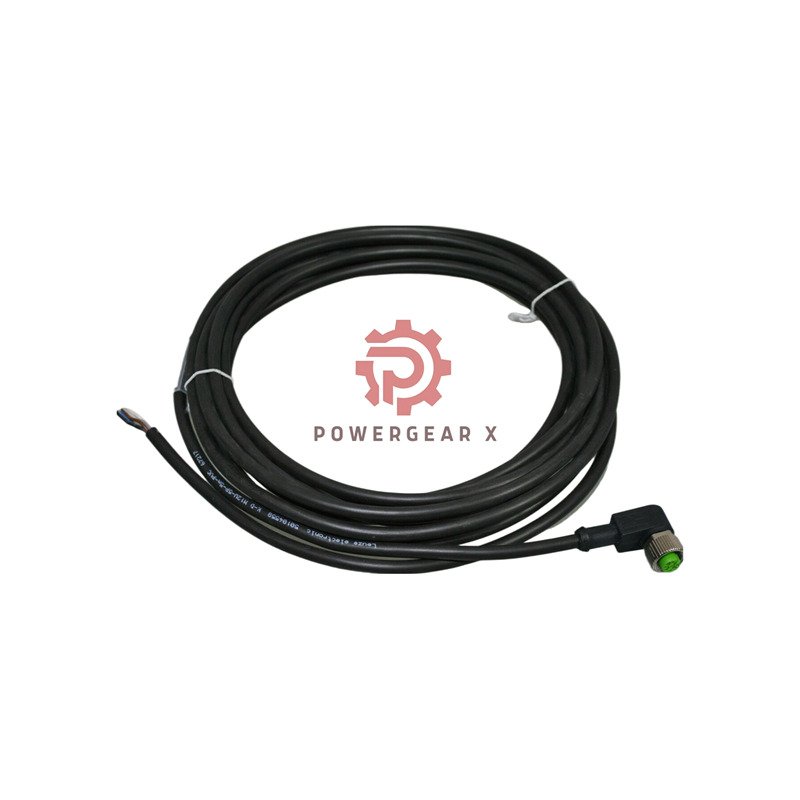

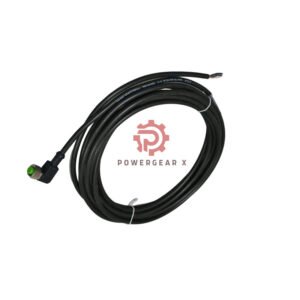

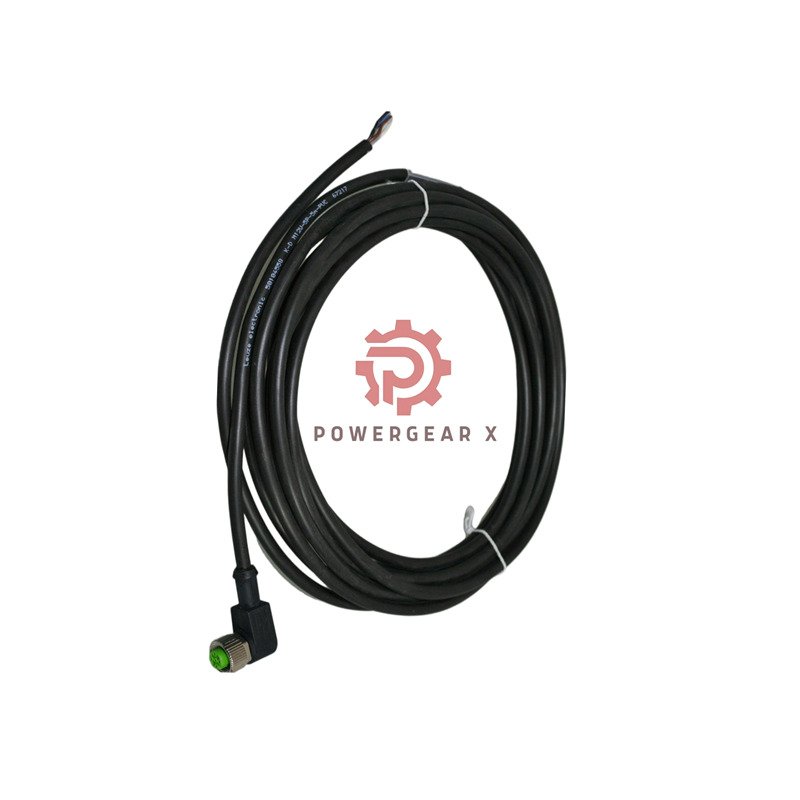

Leuze K-D M12W-4P-5M-PVC Right-Angle 4-Pin Sensor Cable

Leuze K-D M12W-4P-5M-PVC Connection Cable

The Leuze K-D M12W-4P-5M-PVC offers secure and stable signal transmission for industrial sensors.
It features a right-angle M12W connector, 4-pin design, and a flexible 5-meter PVC cable, making it perfect for factory automation and motion control.
Built by Powergear X Automation for long-term reliability.

Core Electrical Specifications

• Rated Voltage: ≤250 VAC/DC
• Rated Current: ≤4 A per contact
• Insulation Category: I, compliant with IEC 60664-1
• Pin Configuration: 4-pin (M12W angled)
• Contact Resistance: ≤5 mΩ
• Dielectric Strength: ≥1.5 kV

Mechanical & Cable Details

• Conductor Cross-section: 0.34 mm²
• Cable Diameter: 4.7 – 5.7 mm
• Bending Radius: ≥10 × cable diameter
• Locking Mechanism: Screw, self-locking (Torque 0.6 Nm)
• Cable Length: 5 meters
• Outer Jacket: Black PVC, oil and abrasion-resistant

Environmental Endurance

• Fixed Installation: -30°C to +70°C
• Flexible Operation: -5°C to +70°C
• Ingress Protection: IP67 when fully mated
• Shock Resistance: 50 m/s² per IEC 60068-2-27

Type Code Breakdown

• K-D: Connection cable with connector
  • M12W: M12 right-angle connector
    • 4P: Four-pin configuration
      • 5M: Cable length of 5 meters
        • PVC: Polyvinyl chloride sheath

Product Highlights

• Flexible 5-meter design ideal for longer reach
• Right-angle M12W plug for compact installation spaces
• High vibration resistance for moving equipment
• Corrosion-protected metal housing with nickel coating
• Low signal loss and fast assembly time

Warranty & Shipping

• Includes 12-month warranty from Powergear X Automation
• Worldwide delivery via
  FedEx,
  UPS, and
  DHL

FAQ

• Q: What’s the main benefit of a 5m version?
  A: It allows flexible positioning for large machines and long-distance sensors.
• Q: Can this cable handle both analog and digital signals?
  A: Yes, the 4-pin layout supports mixed signal transmission with minimal interference.
• Q: Is it suitable for outdoor use?
  A: It’s IP67 rated, so short-term outdoor use is fine if properly sealed.
• Q: How often should connectors be checked?
  A: Inspect connections every 6 months for wear or debris.
• Q: Where can I get installation support?
  A: Email sales@powergearx.com or WhatsApp +86 18030005825.
