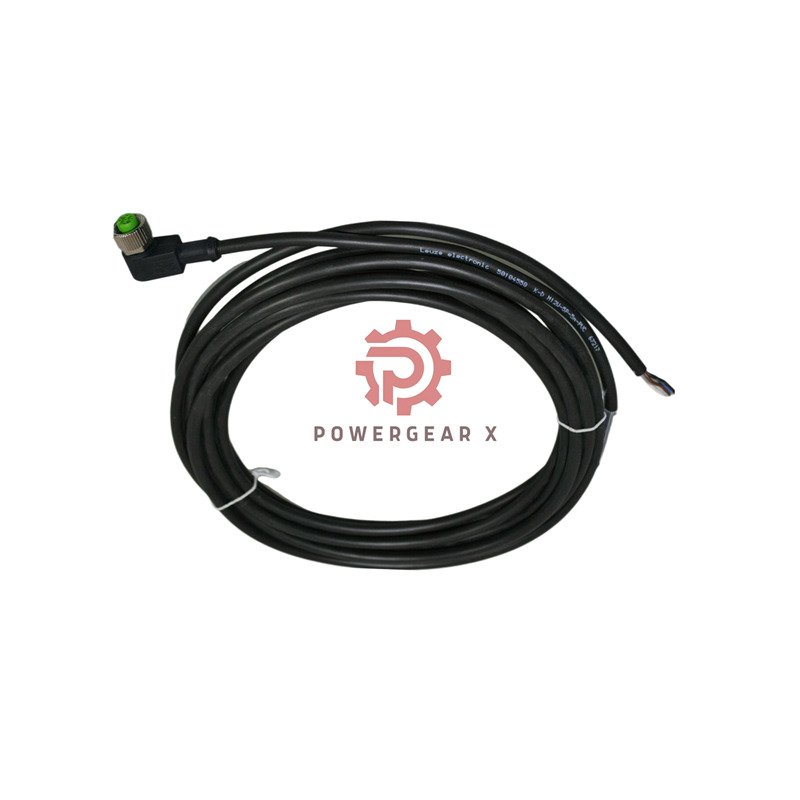

Leuze K-D M12W-3P-5m-PVC Connection Cable Overview

The Leuze K-D M12W-3P-5m-PVC connection cable provides stable and secure sensor connections for automation systems. Designed for durability and high signal quality, this cable is perfect for sensors, controllers, and machine wiring applications.

Authored by Powergear X Automation

Product Highlights

• 3-pin angled M12 connector for reliable connection.
• Durable PVC sheath for mechanical and thermal protection.
• Nickel-plated metal lock body with self-locking screw fitting.
• Safe operation under ≤250V AC/DC with 4A current per contact.
• Available in lengths up to 5 meters.
• 12-month product warranty.

Electrical Data

• M8 Cable: ≤60 VAC/DC, ≤4A per contact
• M12 Cable (3/4-pin): ≤250 VAC/DC
• M12 Cable (5-pin): ≤125 VAC/DC
• Insulation Category: I (IEC 60664-1)
• Operating Current: up to 4A per contact

Mechanical Details

• Body: PVC, black
• Lock: Diecast zinc, nickel-plated
• Torque: 0.6 Nm (self-locking)
• Conductor Cross-Section: 0.34 mm²
• Sheath Diameter: 4.7–5.7 mm
• Bending Radius: ≥10× sheath diameter

Environmental Data

• Fixed Installation: -30°C to +70°C
• Flexible Installation: -5°C to +70°C
• Material: PVC (black), TPU handle
• Protection: Resistant to oil and moisture

Tree-Structured Type Code

• K-D → Connection cable with connector
• M12W → M12 connector, angled socket
• -3P → 3 pins
• -5m → Cable length: 5 meters
• -PVC → Cable material: PVC

Performance Features

• Stable transmission for automation signals.
• High mechanical strength for motion and bending.
• Corrosion-resistant metal connector housing.
• Flexible for fixed and dynamic wiring setups.
• Tested to industrial standards for vibration safety.
• Global delivery via FedEx, UPS, and DHL.

Product Advantages

• Fast and easy installation with angled connector design.
• Low resistance and signal loss for consistent data flow.
• Ideal for factory automation, sensors, and field equipment.
• Available in different pin configurations and cable lengths.
• Backed by a 12-month factory warranty.

FAQ

• Q: Can this cable be used for sensors in high-vibration machines?
  A: Yes, its metal lock and PVC sheath resist vibration and strain.
• Q: What’s the recommended torque when installing?
  A: 0.6 Nm for best connection stability.
• Q: How flexible is the cable in motion applications?
  A: It’s tested for bending radius ≥10× sheath diameter, very flexible for motion use.
• Q: Can it work outdoors?
  A: It can, but better protected from direct sunlight or extreme humidity.
• Q: How can I get installation support?
  A: Contact sales@powergearx.com or WhatsApp +86 18030005825.
