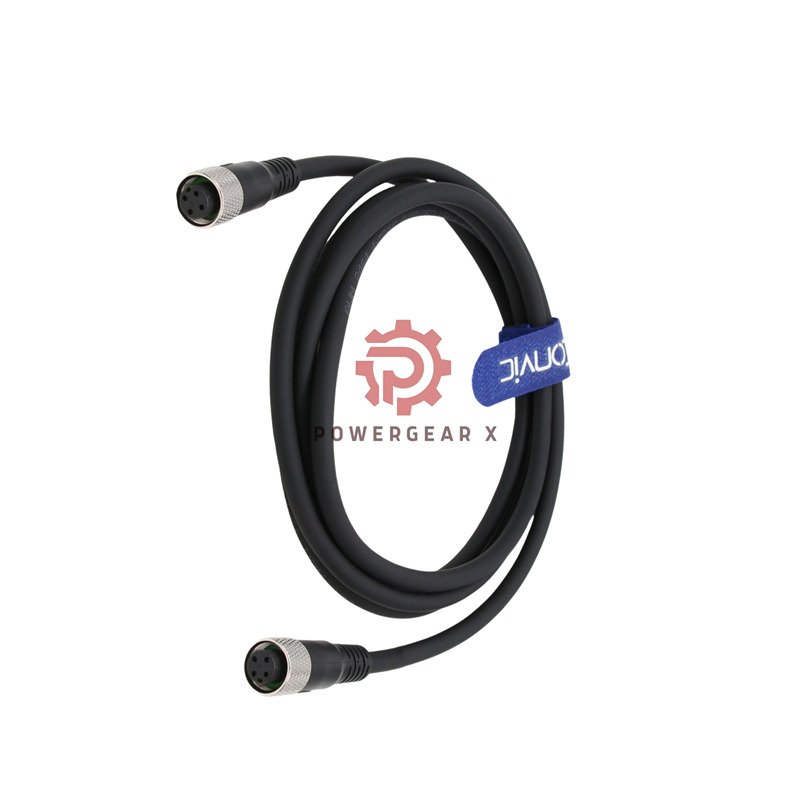

Leuze K-D M12A-4P-2m-PVC Connection Cable – Compact 4-Pin Axial Type

Leuze K-D M12A-4P-2m-PVC Connection Cable

The Leuze K-D M12A-4P-2m-PVC offers strong performance for sensor and automation systems. Designed for precision, flexibility, and long service life under harsh industrial conditions.

Type Structure

• K-D: Cable with factory-mounted connector
• M12A: M12 axial connector type
• -4P: 4-pin configuration
• -2m: Cable length 2 meters
• -PVC: PVC sheath, black

Electrical Specifications

• Voltage: ≤250 VAC/DC
• Current: ≤4 A per contact
• Insulation category: I (IEC 60664-1)
• Contact resistance: ≤5 mΩ
• Insulation resistance: ≥100 MΩ

Mechanical Characteristics

• Conductor cross-section: 0.34 mm²
• Sheath diameter: 4.7–5.7 mm
• Bending radius: ≥10 × sheath diameter
• Connector body: Diecast zinc nickel-plated
• Recommended torque: 0.6 Nm (self-locking)

Environmental Resistance

• Fixed wiring: -30°C to +70°C
• Flexible wiring: -5°C to +70°C
• Corrosion resistant metal shell
• Oil and chemical resistant outer sheath
• Humidity tested up to 95% RH

Performance Highlights

• Stable signal for automation and sensor control
• Compact axial design for tight spaces
• Shielded structure for reduced interference
• Long life span and easy installation
• 12-month warranty from Powergear X Automation

Delivery & Support

• Worldwide shipping by FedEx, UPS, or DHL
• Fast delivery with protective packaging
• Support via sales@powergearx.com
• WhatsApp: +86 18030005825

FAQ

• Q:
  How flexible is this cable during motion use?
  A:
  The PVC sheath keeps flexibility while resisting stress during repeated movement.
• Q:
  Can this cable handle high-vibration environments?
  A:
  Yes, the connector is self-locking and vibration-resistant with secure metal coupling.
• Q:
  Is this model compatible with Leuze M12 sensors?
  A:
  Fully compatible with standard M12 4-pin Leuze and other automation sensors.
• Q:
  What’s the best torque for mounting the connector?
  A:
  Apply 0.6 Nm torque to ensure a tight, self-locking seal without overtightening.
• Q:
  Any maintenance advice for long cable life?
  A:
  Avoid sharp bends and prolonged heat exposure; inspect connectors periodically.

Additional Info

• Made for industrial sensor systems
• Lightweight and easy to route
• Perfect for automation control and I/O connections
