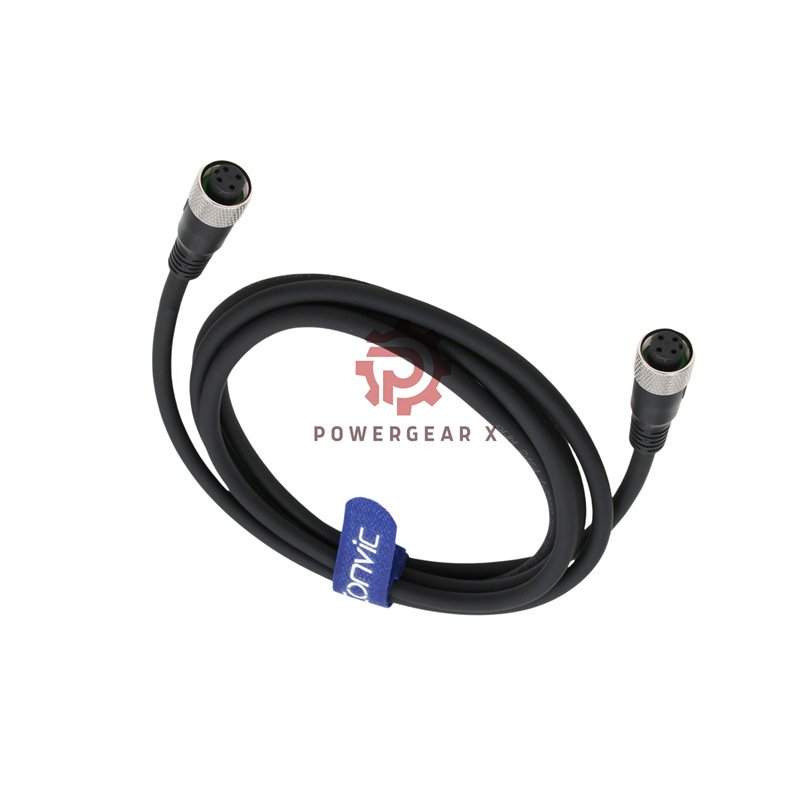

Leuze K-D M12A-4P-10m-PVC Connection Cable | 4-Pin

Leuze K-D M12A-4P-10m-PVC Connection Cable Overview

• The Leuze K-D M12A-4P-10m-PVC cable ensures strong signal and power transmission for industrial sensors and control systems.
• It features a robust 10-meter PVC sheath and a 4-pin M12 axial connector.
• Designed for automation, factory, and machine applications requiring secure data and power links.

Type Code Breakdown

• K-D — Connection cable with connector
• M12A — M12 axial type connector
• 4P — 4-pin configuration
• 10m — Cable length of 10 meters
• PVC — Outer jacket made of PVC material

Technical Specifications

• Manufacturer: Leuze Electronic
• Model: K-D M12A-4P-10m-PVC
• Operating Voltage: ≤250 VAC/DC (3/4-pin); ≤125 VAC/DC (5-pin)
• Rated Current: ≤4A per contact
• Insulation Category: I (IEC 60664-1)
• Connector Housing: Diecast zinc, nickel-plated, 0.6 Nm torque
• Cable Material: PVC sheath, black color
• Conductor Cross-section: 0.34 mm²
• Sheath Diameter: 4.7 – 5.7 mm
• Bending Radius: ≥10 × sheath diameter
• Temperature Range (fixed): -30°C to +70°C
• Temperature Range (flexible): -5°C to +70°C
• Weight: Lightweight for easy routing in tight spaces

Key Features & Advantages

• Compact M12 connector supports quick installation and easy replacement.
• Nickel-plated metal shell offers corrosion and vibration resistance.
• Durable PVC jacket resists oil, heat, and bending stress.
• High flexibility ensures long service life in moving cable setups.
• Reliable contact design prevents signal loss and electrical failure.
• Ideal for automation sensors, robotics, and production lines.

Warranty & Delivery

• Backed by a 12-month warranty from shipment date.
• All units tested for insulation and continuity before packaging.
• Worldwide express shipping via FedEx, UPS, or DHL.

FAQ

• Q:
  Can I use this cable for 24V DC sensors?
  A:
  Yes, it supports both low-voltage DC and AC devices safely.
• Q:
  What’s the best way to secure the M12 connector?
  A:
  Tighten with 0.6 Nm torque to ensure proper sealing and contact.
• Q:
  Is this cable suitable for continuous motion applications?
  A:
  Yes, the flexible PVC design can handle moderate movement cycles.
• Q:
  Can I cut and re-terminate this cable?
  A:
  It’s possible, but factory-sealed ends are recommended for IP protection.
• Q:
  What should I avoid during installation?
  A:
  Avoid sharp bends or tension below the rated bending radius.
