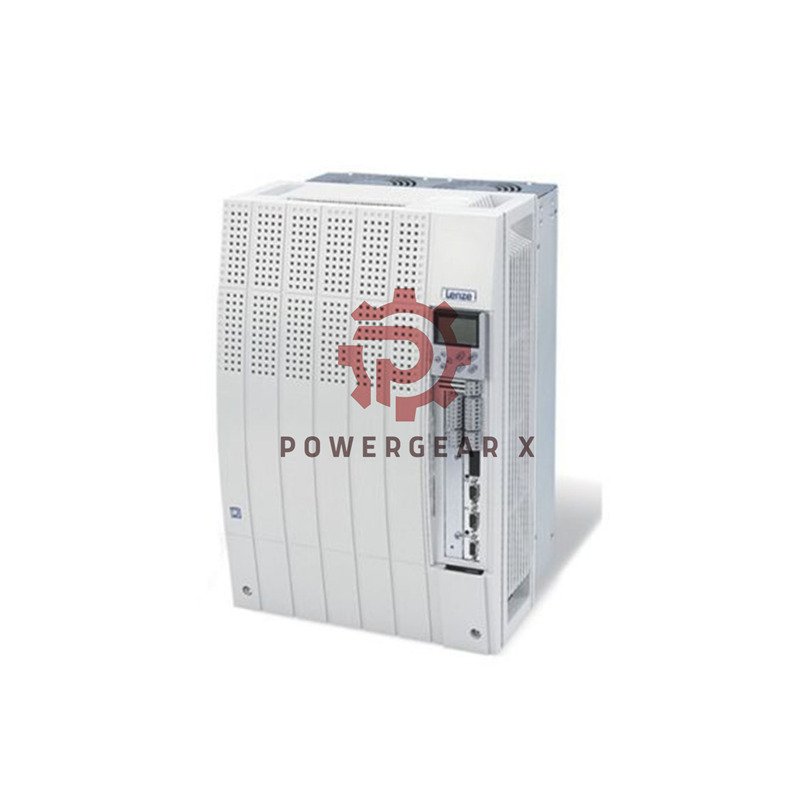

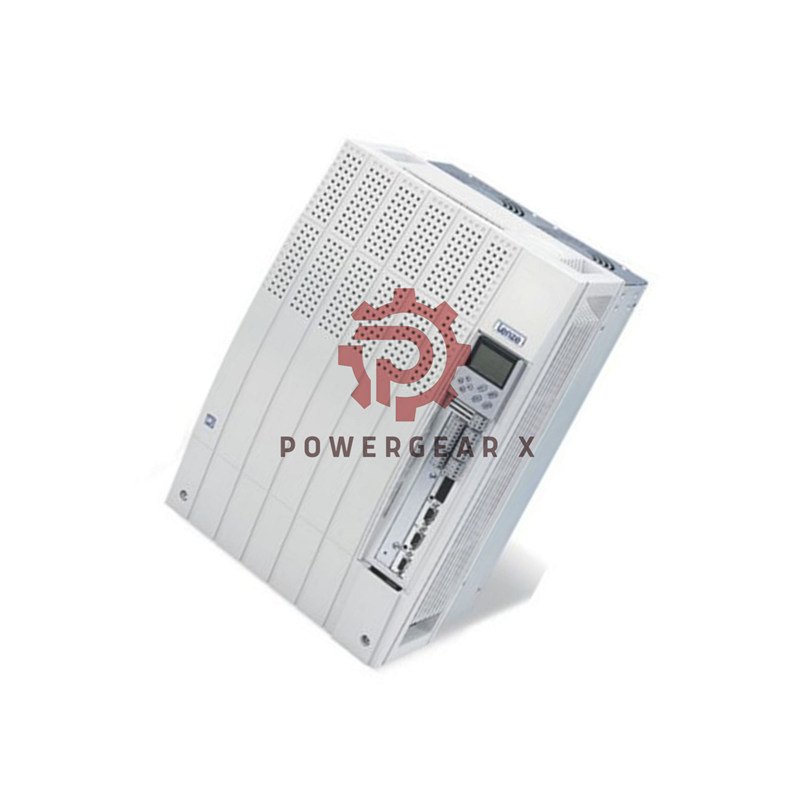

Lenze EVS9329-ES High Power Servo Inverter

The EVS9329-ES offers high power, strong current, and stable control for tough work sites. The unit delivers 40.9 kVA at 400V and 46.6 kVA at 480V. It runs motors up to 37 kW. Powergear X Automation writes this guide for fast reading.

Main Performance Highlights

• The EVS9329-ES outputs 88.5 A at 8 kHz for 480V and handles 57 A at 16 kHz for high-speed loads.
• It supports 47 A at 400V and 56 A at 480V under 8 kHz rated mode.
• Motor rating reaches 30 kW at 400V and 37 kW at 480V for strong torque needs.
• It weighs 12.5 kg and fits tight areas with 250 × 350 × 250 mm size.
• Input works from 320–528 VAC, with 3-phase supply for stable flow.
• DC input range stays within 460–740 VDC for bus link systems.
• It supports 45–65 Hz input for wide grid conditions.
• Cooling passages improve airflow and reduce heat rise during long shifts.
• Noise control design helps maintain clean signals in busy plant lines.
• Control board offers fast motor response for accurate handling tasks.

Installation Guide

• Mount the unit with space around vents to keep airflow clear.
• Check mains input stays inside 320–528 VAC before wiring.
• Follow marked terminals for three-phase supply and motor output.
• Use a DC bus link only when voltage remains inside 460–740 VDC.
• Ground the module to reduce noise inside the cabinet.

Package List

• 1 × Lenze EVS9329-ES inverter module
• 1 × Quick start guide
• Standard screw set and connector labels
• Secure shock-proof box
• Shipping options: FedEx, UPS, DHL
• Warranty: 12 months from delivery date

FAQ

• Q: How do I choose the best switching frequency for my load?
  A: Use 8 kHz for high current and 16 kHz for quieter work and lighter loads.
• Q: What is the best way to reduce heat during long runs?
  A: Keep vents open, add cabinet fans, and check dust every month.
• Q: Can I run long motor cables without issues?
  A: Add line filters and shield the cable to reduce noise and loss.
• Q: How do I protect the module during voltage dips?
  A: Install surge protection and watch grid stability during heavy plant starts.
• Q: What steps help tuning motors for fast stops?
  A: Adjust ramp settings, raise torque limits, and test in short bursts.
