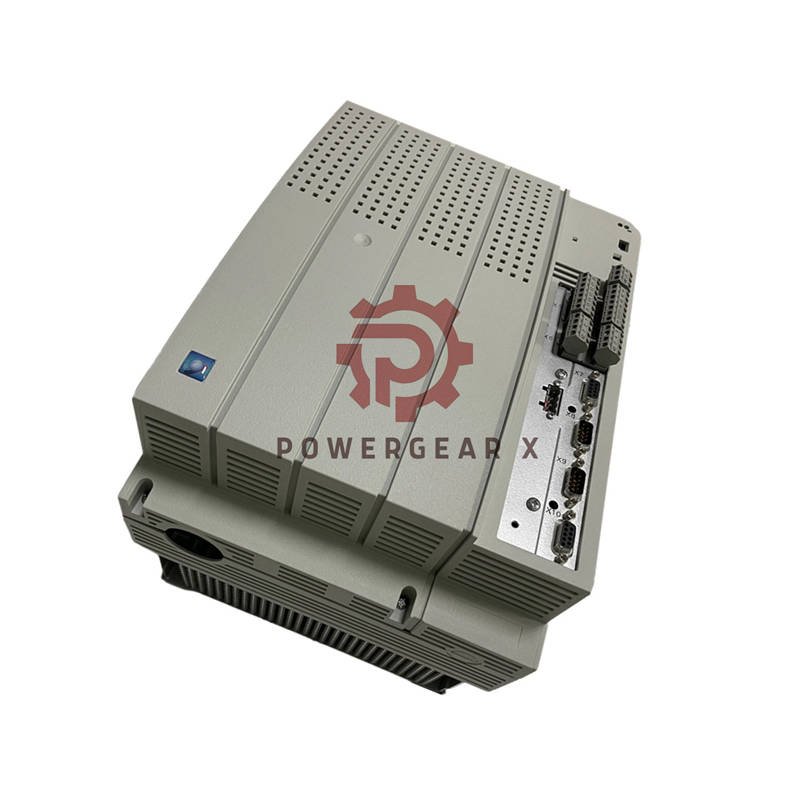

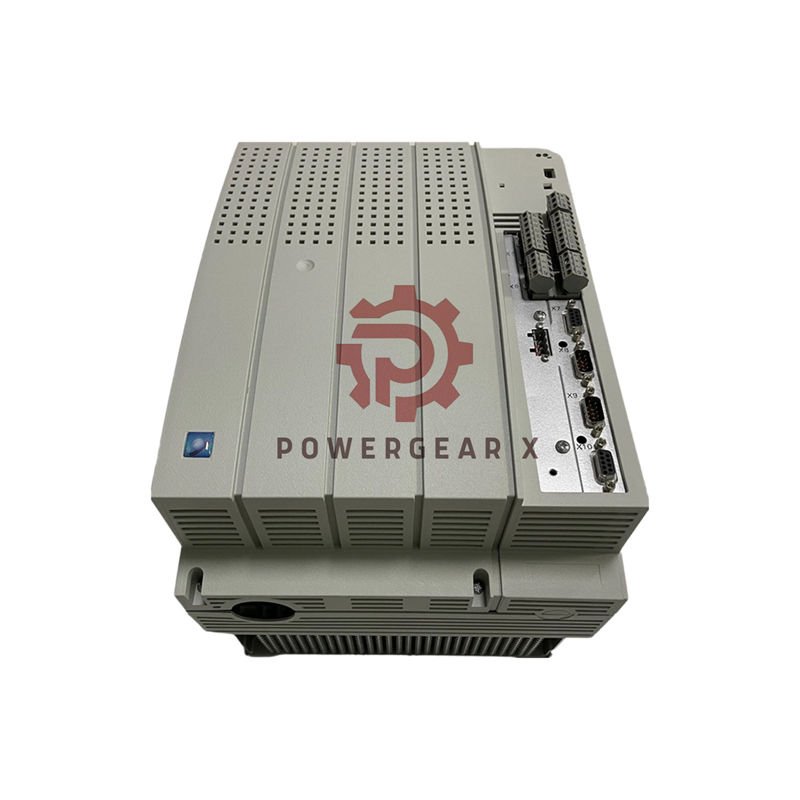

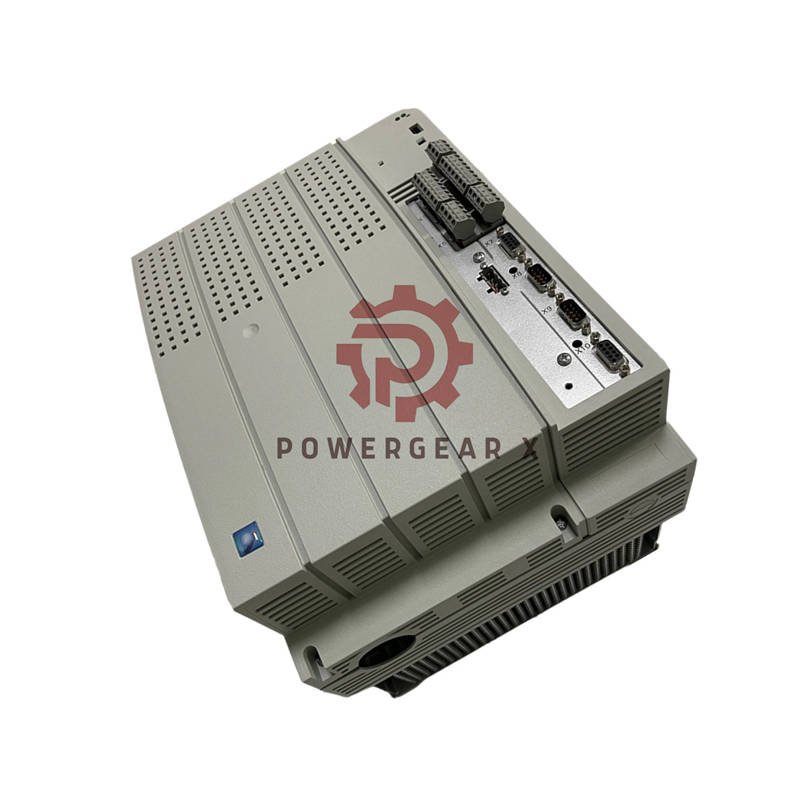

Lenze EVS9328-ESV004 Servo Inverter Controller
Powergear X Automation introduces the advanced EVS9328-ESV004 servo inverter. This controller delivers powerful motor outputs for industrial automation. It provides 22.0 kW at 400 V and 30.0 kW at 480 V systems. The integrated safe standstill function ensures operational safety. This Series 9300 product offers flexible switching frequencies.
Core Technical Advantages
- High motor output power: 22.0 kW (400V) and 30.0 kW (480V)
- Integrated safe standstill safety function
- Adjustable switching frequency: 8 kHz or 16 kHz
- Wide voltage input range: 320-528V AC or 460-740V DC
- Substantial output current: 47.0A at 400V (8 kHz operation)
- Compact design with 12.5 kg mass
- Operational power loss limited to 640 W
- Peak output current reaches 70.5A at 400V (8 kHz)
Complete Technical Specifications
- Brand: Lenze
- Model: EVS9328-ESV004
- Controller Type: Servo Inverter
- Product Series: 9300
- Motor Output (4-pole ASM): 22.0 kW (400V) / 30.0 kW (480V)
- Output Power (8 kHz): 32.6 kVA (400V) / 37.0 kVA (480V)
- Output Current (8 kHz): 47.0A (400V) / 44.7A (480V)
- Peak Output Current (8 kHz): 70.5A (400V) / 67.1A (480V)
- Input Current with Filter: 44.0A
- Mains Voltage: 3 AC 320-528V, 45-65 Hz
- DC Power Input: DC 460-740V
- Switching Frequency: Adjustable 8/16 kHz
- Mass: 12.5 kg
- Power Reduction: 2.5%/K above 40°C, 5%/1000m above 1000m
Industrial Application Areas
- Precision motion control systems
- High-performance automation machinery
- Manufacturing equipment requiring safe standstill
- Robotic arm and positioning systems
- Packaging and material handling machines
Package Contents & Support
- Lenze EVS9328-ESV004 servo inverter unit
- Complete installation and user documentation
- 12-month manufacturer warranty coverage
- Worldwide shipping via FedEx, UPS, DHL
- Technical support from Powergear X Automation
Expert Frequently Asked Questions
- What motor types work with this servo inverter?
The controller operates with 4-pole ASM motors up to 30 kW.
- How does the safe standstill function improve safety?
It prevents unexpected motor restart during maintenance periods.
- Can I use this inverter in high-altitude locations?
Yes, but power reduces 5% per 1000 meters above 1000m elevation.
- What cooling method does this unit require?
Ensure proper airflow and maintain ambient temperature below 40°C.
- Is special training needed for installation?
Basic electrical knowledge suffices, but consult manual for best results.
