Lenze EVS9325-ES 9300 Series Servo Controller | 480V 5.5kW

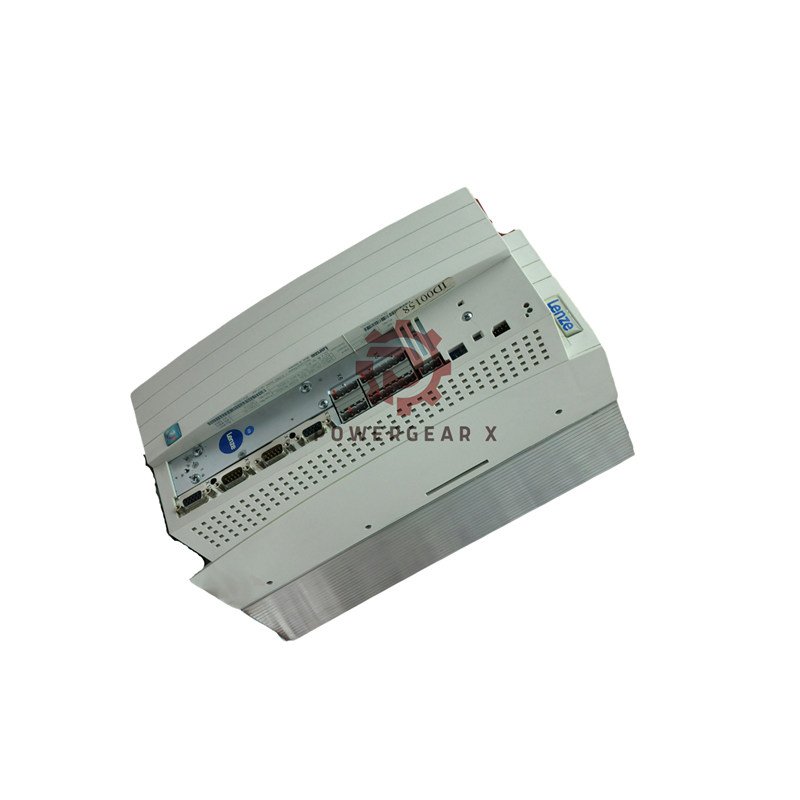

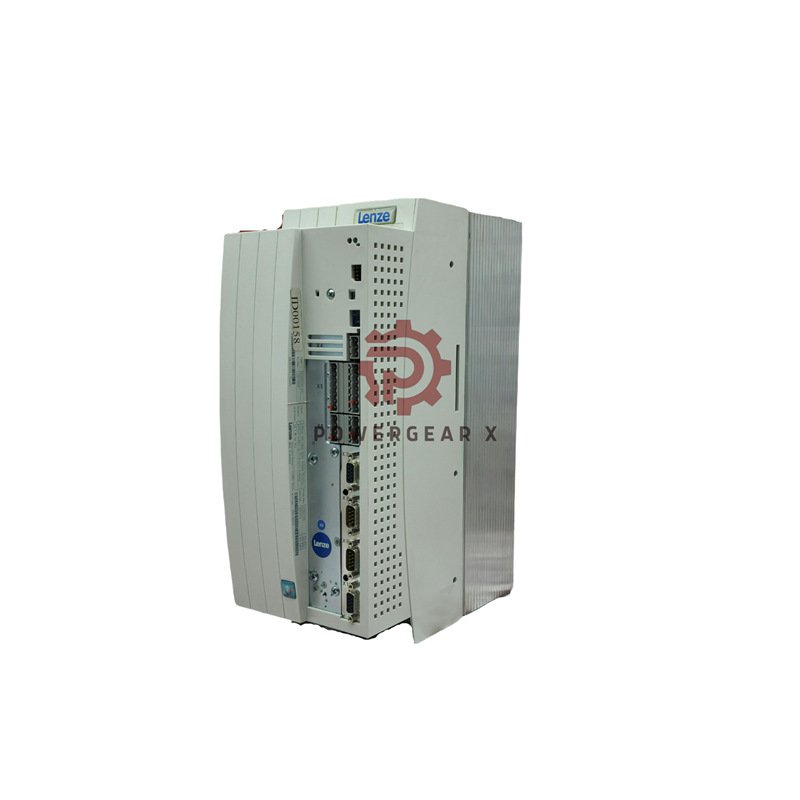

Lenze EVS9325-ES Servo Controller Overview

• The EVS9325-ES is a smart servo controller from Lenze.
• It offers 5.5 kW power and supports 3-phase 400–480V mains input.
• It ensures precise motion control and stable operation for industrial systems.
• It suits automation, robotics, and drive control applications.

Technical Highlights

• Product Type: Servo Controller – Lenze 9300 Series.
• Input Voltage: 3 AC 320–528 V ±0%, 45–65 Hz.
• Alternative DC Supply: 460–740 VDC.
• Mains Current: 12 A with filter, 16.8 A without filter.
• Output Current (8 kHz): 13 A.
• Output Current (16 kHz): 9.7 A.
• Max Output Current: 19.5 A (8 kHz), 14.6 A (16 kHz).
• Motor Power: 5.5 kW (4-pole ASM motor).
• Output Power: 9 kVA at 400V, 10.8 kVA at 480V.
• Power Loss: 260 W at 400V operation.
• Temperature Derating: 2% per K from 40–55°C.
• Altitude Derating: 5% per 1000 m above 1000 m.
• Dimensions: 135 × 350 × 250 mm.
• Weight: 7.5 kg.

Performance & Reliability

• Stable torque output across wide voltage ranges.
• High overload capacity for dynamic load changes.
• Operates from 45 to 65 Hz, adaptable to global power systems.
• Compact, durable, and easy to install in tight spaces.

Key Advantages

• Fast response time for precision motion.
• Energy-efficient operation reduces heat and power loss.
• Simple setup for both 400V and 480V systems.
• Designed for continuous use in industrial automation.
• 12-month factory warranty with reliable after-sales service.

Shipping & Packaging

• Standard package includes 1 × EVS9325-ES unit, mounting kit, and user manual.
• Ships worldwide via FedEx, UPS, or DHL with secure packaging.

FAQ

• Q:What is the rated motor power for this unit?
  A:The EVS9325-ES supports 5.5 kW motor output.
• Q:Can it operate with DC input?
  A:Yes, it works with 460–740 VDC supply voltage.
• Q:Does it include a built-in filter?
  A:Yes, the drive offers operation with or without a mains filter.
• Q:What ambient temperature is supported?
  A:It runs from 0°C to 55°C with power reduction above 40°C.
• Q:How heavy is the controller?
  A:It weighs 7.5 kg for easy panel installation.
