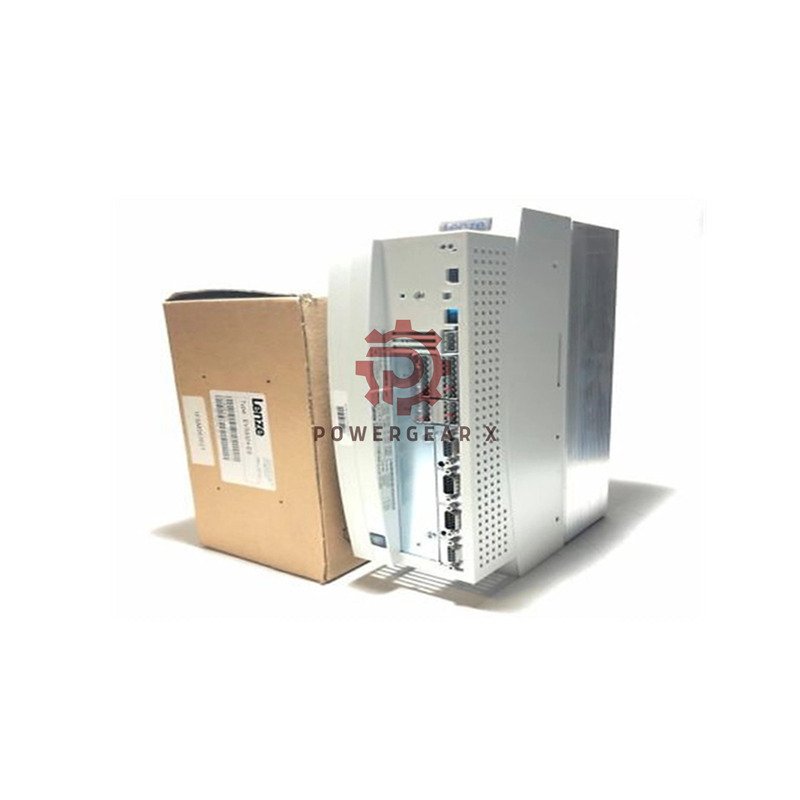

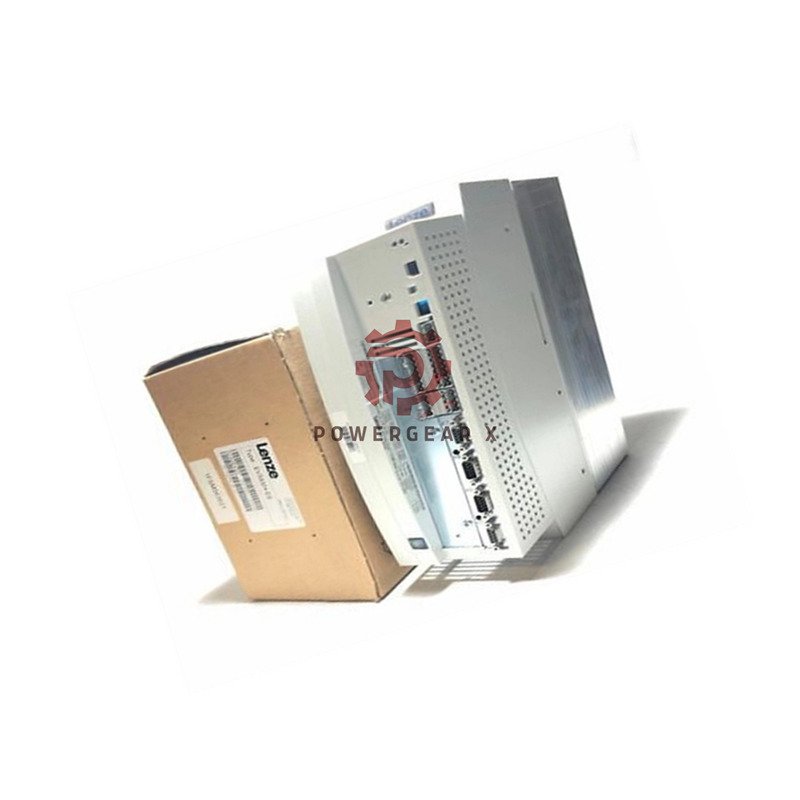

Lenze EVS9324-ES Servo Inverter Overview
The Lenze EVS9324-ES is part of the trusted 9300 Series servo drives. It provides precise motion control and flexible voltage handling for industrial motors. Designed for consistent performance, it offers stable operation under high loads and changing frequencies.
Authored by Powergear X Automation
Key Product Highlights
- Rated power 3 kW with superior torque control and fast dynamic response.
- Voltage range 3-phase 320 V – 528 V, frequency range 45 – 65 Hz.
- Output power up to 4.8 kVA (8 kHz) and 0.75 kW for DC link.
- Max output current 10.5 A (8 kHz), with thermal protection.
- High switching frequency options up to 16 kHz for silent and smooth motor operation.
- Supports both AC and DC power input for flexible integration.
- Compact build: 97 × 350 × 250 mm, weight 5 kg.
- Power loss ≈ 200 W at 400 V input with effective heat dissipation.
- Operating temperature – 40 °C to 55 °C; 2 % power derating per °C above 40 °C.
- Altitude up to 4000 m amsl with 5 % power reduction per 1000 m.
Why Choose Lenze EVS9324-ES
- High reliability under continuous load operations.
- Flexible voltage input ensures global usability.
- Excellent control algorithms for precise motor feedback.
- Compact and easy to integrate into automation systems.
- Ideal for conveyors, robotics, and packaging machinery.
Technical Data Summary
- Manufacturer: Lenze
- Product Line: 9300 Series
- Part Number: EVS9324-ES
- Nominal Current: 7 A at 400 V
- Alternative DC Supply: 460 V – 740 V DC
- Output Power: 4.8 kVA (8 kHz) / 5.8 kVA (480 V)
- Max Standstill Current: 10.5 A (8 kHz)
- Cooling: Integrated fan with thermal monitoring
- Weight: 4.99 kg (11 lbs)
- Warranty: 12 months from delivery date
Installation and Shipping
- Install vertically with clear airflow and vibration isolation.
- Follow wiring diagrams provided in the Lenze installation guide.
- Keep mains and motor cables shielded for EMC compliance.
- Ships securely via FedEx, UPS, or DHL.
- Each unit includes manual, quick-start guide, and mounting accessories.
Additional Technical Advantages
- Energy-efficient design reduces system heat and saves power.
- Built-in protection: over-voltage, under-voltage, and short-circuit safety.
- Fast acceleration and deceleration times enhance productivity.
- Scalable communication options for automation networks.
FAQ
- Q: What motor types are supported by Lenze EVS9324-ES?
A: It supports asynchronous and synchronous servo motors for industrial use. - Q: Can this inverter operate from a DC bus system?
A: Yes, it works with DC supplies between 460 V and 740 V. - Q: What is the ideal switching frequency for quiet operation?
A: 16 kHz is optimal for low-noise environments. - Q: Is the inverter suitable for high-altitude locations?
A: Yes, with minor power reduction above 1000 m. - Q: Does Powergear X Automation provide setup support?
A: Yes, contact us via sales@powergearx.com or WhatsApp +86 18030005825.
