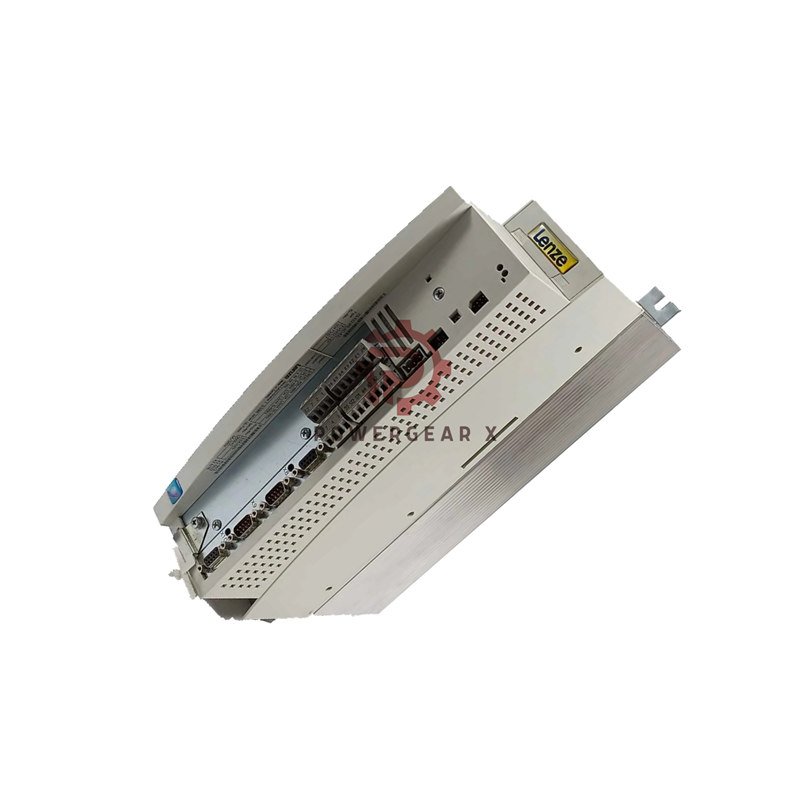

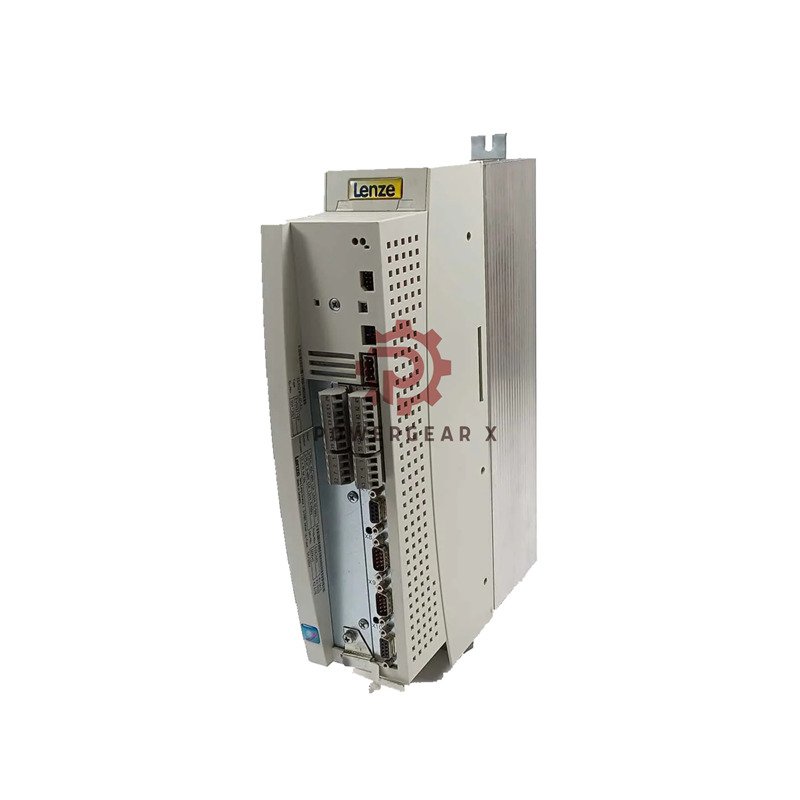

Lenze EVS9321-EP Position Controller Overview
The Lenze EVS9321-EP is a compact, panel-mounted position controller engineered for high precision and stability. Designed for industrial servo systems, it provides smooth operation, reliable control, and flexible voltage handling in both 400V and 480V environments.
Authored by Powergear X Automation
Main Highlights
- Compact panel-mounted design for control cabinets.
- Wide input voltage range 320 – 528 VAC.
- Delivers 0.37 kW (0.5 HP) motor power.
- Precise control for position-based servo operations.
- Designed for easy integration in factory automation and motion systems.
Technical Specifications
- Manufacturer: Lenze
- Product Line: 9300 Series
- Model: EVS9321-EP
- Type: Servo Position Controller
- Mounting: Panel Mount
- Mains Voltage: 320–528 VAC
- Rated Voltages: 400V / 480V
- Mains Current with Filter: 1.5 A
- Mains Current without Filter: 2.1 A
- Motor Power: 0.37 kW (0.5 HP)
- Output Power (U,V,W 8kHz): 1.0 kVA / 1.2 kVA
- Output Power (+UDC, -UDC): 2.0 kW
- Output Current (8 kHz): 1.5 A
- Output Current (16 kHz): 1.1 A
- Power Loss: 100 W
- Weight: 3.5 kg
- Warranty: 12 months factory warranty
Performance & Design Benefits
- Optimized for smooth servo motion control and positioning accuracy.
- Integrated safety and temperature protection for long service life.
- Supports asynchronous and synchronous motors.
- High control precision at 8 kHz / 16 kHz frequencies.
- Ideal for machine tools, packaging, and conveyor automation.
Installation & Handling
- Mount vertically with cooling clearance to maintain airflow.
- Connect supply lines and ground as per wiring diagram in the manual.
- Maintain EMC compliance using shielded cables.
- Setup parameters via Lenze configuration software.
- Ships globally via FedEx, UPS, or DHL.
FAQ
- Q: What type of motors can the Lenze EVS9321-EP control?
A: It supports both asynchronous and servo motors. - Q: Is the controller suitable for small industrial machines?
A: Yes, it fits perfectly for compact equipment requiring precise motion. - Q: What frequency options are supported?
A: It supports both 8 kHz and 16 kHz operation. - Q: How heavy is the unit?
A: The controller weighs about 3.5 kg. - Q: Can I get technical setup support?
A: Yes, contact sales@powergearx.com or WhatsApp +86 18030005825.
