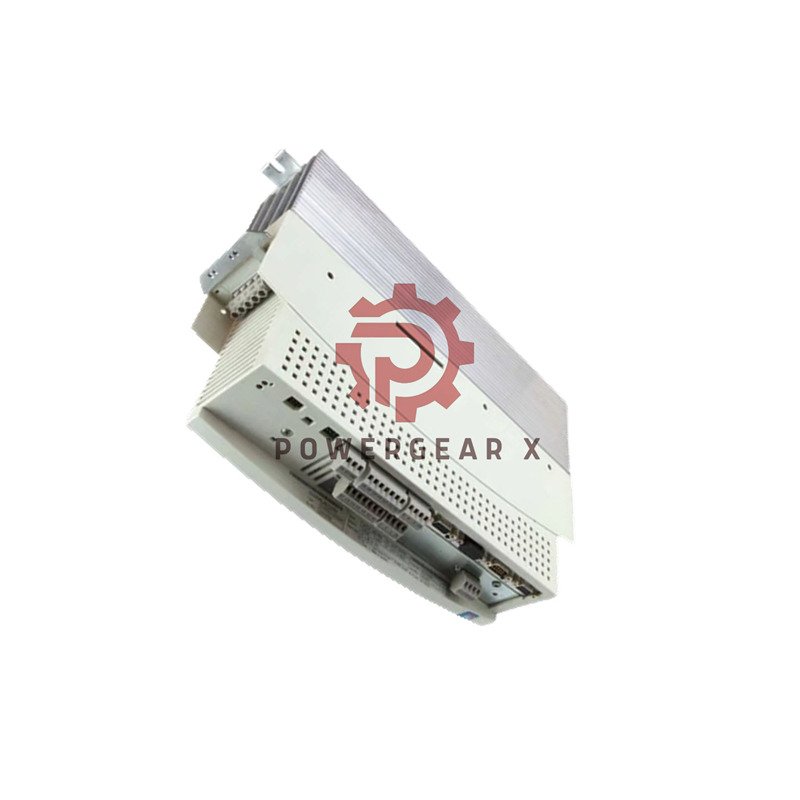

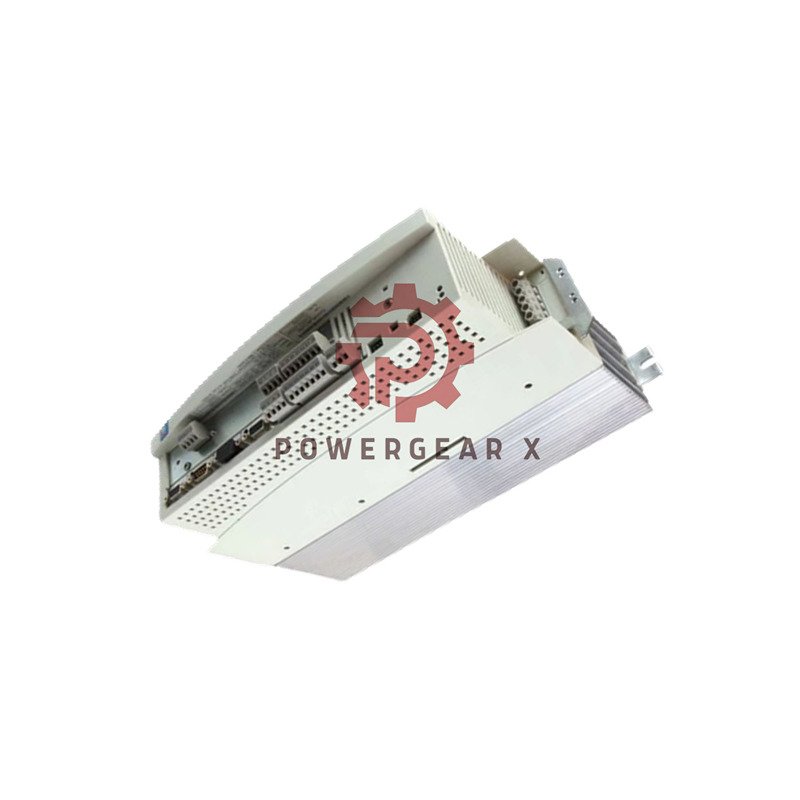

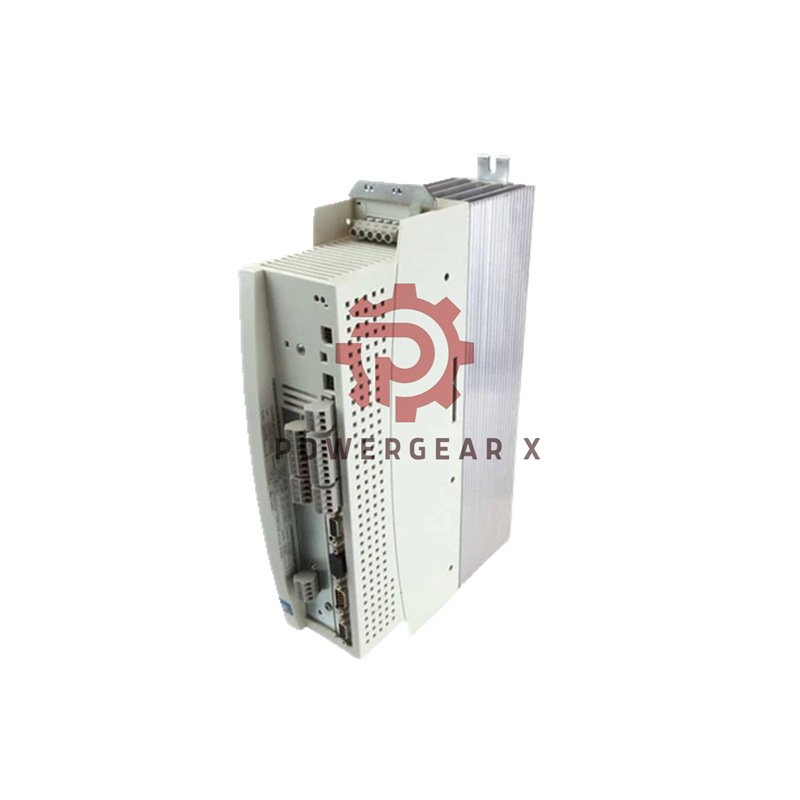

Lenze EVS9321-EK Servo Cam Controller Overview
The Lenze EVS9321-EK is a compact 9300 series cam controller made for smooth motor control. It runs on 3 AC 320–528 V and supports DC 460–740 V. Simple setup and stable output make it ideal for many motion tasks.
Author: Powergear X Automation
Main Features
- Motor power: 0.37 kW for 4-pole motors
- Output current: 1.5 A / 1.05 A at 8 kHz
- Output current: 1.1 A / 0.77 A at 16 kHz
- Max current: up to 3.0 A at 8 kHz
- Mains frequency: 50/60 Hz
- Power loss at 400 V: 100 W
- Thermal derate: 2% per K above 40°C
- Size: 78 × 350 × 250 mm
- Weight: 3.5 kg
- Fast switching at 8 kHz / 16 kHz
- Stable speed control for small drives
- Low-noise operation
Extra Technical Data
- Control type: Servo cam profile control
- Cooling: Forced air design
- Isolation: Reinforced power section insulation
- Startup time: < 300 ms
- Brake control output included
- Overload capacity: 150% for short peaks
- EMC level: Industrial grade
Why Choose This Unit
- Reliable in 24/7 systems
- Easy wiring layout
- Fast reaction in motion tasks
- Long service life with low heat build-up
- Works well in tight panels
Warranty & Shipping
- 12-month warranty coverage
- Ships via FedEx, UPS, or DHL
- Fast global handling
Contact Information
Inquiries: sales@powergearx.com
WhatsApp: +86 18030005825
Professional FAQ
How does this controller behave at high switching loads?
It keeps stable output at both 8 kHz and 16 kHz, but airflow must be maintained for best service life.
Can this unit run mixed AC and DC input setups?
Yes, it accepts 3 AC mains and high-voltage DC inputs used in many industrial systems.
What is the best environment temperature range?
Keep it at 0–40°C for full output. Above this level, the power derate curve applies.
Is it suitable for small motion profiles?
Yes, the fast response time makes it good for light-duty cam motions and compact machinery.
How to reduce noise on output lines?
Use short cables, proper shielding, and match grounding points to avoid signal spikes.
