Product details

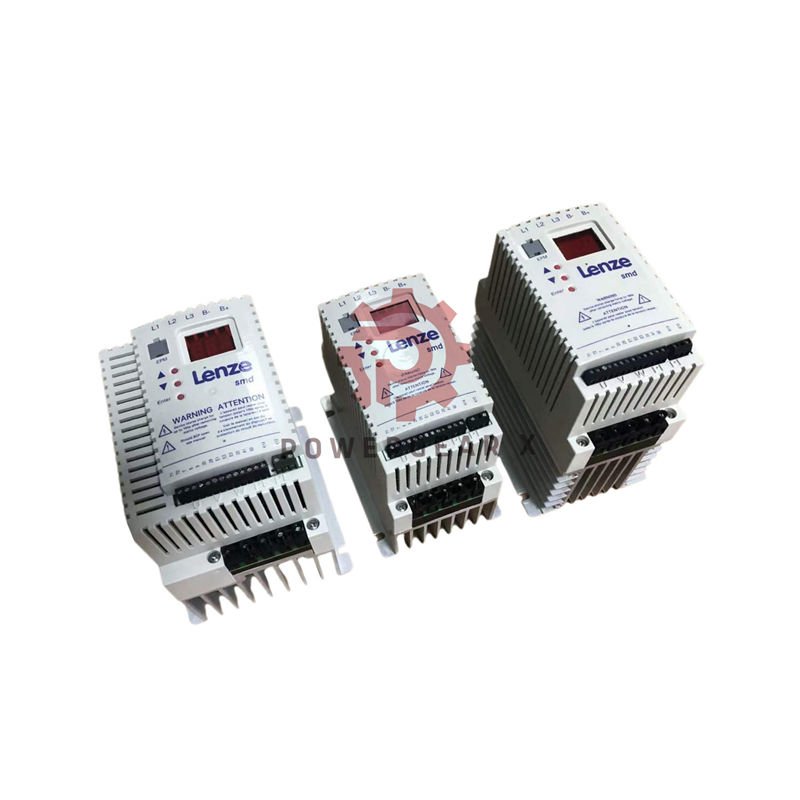

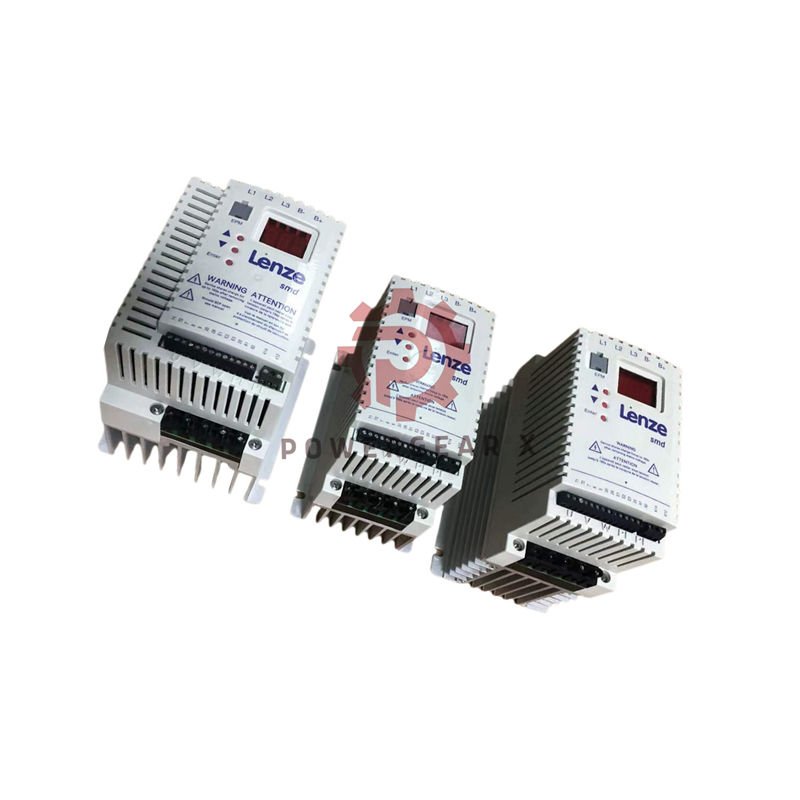

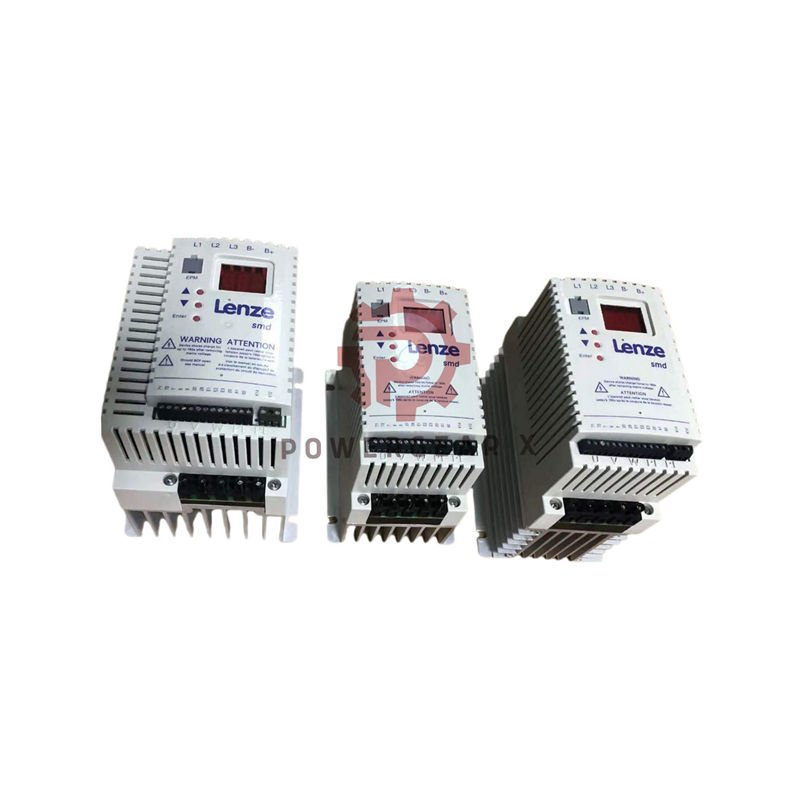

Lenze Single-Axis Servo Drive
- Part Number: ESMD371L4TXA
- This is a compact servo drive for precise motion control.
- It delivers a rated power of 0.37 kW (0.5 HP).
- The drive is designed for single-phase 230V AC supply.
- Features a NEMA housing for basic environmental protection.
- Ideal for applications requiring accurate speed and position control.
Core Benefits and Features
- High Performance: Wide output frequency range from 0 to 500 Hz.
- Dual Communication: Built-in support for Modbus and LECOM protocols.
- Compact Design: Saves space in control cabinets.
- Easy Integration: Simple setup for single-axis applications.
- Global Approvals: CE, cULus, and C-Tick certified for worldwide use.
- Reliable Current Output: Rated for 2.2 A continuous operation.
Full Technical Specifications
- Manufacturer & Model: Lenze ESMD371L4TXA
- Product Type: Single-Axis Servo Drive
- Rated Power: 0.37 kW (0.5 Horsepower)
- Supply Voltage: 1~ 230 V AC (+10% / -15%)
- Input Phase: 1(3)/N/PE AC
- Rated Output Current: 2.2 A
- Output Frequency Range: 0 to 500 Hz
- Control Logic Supply: Typically 24 V DC (internal or external)
- Communication Protocols: Modbus (RS-485), LECOM
- Feedback Interface: Supports standard servo motor feedback (e.g., EnDat, resolver).
- Protection Degree: IP20 (for installation inside a protected enclosure)
- Housing Type: NEMA-rated enclosure
- Operating Temperature: 0°C to 55°C (32°F to 131°F) at full load
- Storage Temperature: -25°C to 70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Resistance: Up to 0.5 G (5-200 Hz)
- Mounting: Standard panel or DIN rail mounting
- Certifications: CE, cULus, C-Tick, RoHS compliant
System Compatibility
- Designed to control Lenze servo motors of equivalent power rating.
- Can be integrated into systems using Modbus RTU network communication.
- Compatible with standard motion controllers and PLCs.
- Check the Lenze catalog for recommended motor pairings.
Safety and Certifications
- CE Marking: Complies with EU safety and EMC directives.
- cULus Listed: Approved for use in the United States and Canada.
- C-Tick: Meets Australian electromagnetic compatibility requirements.
Package Includes
- 1 x Lenze Servo Drive ESMD371L4TXA.
- Drive is supplied in its original packaging.
- Documentation may be included or available for download.
Warranty and Shipping Policy
- This product is covered by a 12-month warranty from the invoice date.
- We ship globally using reliable express carriers: FedEx, UPS, and DHL.
- Tracking information is emailed to you upon dispatch.
Typical Application Uses
- Precision positioning in packaging machines.
- Speed control for conveyor belts.
- Axis control in small automation cells.
- Textile machinery and material handling systems.
