Product details
Control Your Motor’s Power

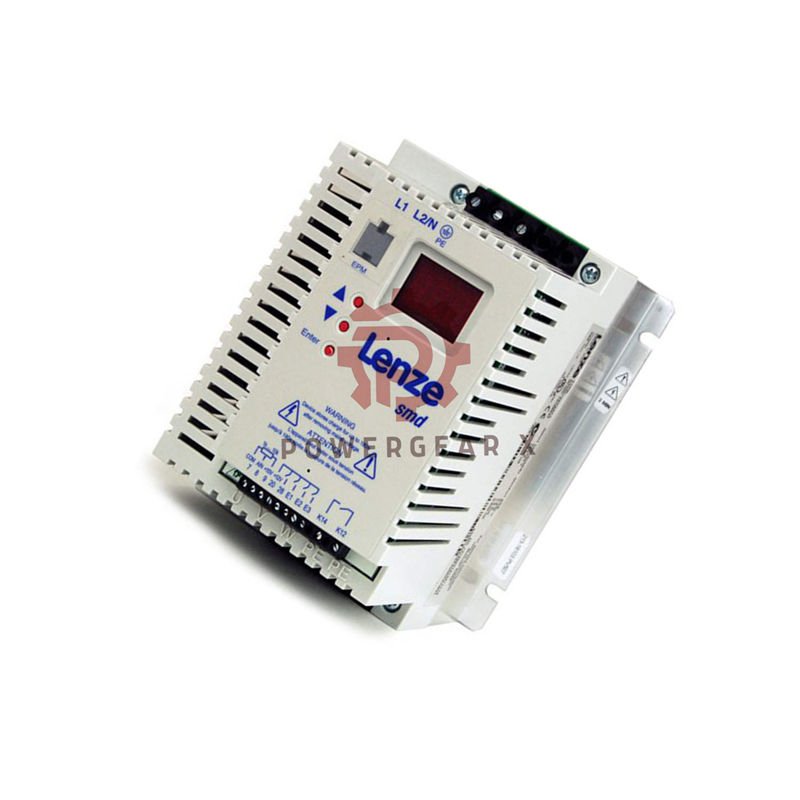

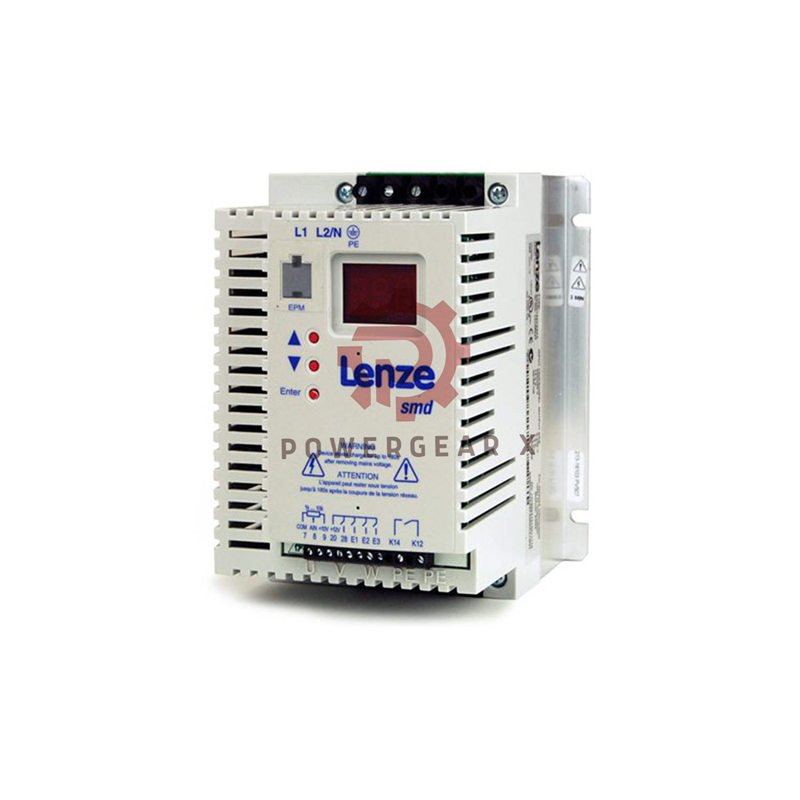

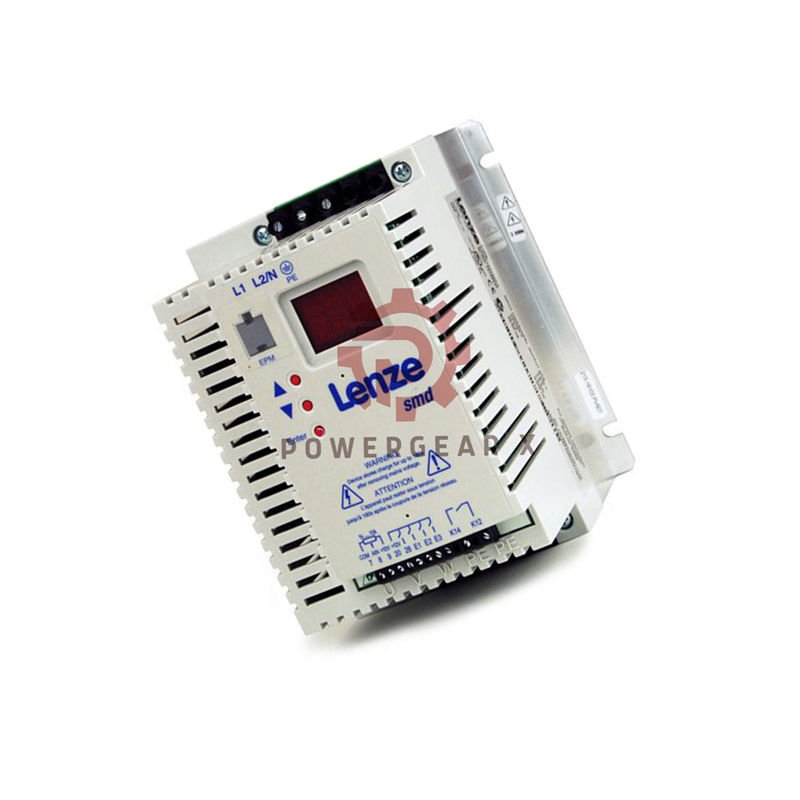

This is the Lenze ESMD152L4TXA. It is a smart variable frequency drive. It controls motor speed with precision. Use it for pumps, fans, and machines. It saves energy and improves process control. A reliable choice for industry.
By Powergear X Automation
Drive Performance Highlights
- Perfect for Standard Motors: 1.5 kW power rating fits many industrial applications.
- Wide Speed Control: Adjust output frequency from 0 Hz up to 500 Hz.
- Handles Power Surges: Manages 150% overload for 1 minute without fault.
- Easy Panel Integration: IP20 open-frame design installs inside any control cabinet.
- Global Voltage Compatible: Works with standard 400V three-phase mains power.
Detailed Drive Specifications
- Manufacturer & Model: Lenze ESMD152L4TXA
- Product Type: Variable Frequency Drive (VFD) / AC Drive
- Rated Output Power: 1.5 Kilowatts (kW)
- Supply Voltage: 3-Phase, 400V AC (50/60 Hz)
- Rated Output Current: 3.8 Amps (A)
- Maximum Output Current: 4.8 Amps (A)
- Output Frequency Range: 0.1 Hz to 240 Hz (Standard), up to 500 Hz (Maximum)
- Control Method: Sensorless Vector Control (SVC) & V/f Control
- Overload Capacity: 150% of rated current for 60 seconds
- Motor Connection: Standard 3-Phase AC Motor Output (U, V, W)
- Control Connections: Digital & Analog I/O for start/stop and speed reference
- Keypad/Display: Basic operator interface for setup and monitoring
- Enclosure Protection: IP20 (For mounting inside protective enclosures)
- Ambient Temperature: 0°C to 40°C (or up to 50°C with derating)
- Storage Temperature: -25°C to 70°C
- Relative Humidity: < 95% (non-condensing)
- Installation Altitude: Below 1000m for full performance
- Required Accessory: External EMC filter must be installed separately.
- Standards & Certification: CE marked, complies with relevant EU directives.
Our Promise to You
This drive is covered by a 12-month warranty. We deliver worldwide using express services: FedEx, UPS, and DHL.
Typical Uses in Industry
- Water pressure boosting and circulation pumps.
- Ventilation and exhaust fan speed control.
- Conveyor belt speed regulation.
- Basic mixer and agitator drives.
- Packaging machinery motor control.
Frequently Asked Questions
Q: What size motor can this drive control?
A: It is designed for a standard three-phase motor rated at 1.5 kW (approximately 2 HP).
Q: Does it include built-in filters for electrical noise?
A: No. An external EMC filter is required as a separate unit to meet electromagnetic compatibility standards.
Q: Can I control this drive from a PLC?
A: Yes. It has digital inputs for start/stop and analog inputs (0-10V or 4-20mA) for speed setting from a PLC.
Q: What is the difference between the rated and maximum current?
A: Rated current (3.8A) is for continuous operation. Maximum current (4.8A) is for short-term peak demands, like during motor start-up.
Q: From installation experience, what is a common wiring mistake?
A: Ensure the motor power cables (U, V, W) are not run in the same conduit as control signal cables. This prevents electrical noise interference.
