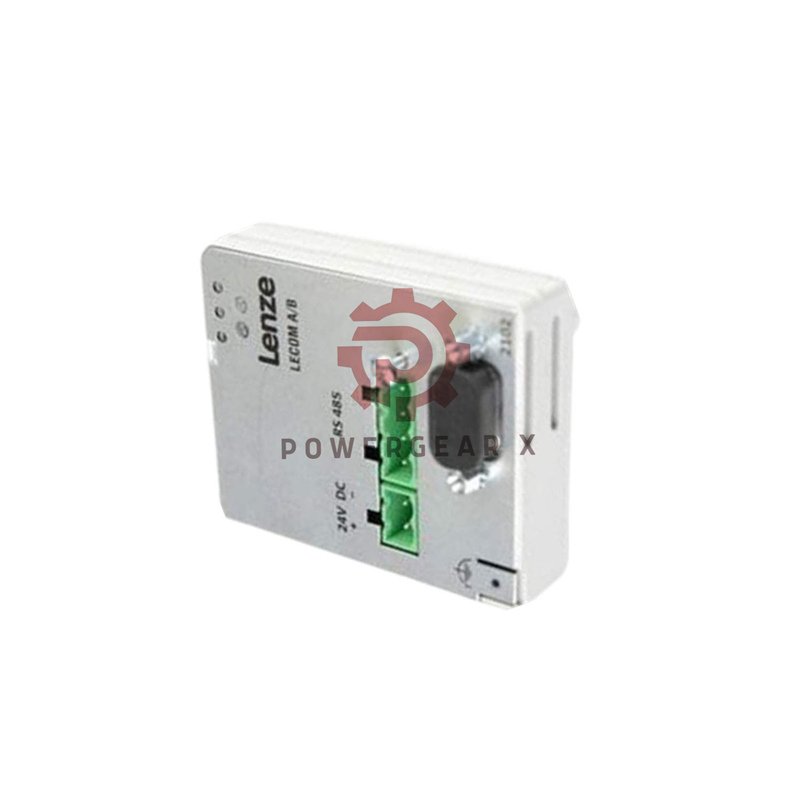

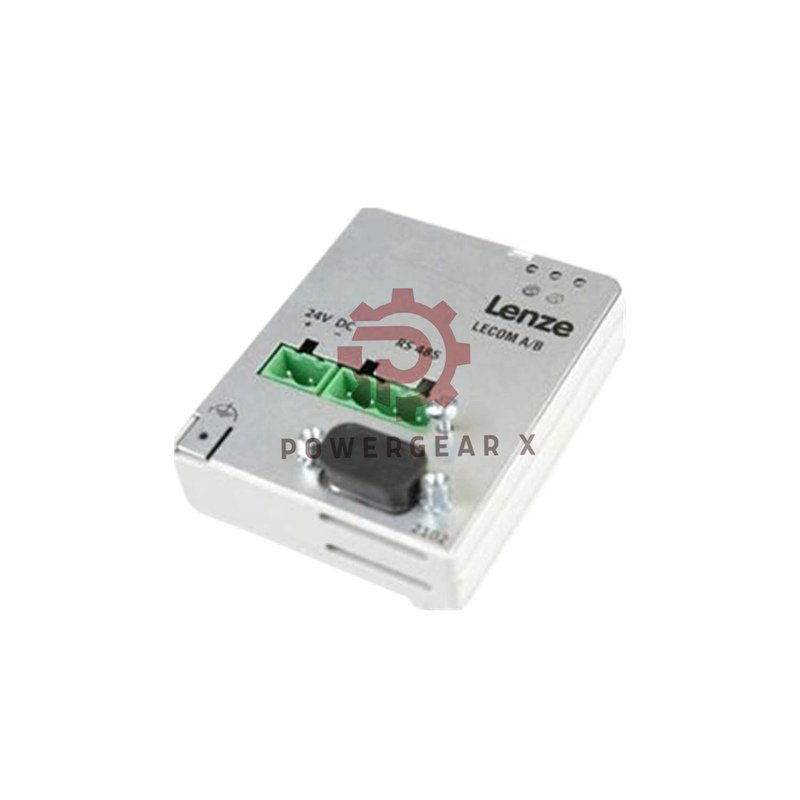

Lenze EMF2102IBCV001 Communication Module | RS232/485

Lenze Series 8200 Communication Interface

• Part Number: EMF2102IBCV001
• This is a communication module for Lenze Series 8200 frequency inverters.
• It provides both RS232 and RS-485 serial communication ports.
• The module enables setup, control, and monitoring of drives.
• Compact and lightweight for easy integration into existing systems.
• Supports a wide range of baud rates for flexible integration.

Key Features & Advantages

• Dual Protocol Support: Integrated RS232 (LECOM-A) and RS-485 (LECOM-B) interfaces.
• Long-Distance Communication: RS-485 supports cables up to 1200 meters with proper cabling.
• Wide Baud Rate Selection: From 1200 to 19200 bit/s for compatibility with various controllers.
• Simple Connection: Screw terminal block for reliable wiring.
• Low Power Consumption: Only 80 mA at 24V DC, reducing cabinet load.
• Robust Industrial Design: Rated for operation from 0°C to 55°C.

Complete Technical Specifications

• Manufacturer & Model: Lenze EMF2102IBCV001
• Product Series: Series 8200
• Supply Voltage: 24 V DC (+/- 10%)
• Current Consumption: 80 mA typical
• Communication Ports:
  • Port 1: RS232 (LECOM-A)
  • Port 2: RS-485 (LECOM-B)
• Supported Baud Rates: 1200, 2400, 4800, 9600, 19200 bit/s
• Communication Protocol: LECOM-A/B Version 2.0
• Character Format: 7-bit ASCII
• Electrical Connection: Screw terminal block
• Recommended Wire Size: AWG 16 (1.5 mm²)
• Screw Torque: 0.5 to 0.6 Nm
• RS-485 Cable Types & Lengths:
  • LiYCY cable: Up to 300 meters
  • CYPiMF cable: Up to 1200 meters
• RS-232 Cable Type: LiYCY cable (shielded)
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +60°C
• Protection Rating: IP20 (for installation inside a protected cabinet)
• Dimensions (WxHxD): Approximately 70 mm x 100 mm x 25 mm
• Weight: 0.23 kg (0.50 lbs)
• Certifications: CE, RoHS compliant

Installation & Wiring Guide

• Ensure the main drive power is disconnected before installation.
• Plug the module into the designated communication slot on the Series 8200 inverter.
• Use AWG 16 (1.5 mm²) wires for connections to the screw terminals.
• Follow the terminal labeling for RS232 (TxD, RxD, GND) and RS-485 (A, B, GND).
• Tighten screws to a torque of 0.5-0.6 Nm for a secure connection.
• Use shielded cables and ground the shield at one end for best noise immunity.

System Compatibility

• Designed exclusively for Lenze Series 8200 frequency inverters.
• Allows connection to PLCs, PCs, or HMI devices via standard serial protocols.
• Check your specific inverter model’s compatibility list.

Certifications & Safety

• CE Marked: Complies with European EMC and safety directives.
• RoHS Compliant: Manufactured without hazardous substances.
• IP20 Rating: For indoor use in control cabinets only.

Package Contents

• 1 x Lenze Communication Module EMF2102IBCV001.
• Module is supplied in protective packaging.

Warranty & Shipping Information

• This product is covered by a 12-month warranty.
• Fast worldwide delivery via FedEx, UPS, and DHL.
• Tracking information is provided upon shipment.

Frequently Asked Questions

• Q: What is the main purpose of this module?
• A: It adds serial communication capability to Lenze 8200 drives for parameterization and control from a master device.
• Q: Can I use both RS232 and RS-485 at the same time?
• A: Yes, both interfaces are active simultaneously, allowing connection to two different masters or networks.
• Q: What is the difference between LECOM-A and LECOM-B?
• A: LECOM-A is the RS232 protocol, typically for point-to-point connections. LECOM-B is the RS-485 protocol, suitable for multi-drop networks.
• Q: Why is my communication unstable at 1200 meters?
• A: Ensure you are using the recommended CYPiMF cable and that the RS-485 network is properly terminated with 120-ohm resistors at both ends.
• Q: Can I use this module to replace a failed one without re-configuration?
• A: Yes, if the replacement module is the same part number. Parameters are stored in the inverter, not the communication module.
