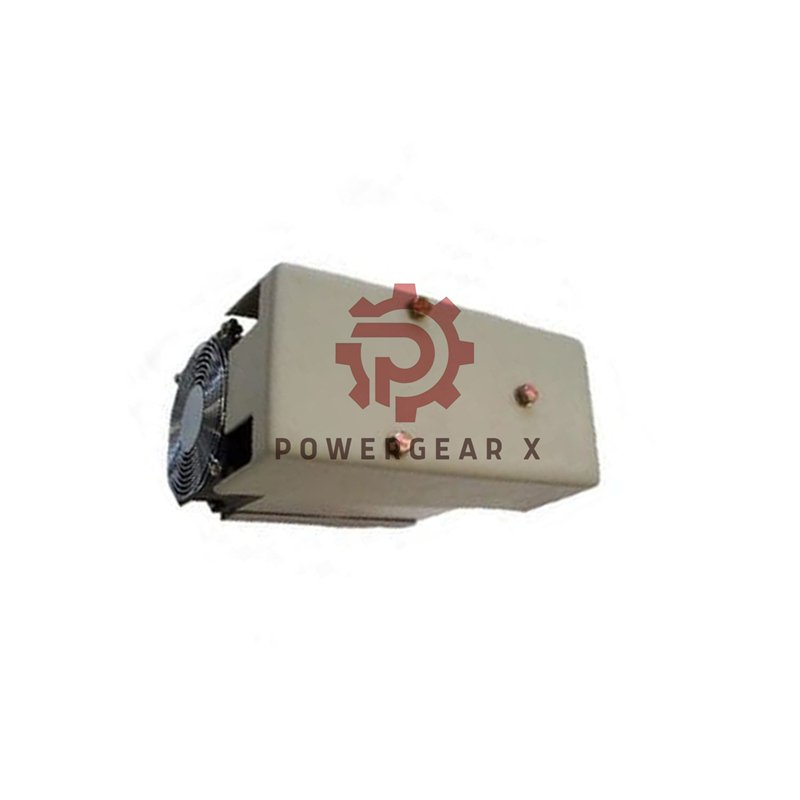

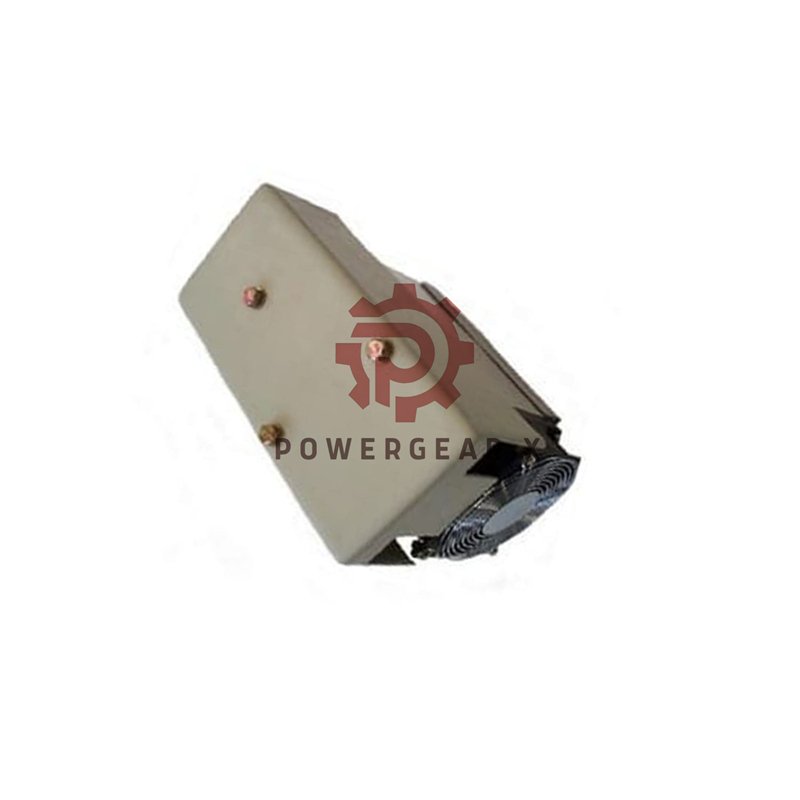

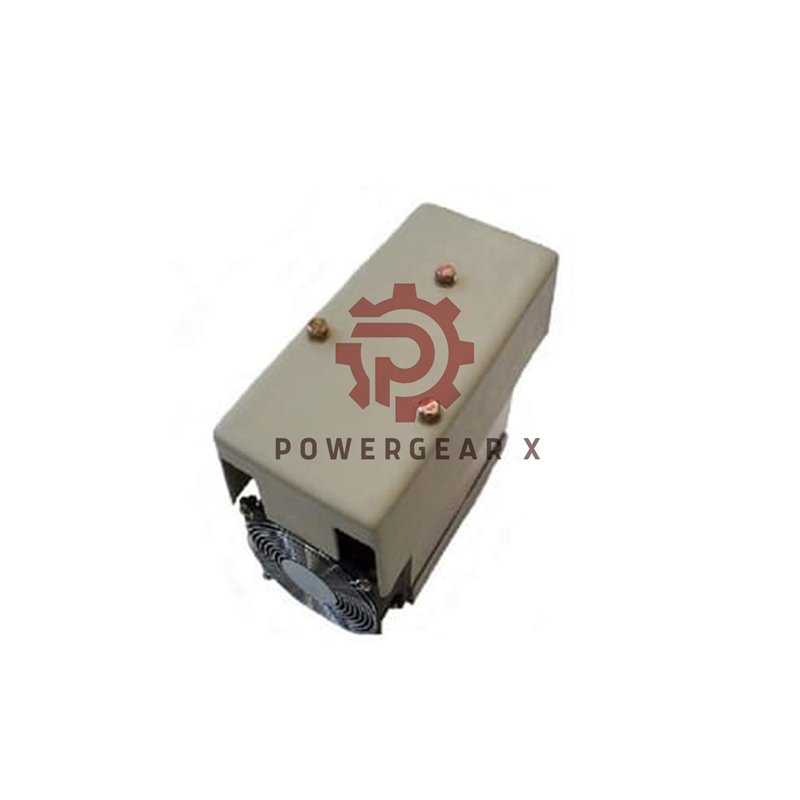

Lenze EME9365-E Power Supply Module | 100kW Industrial Power Unit

Lenze EME9365-E High-Capacity Power Supply Module

This powerful module delivers reliable energy for industrial systems. It handles demanding applications with exceptional performance.

Key Advantages

• High 100kW continuous power output
• Peak capacity reaching 150kW
• Wide voltage input range 100-550V AC
• Substantial 148A current rating
• Broad operating temperature range
• Efficient design with minimal power loss
• Compact form factor for space savings

Performance Specifications

• Manufacturer: Lenze
• Model: EME9365-E
• Product Line: Series 9300
• Rated Output: 100 kW
• Maximum Output: 150 kW
• Current Rating: 148 A
• Maximum Current: 222 A
• Voltage Range: 100-550 V AC
• Frequency Range: 48-62 Hz
• DC Bus Current: 180 A
• Max DC Bus Current: 270 A
• Power Loss: 389 W
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -25°C to 75°C
• Protection Class: IP00
• Weight: 12.79 lbs (5.8 kg)

Installation Requirements

• Ensure adequate ventilation for heat dissipation
• Provide proper electrical isolation and safety measures
• Mount in clean, dry environment due to IP00 rating
• Verify voltage compatibility before connection
• Use appropriate cable sizing for high current loads
• Follow local electrical codes and standards

Package Contents

• Lenze EME9365-E power supply module
• Installation and operation manual
• Mounting hardware and accessories
• Safety and compliance documentation

Service Details

• 12-month manufacturer warranty
• International shipping via FedEx, UPS, DHL
• Technical support available
• Replacement service for defective units

Technical Questions

• What cooling requirements does this module have?
• It requires adequate airflow and may need external cooling at maximum loads.
• Can it handle voltage fluctuations in industrial settings?
• The wide input voltage range provides good tolerance for typical fluctuations.
• What is the typical efficiency rating?
• High efficiency design minimizes power loss to only 389 watts at full load.
• How does temperature affect performance?
• Output may need derating at temperature extremes beyond specified range.
• What protection features are included?
• Basic protection with IP00 rating requires additional external protection devices.

For application engineering support, contact sales@powergearx.com or +86 18030005825.
