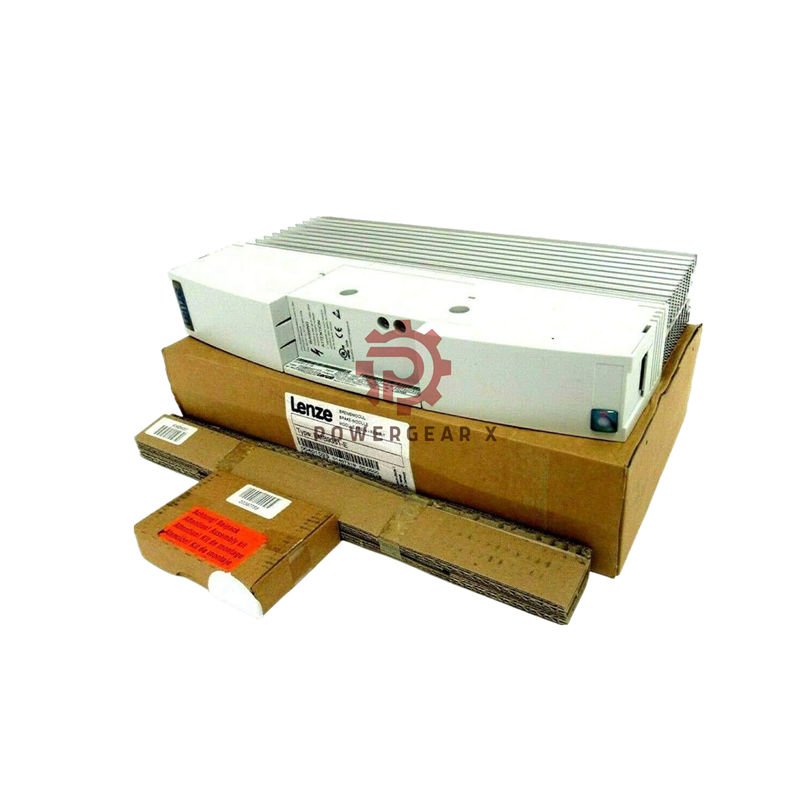

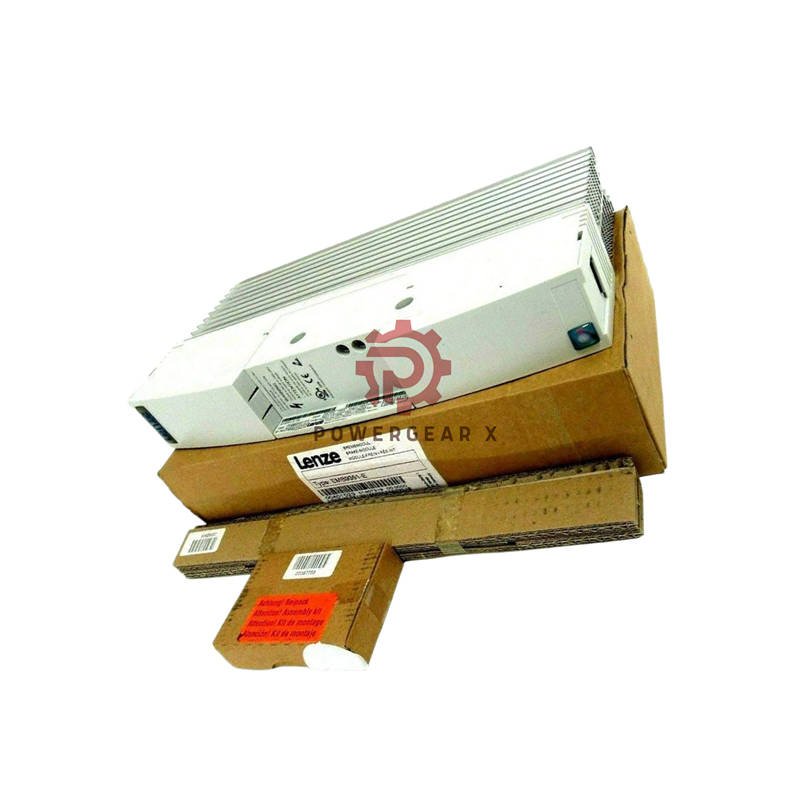

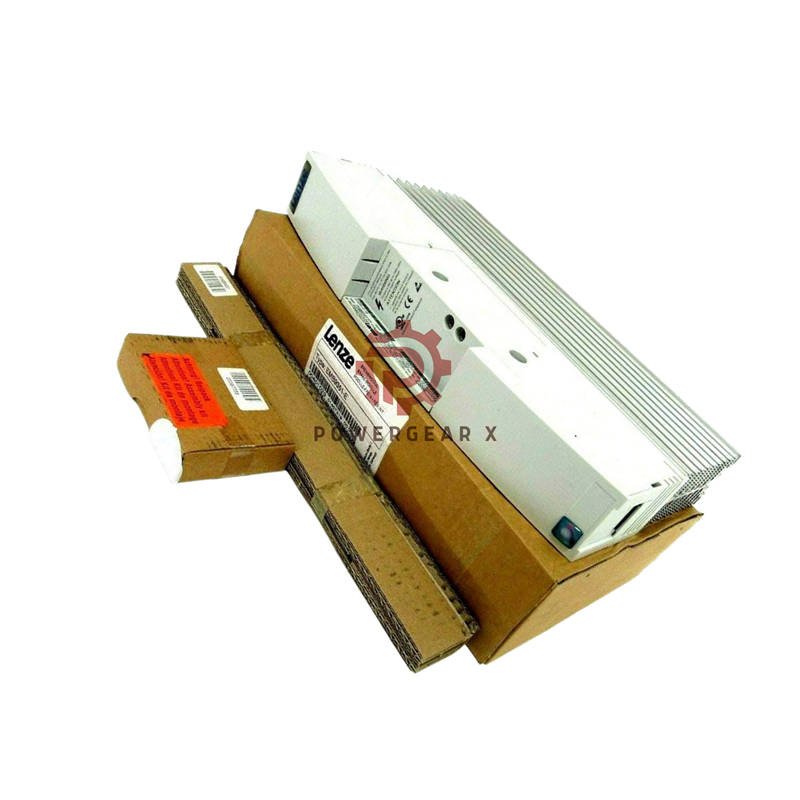

Lenze Emb9351-E Inverter Braking Module — High Peak Braking Power

Introduction

Lenze Emb9351-E braking module offers reliable DC bus energy control for industrial inverters. It delivers fast braking response, high peak power, and simple installation.

Main Features

• DC supply range: 270–775 V DC
• Peak current: 16 A DC (60 s)
• Threshold options: 375 V, 725 V, 765 V
• Peak braking power: 3 kW / 11 kW / 12 kW (per threshold)
• Continuous braking power: 100 W
• Internal brake resistance: 47 Ω
• Energy capacity: 50 kWs
• Weight: 2.6 kg

Performance & Durability

• Handles voltage up to 775 V DC safely
• Reduces bus voltage spikes under load
• Power derating: 2%/K (40–50°C), 5%/1000m altitude
• Durable stainless-steel case for long service life

Installation Guide

• Mount close to inverter DC terminals
• Check polarity before powering on
• Ensure good air ventilation
• Follow Lenze wiring diagram

Package Includes

• 1 × Emb9351-E braking module
• Mounting hardware
• Quick start manual
• Shipping by FedEx, UPS, or DHL

FAQ

• Q:
  What is the max braking power of the Emb9351-E?
  A:
  Up to 12 kW at 765 V DC.
• Q:
  Can it handle long braking cycles?
  A:
  Yes, with 50 kWs capacity and 20 min cooldown.
