Product details
Compact & Versatile I/O Solution

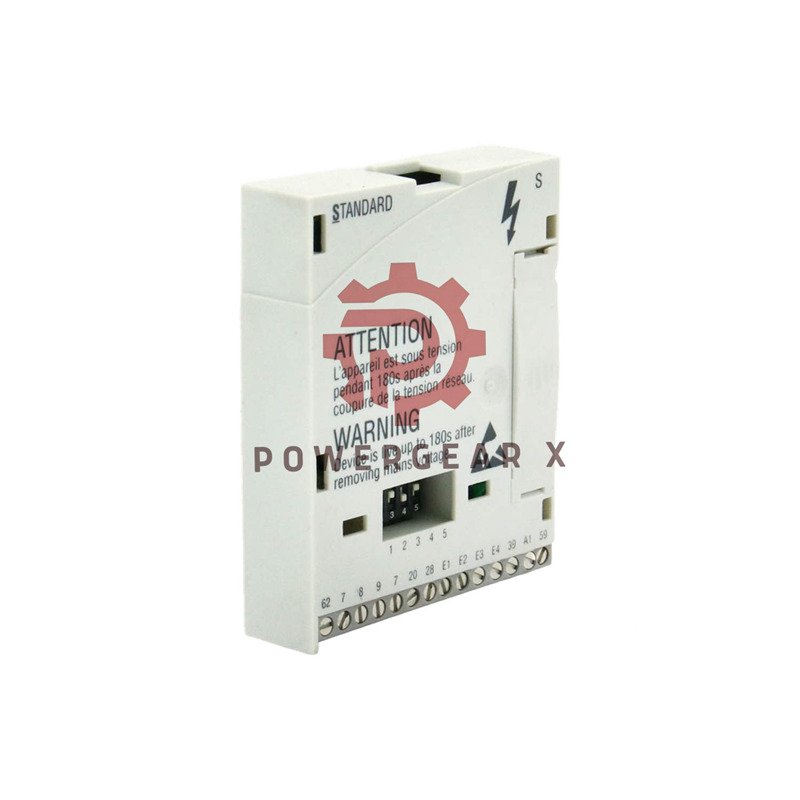

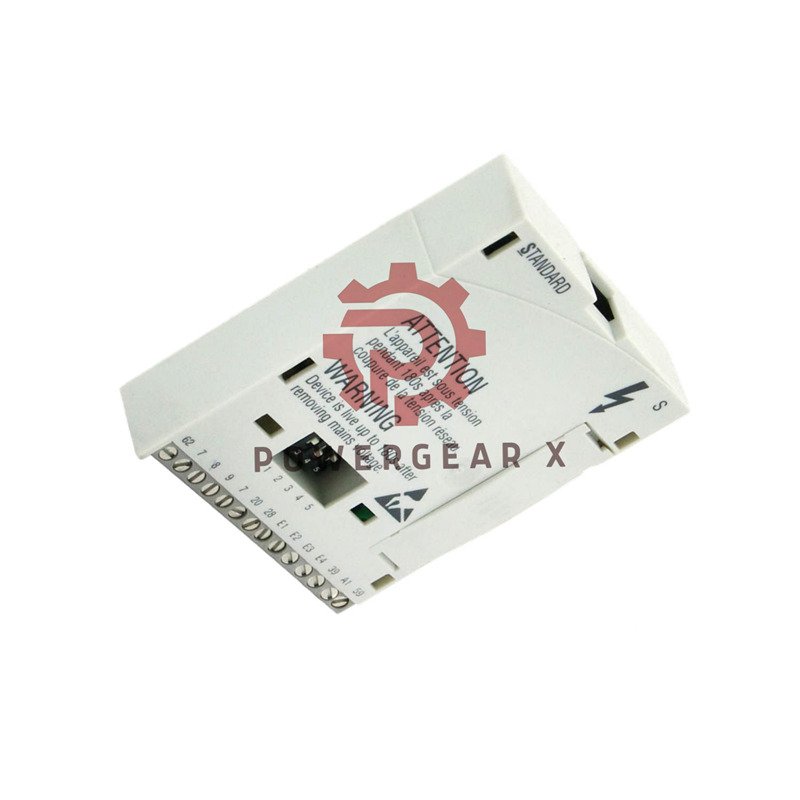

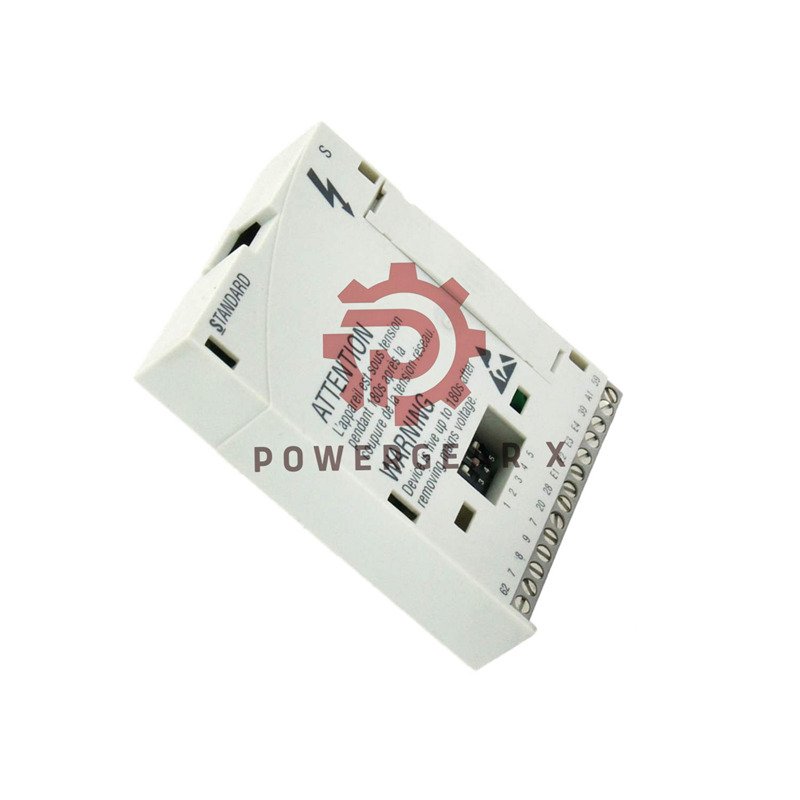

The Lenze E82ZAFS function module handles mixed signals in one compact unit. Part of the Series 8200, it combines analog and digital I/O for flexible machine control. Perfect for adding sensor inputs or actuator outputs to your system. This module is new, original, and ready to ship.
Complete Technical Specifications
- Brand: Lenze
- Model: E82ZAFS Function Module
- Series: 8200 System
- Type: Standard I/O Module (Mixed Signals)
- Supply Voltage: 24 V DC (+/- 20%)
- Current Consumption: Typically < 100 mA
- Analog Input: 1 channel, 0-10V / 0-20mA (selectable)
- Analog Output: 1 channel, 0-10V / 0-20mA (selectable)
- Digital Inputs: 4 channels, 24V DC, sourcing type
- Digital Output: 1 channel, 24V DC, transistor, 0.5A
- Signal Frequency Range: Adjustable from 0 to 50 Hz
- Response Time: < 5 ms for digital signals
- Electrical Connection: Screw terminal block
- Isolation: 500 V AC between field and logic side
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -25°C to +60°C
- Protection Rating: IP20 (for indoor use)
- Housing Material: High-grade plastic
- Weight: Approx. 40 grams (0.09 lbs)
- Mounting: Standard DIN rail (35mm)
Why Choose the E82ZAFS Module?
- Saves Space: One module handles both analog and digital signals.
- Easy Wiring: Clear screw terminals ensure reliable connections.
- Wide Voltage Range: Stable operation from 19.2V to 28.8V DC.
- Rugged Design: Works in tough industrial temperatures.
- Simple Integration: Plugs directly into Lenze 8200 system racks.
Package & Service Information
- Genuine Lenze E82ZAFS Function Module.
- New original product in factory packaging.
- Warranty: 12-month quality guarantee.
- Shipping: Fast delivery via FedEx, UPS, or DHL worldwide.
Author: Powergear X Automation
Frequently Asked Questions
- Is this module compatible with controllers other than Lenze?
- It is designed for the Lenze 8200 system. For other PLCs, you need the correct communication interface module.
- Can the analog input read a 4-20mA sensor signal?
- Yes. The input range can be configured for 0-20mA, making it suitable for standard 4-20mA sensors.
- What happens if my supply voltage is slightly above 24V DC?
- The module tolerates up to 28.8V DC. Always stay within the 19.2V-28.8V range for safe operation.
- How do I prevent noise on the analog signals?
- Use shielded cables. Keep analog wiring away from power lines and motor cables in the cabinet.
- What’s a quick check if the digital output isn’t working?
- First, verify the output load (like a solenoid) is within the 0.5A limit. Then, use a multimeter to test for 24V at the terminal.
