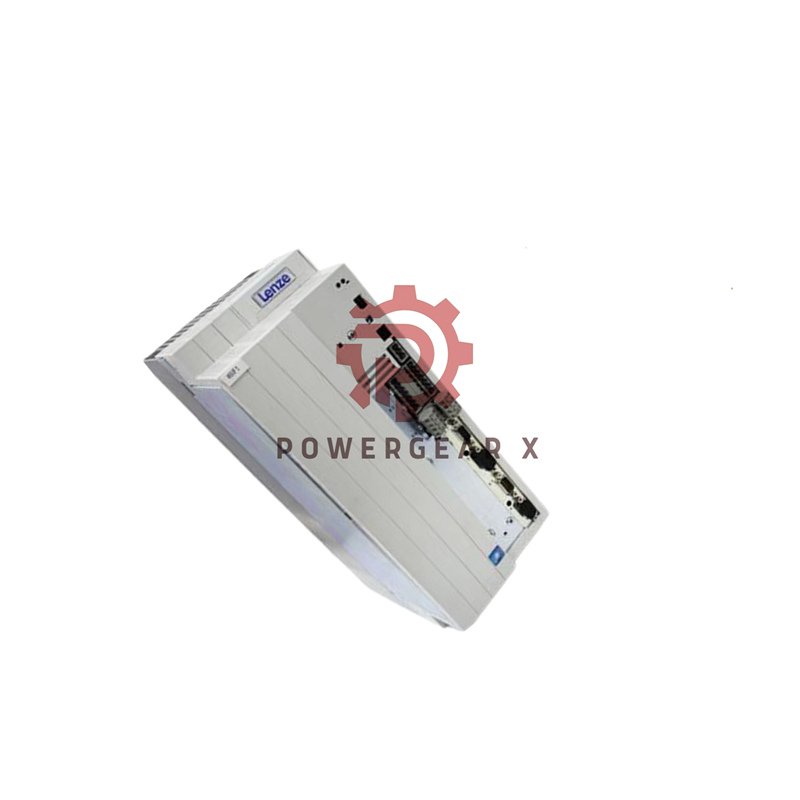

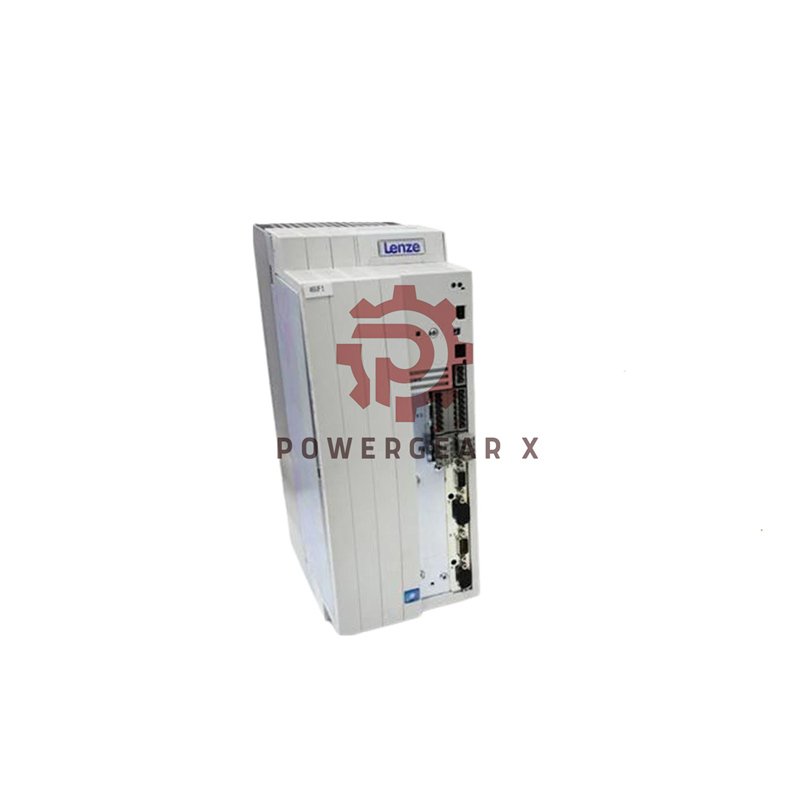

Lenze EVS9325-EK Servo Cam Motion Controller Overview
The Lenze EVS9325-EK is a strong and precise servo cam controller built for fast and accurate motion tasks. It works from 320–528 VAC and supports wide motor ranges for many industrial machines.
Author: Powergear X Automation
Email: sales@powergearx.com
Phone: +86 18030005825
Warranty: 12 Months | Shipping: FedEx / UPS / DHL
Main Features
- Input: 320–528 VAC, 45–65 Hz
- Rated motor power: 5.5 kW / 7.5 hp
- Power output: 9.0 kVA at 8 kHz
- Standard output current: 13.0 A (8 kHz)
- Max output current: 19.5 A (8 kHz)
- Motor voltage up to 3× input voltage
- Stall current: up to 19.5 A continuous
- Thermal derating: 2%/K above 40°C
- Altitude support: up to 1000 m
- Power loss: approx. 260 W
Extra Technical Highlights
- Series: Lenze 9300
- Part Number: EVS9325-EK
- Operating temperature: −10°C to 60°C
- Storage temperature: −25°C to 60°C
- Weight: 7.5 kg
- High-speed cam motion support
- Stable performance under long duty cycles
- Fast switching for dynamic control
- Strong overload handling
- Reliable for packaging, cutting, and indexing motion
Key Advantages
- Excellent cam control for precision moves
- Wide voltage tolerance for global use
- Handles rapid motion and heavy loads
- Compact for control cabinets
- Designed for stable, long-term operation
FAQ
- Q1. How can I reduce heat stress during long motion cycles?
- A1. Keep airflow clear around the drive and avoid placing heaters near the panel.
- Q2. Will the controller handle fast cam changes under load?
- A2. Yes, the response rate is quick and supports complex motion profiles.
- Q3. What is a common setup mistake during commissioning?
- A3. Incorrect motor parameter entry. Always match motor data exactly.
- Q4. Does altitude affect long-term duty?
- A4. Yes, above 1000 m the unit must be derated. Cooling becomes more important.
- Q5. Can the EVS9325-EK run safely in warm factories?
- A5. Yes, but expect power derating above 40°C. Keep fans maintained.
