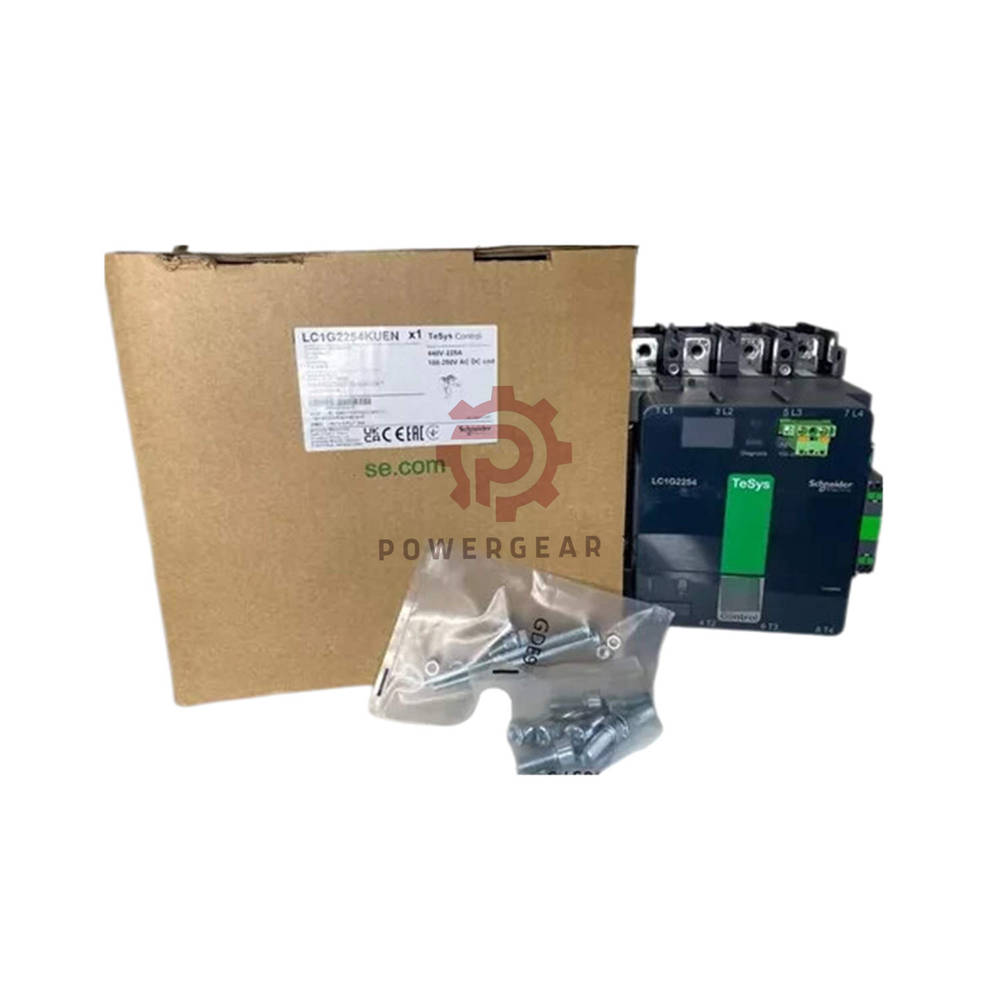

LC1G2254KUEN Schneider TeSys Giga Contactor 4P 330A High Power Switching Solution

LC1G2254KUEN High Power Contactor – Engineered for Demanding Switching

• Schneider Electric TeSys Giga delivers robust performance in heavy-duty operations.
• This 4-pole (4NO) contactor handles high current switching with precision.
• Designed for power circuits requiring stable and reliable control.
• Wide-band coil supports both AC and DC control voltages.
• Optimized for continuous operation in industrial automation systems.

Core Performance Highlights

• 330A AC-1 current capacity ensures high load handling.
• 225A AC-3 supports motor control applications.
• Rated operational voltage up to 1000V AC.
• High breaking capacity ensures safe disconnection under load.
• Advanced coil design reduces energy consumption.

Electrical & Mechanical Characteristics

• Impulse withstand voltage reaches 8 kV.
• Thermal current rated at 330A in open air.
• Mechanical durability up to 8 million cycles.
• Fast switching response improves system efficiency.
• Low impedance design reduces heat generation.

Design & Installation Features

• Compact structure supports panel integration.
• Bar and lug terminals ensure secure connections.
• Push-in control terminals simplify wiring.
• Mounting on plate enables flexible installation.
• Clear terminal layout reduces wiring errors.

Environmental & Protection Capabilities

• Operating temperature range from -25°C to 60°C.
• Storage capability down to -60°C.
• Shock and vibration resistant for harsh environments.
• IP2X protection ensures safe front access.
• Protective treatment enhances durability.

Compliance & Certifications

• Complies with IEC, UL, CSA, and JIS standards.
• Certified by CE, CCC, EAC, and UKCA.
• Meets global industrial safety requirements.

Powergear X Automation’s Insight

• This model excels in high-current switching environments.
• It suits motor starters, HVAC systems, and power distribution panels.
• The wide voltage coil simplifies inventory management.
• It reduces downtime in continuous production systems.
• Ideal for equipment requiring frequent switching cycles.

Typical Application Equipment

• Industrial motor control centers
• Large HVAC compressors and fans
• Power distribution cabinets
• Automated manufacturing lines
• Energy management systems

Professional FAQ

• How to select the correct contactor rating?
• Evaluate load current, voltage, and application category before selection.
• Can this model handle frequent switching?
• Yes, it supports high cycle rates with strong mechanical endurance.
• What coil voltage flexibility does it offer?
• The coil operates across a wide 100–250V AC/DC range.
• What factors affect lifespan in real applications?
• Load type, switching frequency, and ambient conditions impact durability.
• What should be considered when ordering?
• Confirm pole configuration, voltage rating, and installation space.
• What support is available after purchase?
• Includes 12-month warranty and technical assistance.
• How fast is delivery after order confirmation?
• Orders ship within 12–48 hours via reliable carriers.
• Which shipping methods are available?
• FedEx, UPS, and DHL ensure global delivery.
• How to place an order quickly?
• Contact sales directly for fast quotation and processing.
