IOP HC32 Affordable MTL IOP Surge Protector

MTL IOP Surge Protectors: Protect Your Equipment

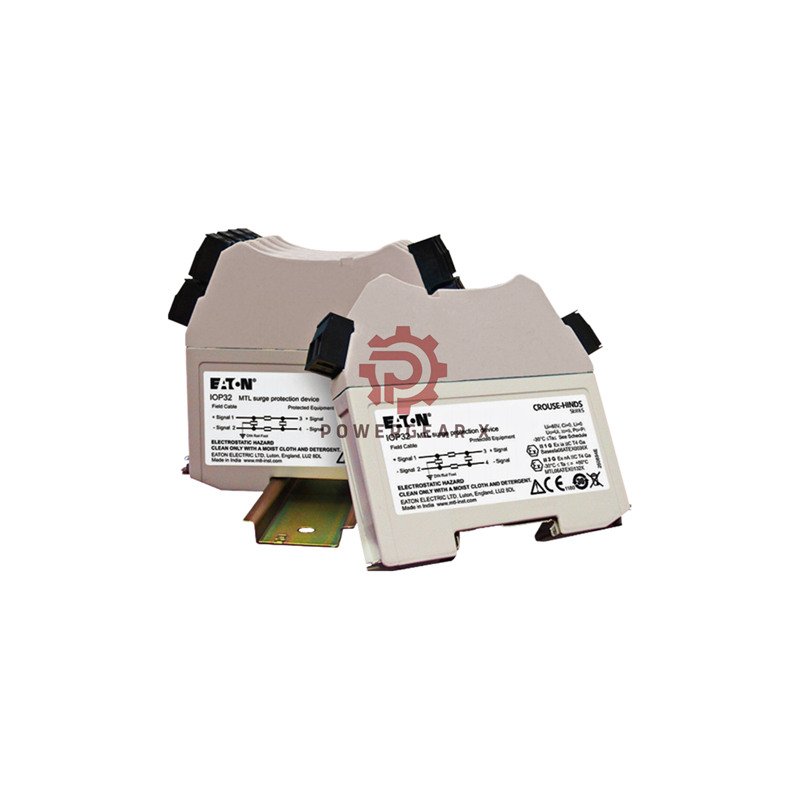

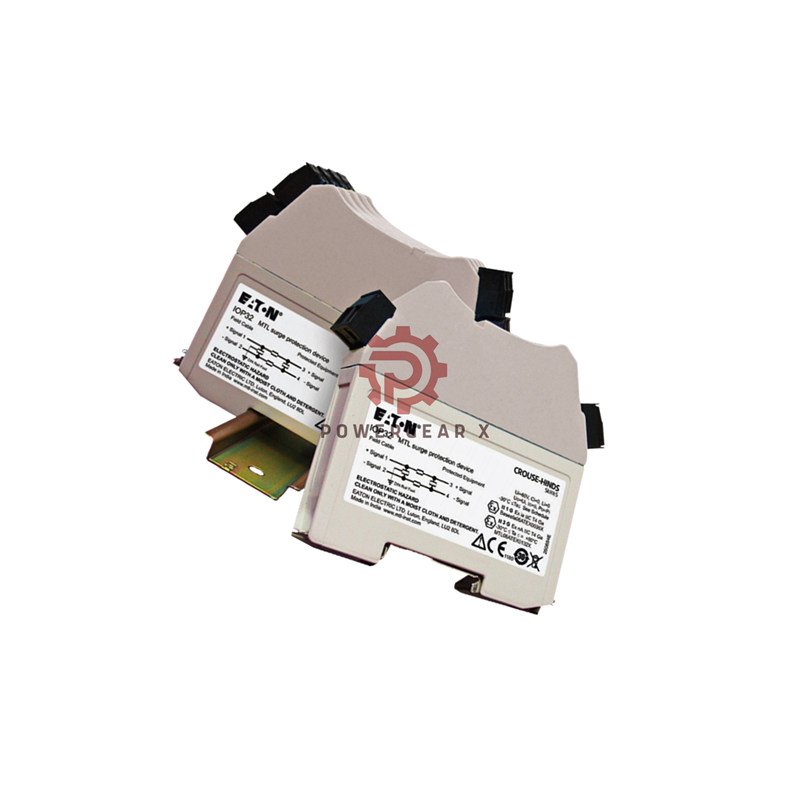

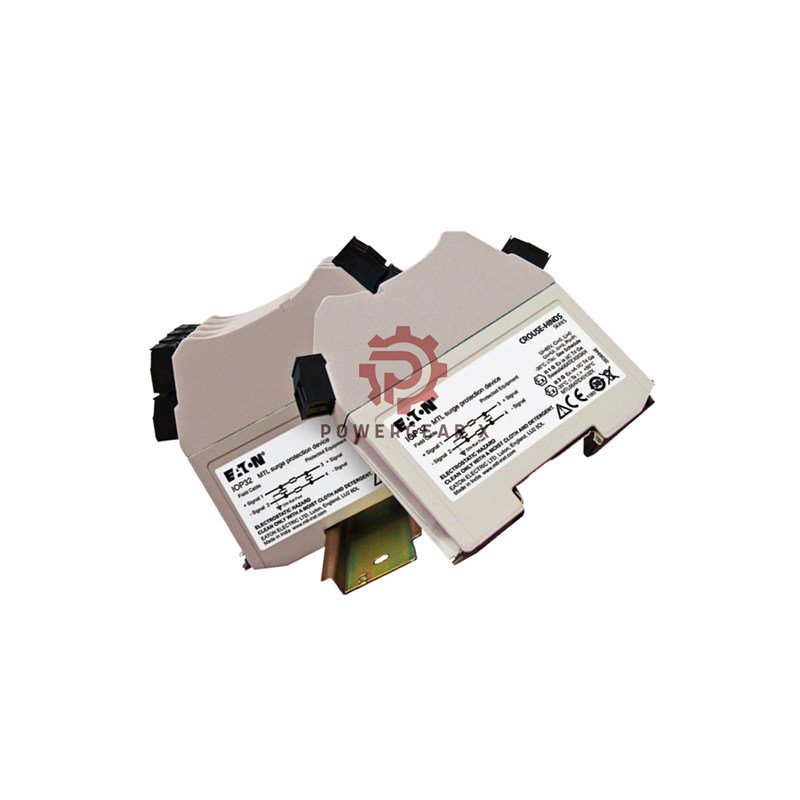

Stop surges from damaging your valuable equipment. The MTL IOP range offers strong protection for digital and analog signals. It is a very cost-effective solution. It uses a hybrid design with gas tubes and solid-state parts. This gives you high protection without a high price. These modules are small and easy to install on a DIN rail.

Technical Specifications

• Brand: Eaton MTL
• Product Range: IOP Series Surge Protection
• Models: IOP32, IOP32D, IOP HC32, IOP-AC
• Protection Type: Hybrid (Gas Discharge Tube + Solid State)
• Max Surge Current (per line): 20kA (8/20µs)
• Response Time: Less than 1 nanosecond
• Leakage Current: < 1 µA
• Loop Resistance: IOP32/D: 4Ω, IOP-AC: 1Ω, IOP HC32: 0Ω
• Bandwidth (IOP32/D, IOP-AC): 6.5 MHz
• Max Load Current: IOP HC32: 5A, Others: 0.675A
• Operating Voltage: DC: 32V, AC: 240V
• Voltage Protection Level: < 38V
• Operating Temperature: -40°C to +80°C
• Connection Terminals: Removable screw terminals for 2.5mm² wire
• Mounting: Standard T-section DIN rail (35mm)
• Safety Certifications: ATEX, FM, UL94-V0 Flammability
• Warranty: 12 Months

Which Model Do You Need?

• IOP32: Use for one standard signal loop (2 wires).
• IOP32D: Use for two standard signal loops (4 wires). Saves space.
• IOP HC32: Use for one high-current loop (up to 5A). Perfect for solenoids and relays.
• IOP-AC: Use for two 120V or 240V AC power loops.

What You Get

• Your chosen MTL IOP surge protector module.
• A secure DIN rail clip.
• Our 12-month product warranty.

Common Questions (FAQ)

• Q: Can the IOP HC32 protect a motor starter circuit?
  A: Yes. Its 5A rating is good for small motors and solenoids.
• Q: Is the IOP-AC safe for my 240V AC machine?
  A: Absolutely. It is designed for 240V AC loops.
• Q: How fast does it react to a power surge?
  A: It reacts in under 1 nanosecond. This is extremely fast.
• Q: Do I need a special tool to wire it?
  A: No. A standard screwdriver is all you need.
• Q: What if it fails within a year?
  A: Our 12-month warranty covers it. We will send a replacement.
