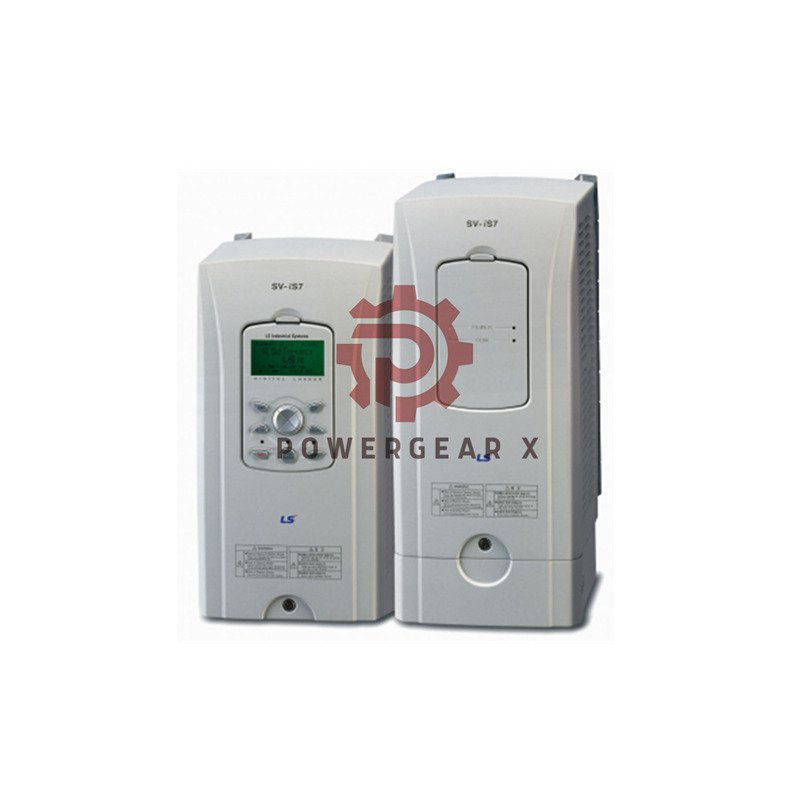

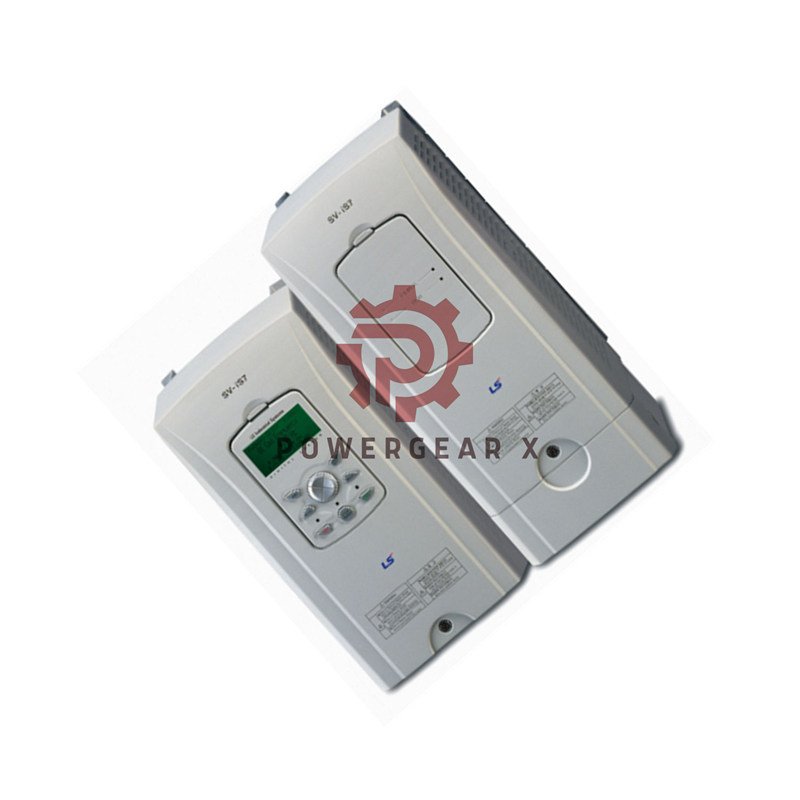

Industrial AC Drive LS ELECTRIC SV0037IS7-4N0 for Heavy Duty Applications

LS ELECTRIC High Performance Drive SV0037IS7-4N0 Overview

Author: Powergear X Automation

The SV0037IS7-4N0 is a strong and stable drive for many motor tasks. It works with wide voltage ranges and keeps steady output for heavy and normal loads. Contact us for fast support:
+86 18030005825 /
sales@powergearx.com.

Main Highlights

• Stable start and smooth control for motors from 3.7 kW to 5.5 kW
• Strong overload support: HD 150% / ND 110%
• Fast setup with clear terminal layout
• Wide 380–480 VAC input for 3-phase systems
• Built-in Modbus RTU for simple communication
• 12-month warranty from Powergear X Automation
• Fast delivery via FedEx, UPS, DHL

Core Technical Data

• Product Code: 6121001900
• Model: SV0037IS7-4N0
• IP Rating: IP20
• Supply Frequency: 50–60 Hz
• Input Current HD: 7.5 A
• Input Current ND: 11.1 A
• Output Current HD: 8 A
• Output Current ND: 12 A
• Output Freq Range: 0–400 Hz
• Motor Power: 3.7 kW (HD) / 5.5 kW (ND)
• Control: V/F, V/F PG, Slip Comp, Sensorless, Vector
• Terminals: 8 input points
• Relay Output: 2 points
• Open Collector: 1 point
• Certifications: KC, CE, UL, cUL, C-Tick, ABS, BV, DNV, KR

Extra Technical Enhancements

• Short circuit rating: 100 kA
• Altitude limit: up to 4000 m with derating
• Humidity: up to 95% non-condensing
• Vibration resistance: 1.0G
• Storage temp down to –20℃ for long-term warehousing
• Supports many fieldbus options: EtherNet/IP, PROFINET, CC-LINK, CANopen, RAPIEnet+
• Flexible option cards for PLC, I/O expansion, encoder signals
• Frame Size A: 150 × 284 × 200 mm

Why Choose This Drive

• Reliable performance for pumps, fans, conveyors
• Good motor torque at low speed
• Easy to replace in old systems thanks to wide power rating
• Stable communication in industrial networks
• Trusted by many plants for long life and low failure rate

Professional FAQ

Q1: What fieldbus option is best for multi-brand systems?
A1: PROFINET or EtherNet/IP works best for mixed-control systems, giving smooth data exchange.

Q2: Does this drive handle sudden load changes?
A2: Yes. The HD overload level allows short spikes without shutdown, useful for compressors and conveyors.

Q3: What should I check before replacing an old inverter?
A3: Confirm input voltage, motor kW, and terminal type. Also check the braking and communication needs.

Q4: How do I prevent noise issues in long cable runs?
A4: Use shielded motor cables and keep power and signal cables separated. Grounding the shield also helps.

Q5: Can this drive run at low speed for long periods?
A5: Yes, but ensure airflow is not blocked. Low-speed running may require a fan or derating in hot areas.
