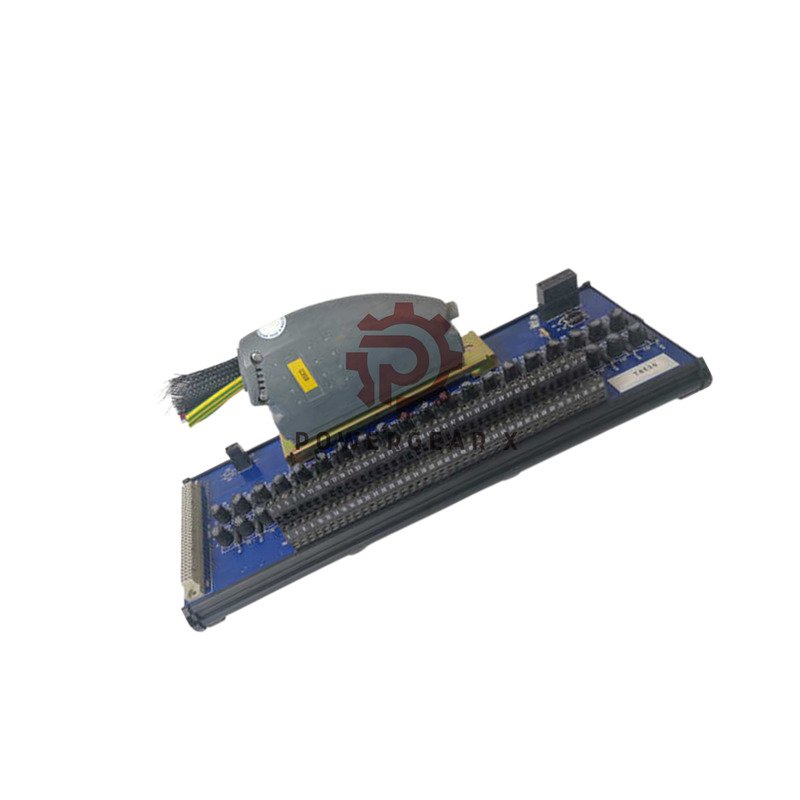

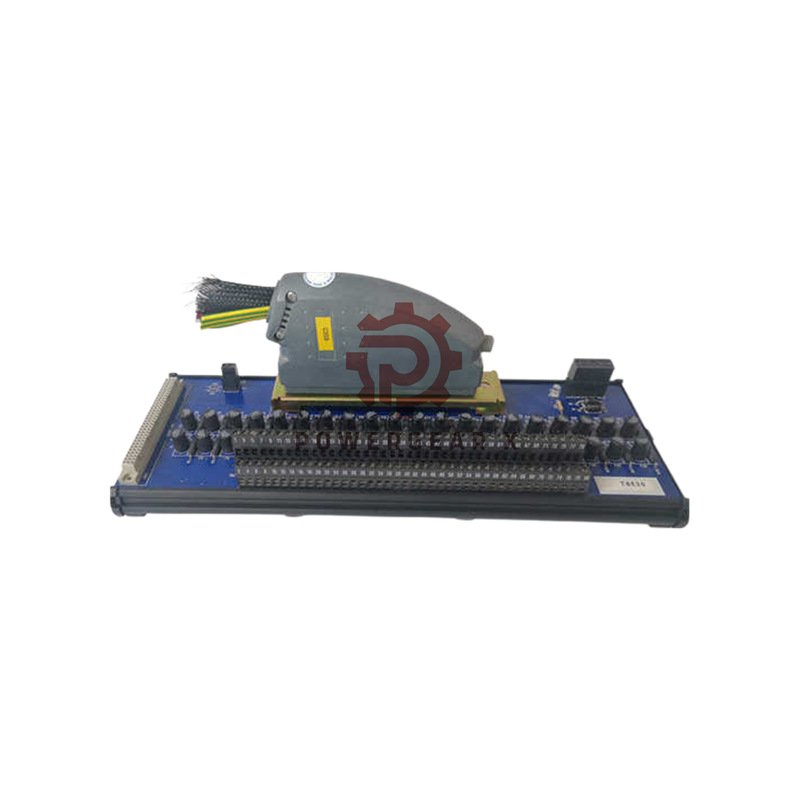

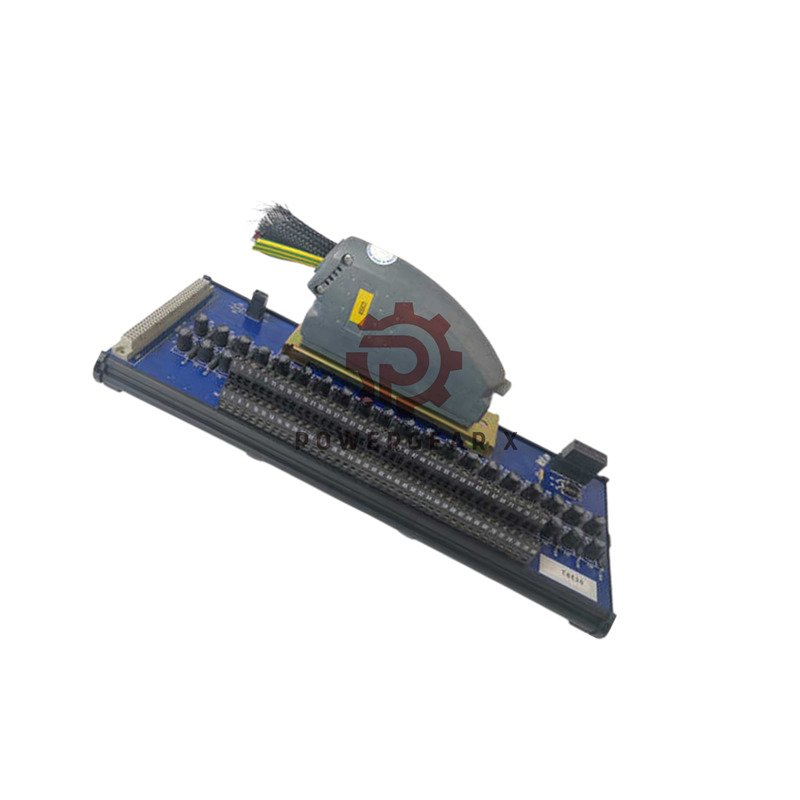

ICS Triplex T8830 — 40 Channel Analog Input FTA (Fused)

The T8830 from ICS Triplex provides reliable and fused 40-channel analogue input termination for the Trusted® TMR System. Made in the United States, this unit ensures high-performance signal integrity, safety, and simple field connectivity for industrial automation applications.

Product Highlights

• 40 input channels with per-channel 50 mA fuses.
• Supports 18–32 VDC power supply, total consumption 5 W.
• DIN rail mount design for fast installation and easy maintenance.
• On-board LED indicators for field power integrity.
• SmartSlot connection for easy hot-swap module replacement.
• Dual 24 VDC field power feed ensures redundancy and reliability.
• Fully compatible with the Trusted® Analogue Input Module T8431.
• Certified for Ordinary, Hazardous, ATEX, and IECEx environments.

Technical Specifications

• Brand: ICS Triplex
• Model: T8830
• Series: Trusted TMR System
• Channels: 40 Analogue Input Channels
• Input Range: 0–22 mA per channel
• Fuse: TR5 50 mA (40 pcs)
• Supply Voltage: 18–32 VDC
• Power Consumption: 5 W max
• Mounting: Standard DIN rail
• Origin: United States (US)
• Certifications: ATEX / IECEx / Ord / HazLoc
• Warranty: 12 months standard warranty

Installation Notes

• Use DIN rail installation for quick and secure mounting.
• Connect power via dual 24 VDC feeds for redundant supply.
• Ensure proper fuse rating and verify LED indicators before start-up.
• Link field inputs through 2-wire terminal blocks for clean connections.

Packaging & Delivery

• 1 × T8830 Analog Input FTA
• 40 × TR5 50 mA Fuses (pre-installed)
• 1 × Quick Installation Manual (English)
• Ships via FedEx, UPS, or DHL

FAQ

• Q: What is the voltage range of the T8830?
  A: It operates from 18 to 32 volts DC at 5 watts maximum.
• Q: How many input channels does it support?
  A: The unit supports 40 independent analog input channels.
• Q: Is it compatible with other Trusted modules?
  A: Yes, it works seamlessly with the Trusted Analogue Input Module T8431.
• Q: What is the fuse rating used in each channel?
  A: Each channel uses a 50 mA TR5 fuse for overload protection.
• Q: Where is the T8830 manufactured?
  A: It is manufactured in the United States and meets ATEX/IECEx standards.
