Product details

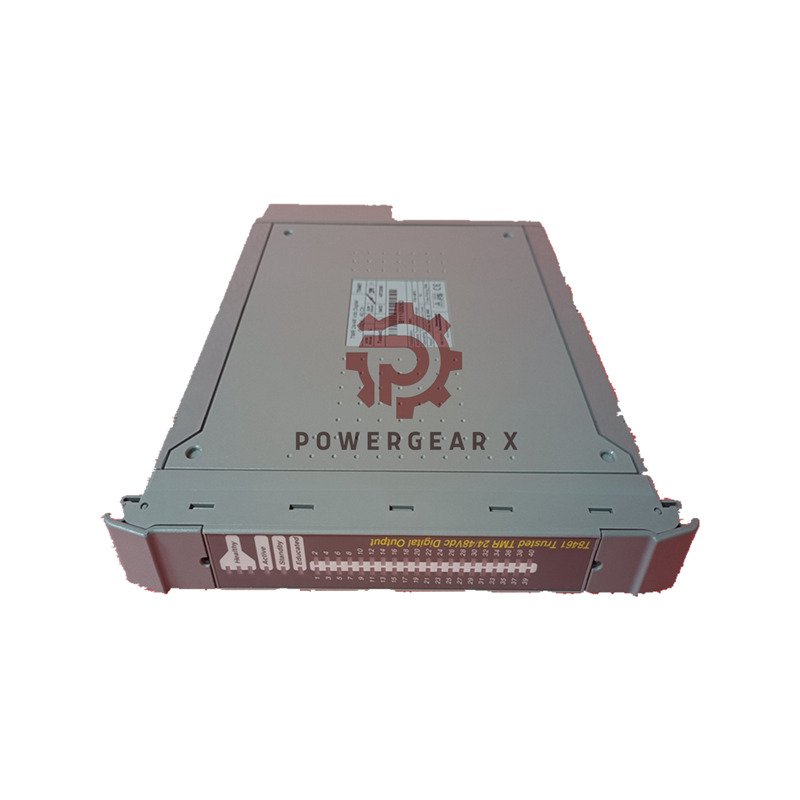

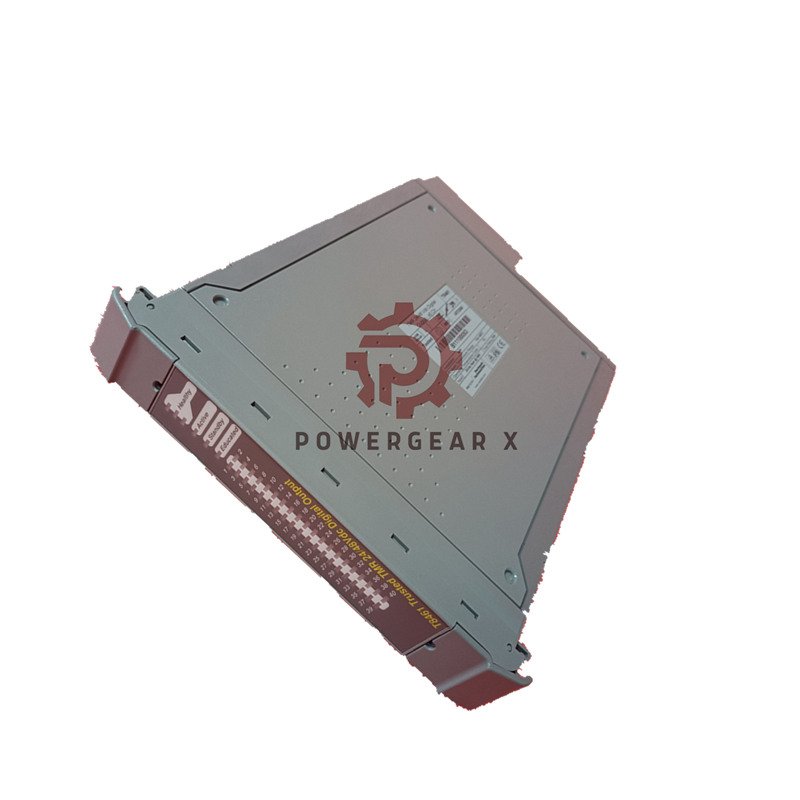

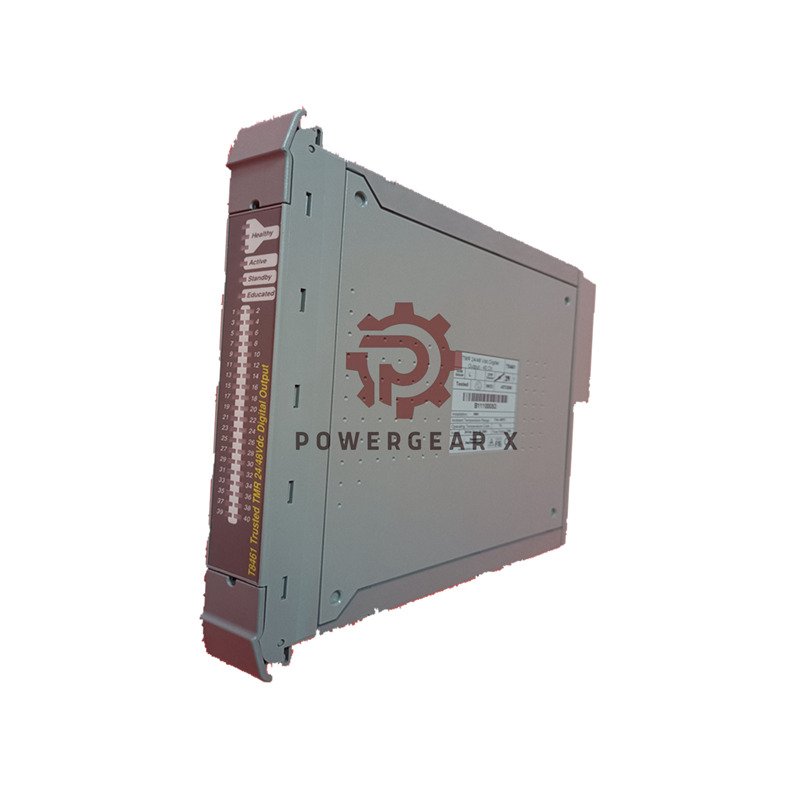

ICS Triplex T8461 Digital Output TMR Module Overview
Model: T8461
Description: Digital Output TMR 48 Vdc, 40 Channel
Manufacturer: ICS Triplex
System Supply Voltage Range: 20–32 Vdc
Certification: Ord / HazLoc / ATEX / IECEx
Warranty: 12 Months
Shipping: FedEx, UPS, DHL
- Channels: 40 isolated outputs with 5 power groups (8 each)
- Output Voltage Range: 18–60 Vdc
- Output Current: 0.75A per channel, 6A per group
- Power Consumption: System 22W, Field 18W
- Delay: Turn-on/off 0.5ms, Update 0.5ms
- Accuracy: Time-stamp ±0.5ms, Event Resolution 1ms
- Protection: Automatic short-circuit protection
- Isolation: ±250V dc sustained, ±2.5kV dc max
- Operating Temp: -5°C to 60°C
- Humidity: 5–95% RH non-condensing
- Dimensions: 266H × 31W × 303D mm
- Weight: 1.285kg (2.8lbs)
Product Highlights
- Triplicated design ensures fault tolerance.
- Fast 0.5ms switching speed for precision systems.
- Electronic latching short-circuit protection.
- Wide operating voltage range up to 60Vdc.
- Stable operation in harsh environments.
Technical Benefits
- Supports high-reliability control in safety-critical systems.
- Compatible with various ICS Triplex architectures.
- Excellent noise immunity with > -40dB crosstalk.
- Low power heat dissipation for efficient cooling.
- Accurate event logging with 1ms resolution.
FAQ – ICS Triplex T8461
- Q: What makes the T8461 different from standard output modules?
A: It features triple modular redundancy for high fault tolerance. - Q: What power range does this module support?
A: It operates from 18 to 60Vdc with 0.75A per channel. - Q: Is it suitable for hazardous areas?
A: Yes, it meets ATEX, IECEx, and HazLoc certifications. - Q: Can it handle pulse or flashing loads?
A: Yes, version 3.5 or later supports pulsing current loads effectively. - Q: How can I purchase or get support?
A: Contact us via sales@powergearx.com or WhatsApp at
+86 18030005825.
Related Logistics & Warranty
- Fast global delivery through FedEx, UPS, DHL.
- All items tested before dispatch.
- Standard 12-month warranty from shipment date.
- Professional technical support available 24/7.
