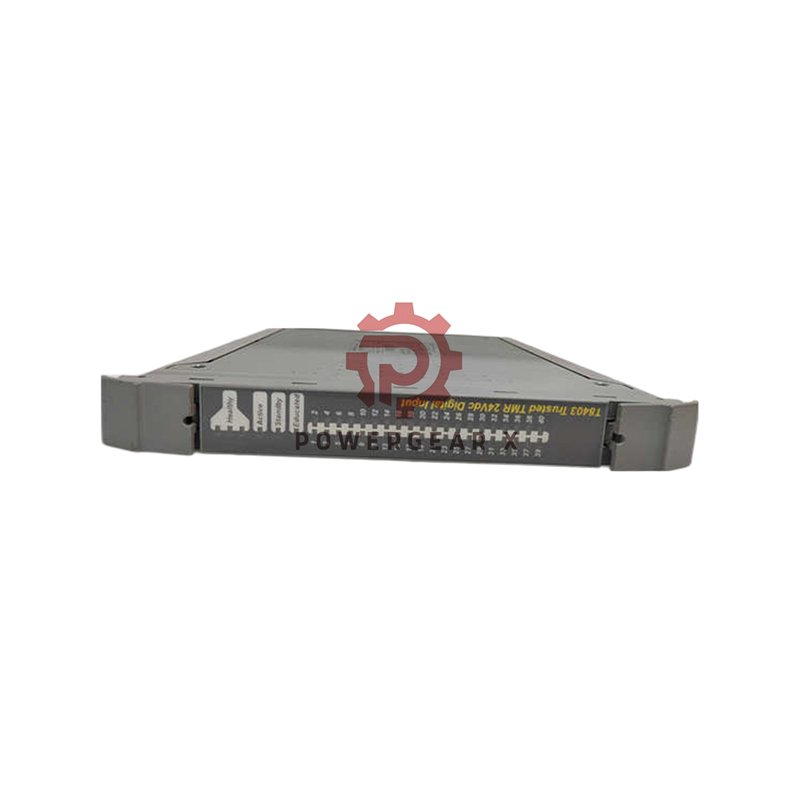

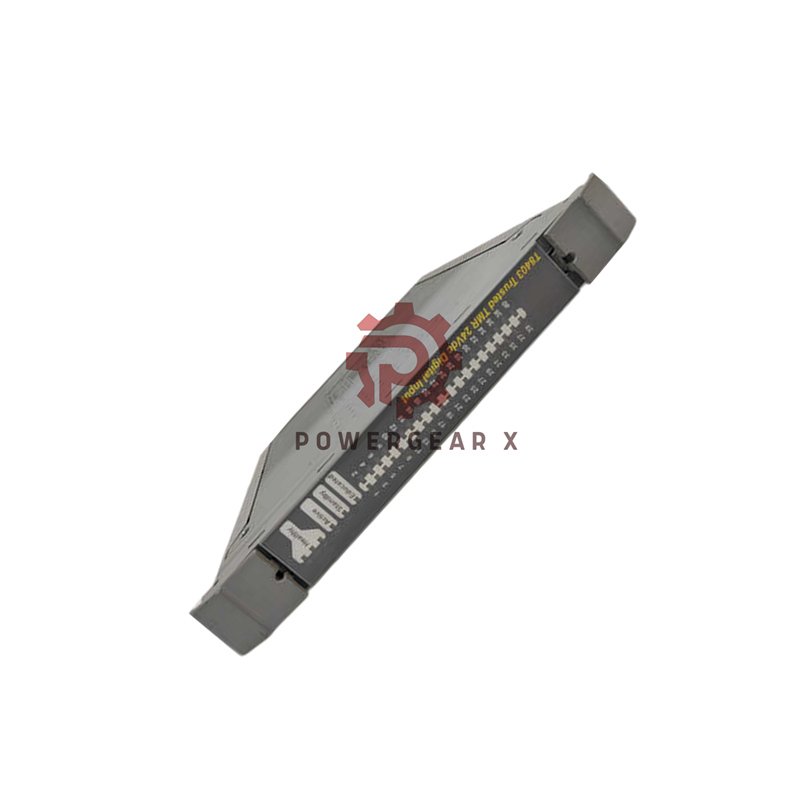

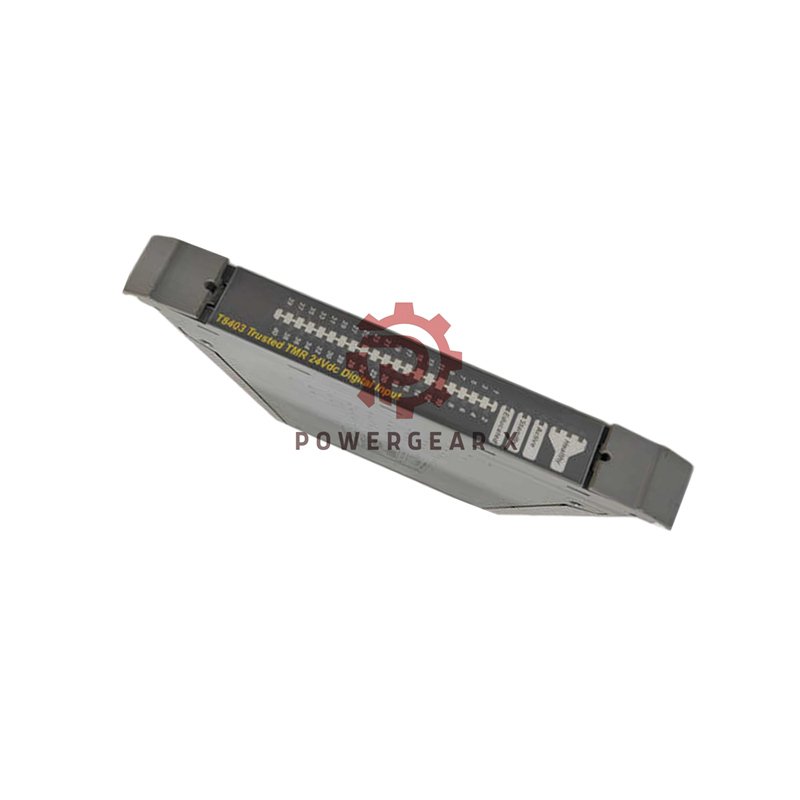

ICS Triplex T8403 Trusted 24Vdc Digital Input Module
ICS Triplex T8403 is a high-reliability 24Vdc digital input module designed for Trusted TMR systems. It offers precise input monitoring and dependable signal isolation for mission-critical control environments.
- Model: T8403
- Product Type: Trusted TMR 24Vdc Digital Input Module
- Manufacturer: ICS Triplex
- Supply Ratings: 20–32 Vdc, 20 W
- Input/Output Ratings: 0–40 Vdc
- Certification: Ord / HazLoc / ATEX / IECEx
Performance Features
- 40-channel digital input module for fast signal acquisition.
- Provides accurate detection of field input signals with built-in diagnostics.
- Offers high noise immunity to ensure stable operation in industrial settings.
- Supports redundant configuration for maximum system availability.
- Ideal for use with Trusted TMR systems for safety-critical control processes.
Technical Highlights
- Power Supply: 20–32 Vdc, max 20 W
- Input Voltage Range: 0–40 Vdc
- Input Channels: 40 isolated inputs
- Signal Threshold: 12–18 Vdc typical ON level
- Input Resistance: 10 kΩ typical
- Response Time: < 5 ms typical
- Isolation: 2500 Vrms between field and logic
- Operating Temperature: -20°C to +60°C
- Humidity: 5%–95% non-condensing
- Warranty: 12 months
- Shipping Options: FedEx, UPS, DHL
Product Advantages
- Reliable 24Vdc digital input module built for harsh industrial conditions.
- Ensures safe field wiring through optical isolation per channel.
- Compact design simplifies cabinet layout and maintenance.
- LED indicators for fast channel status and fault detection.
- Compatible with Trusted system redundancy for uninterrupted operation.
Application Areas
- Oil and Gas process control systems.
- Power generation and distribution automation.
- Chemical and petrochemical plant control networks.
- Water treatment and environmental monitoring systems.
- Industrial safety and emergency shutdown applications.
FAQ
- Q: How many digital inputs does the T8403 support?
A: The module provides 40 isolated digital input channels for 24Vdc signals. - Q: Can the T8403 be used in redundant systems?
A: Yes, it fully supports Trusted TMR redundancy for high reliability. - Q: What is the response time of each input channel?
A: The input response time is typically less than 5 milliseconds. - Q: What are the environmental limits for this module?
A: Operating temperature ranges from -20°C to +60°C, with up to 95% humidity. - Q: How can I order or get a quote?
A: Contact sales@powergearx.com or WhatsApp +86 18030005825 for assistance.
Ordering & Support
- Manufacturer: ICS Triplex
- Product Number: T8403
- Model Type: Trusted 24Vdc Digital Input Module
- Warranty: 12 months standard
- Shipping via FedEx, UPS, or DHL worldwide
