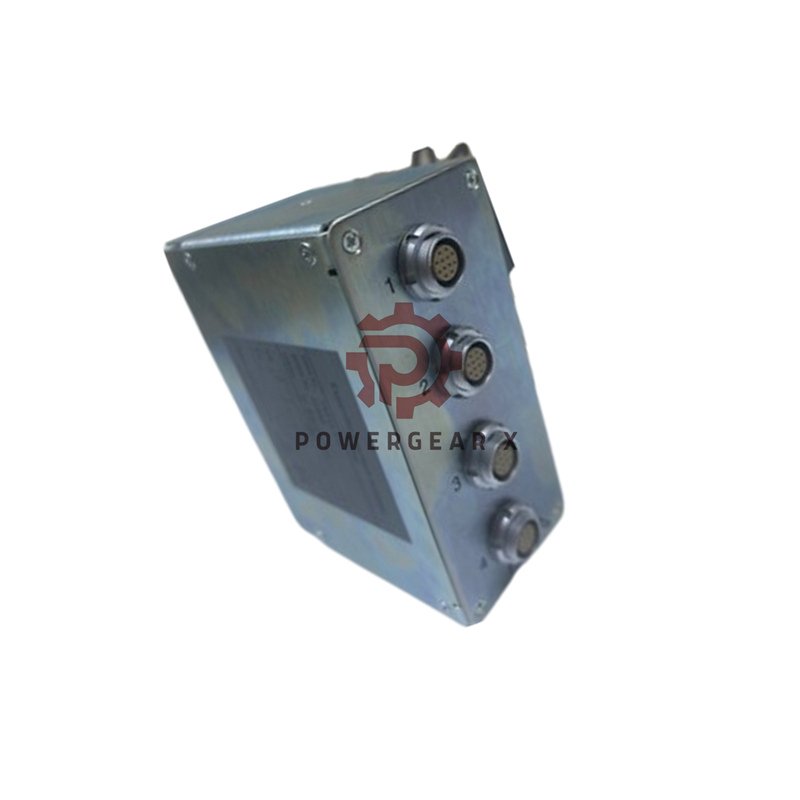

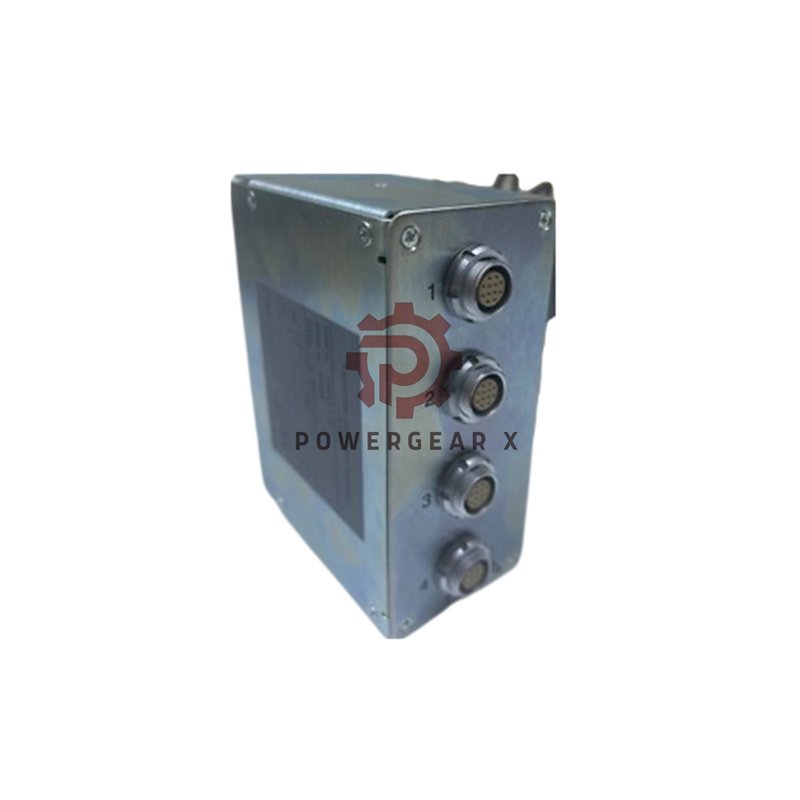

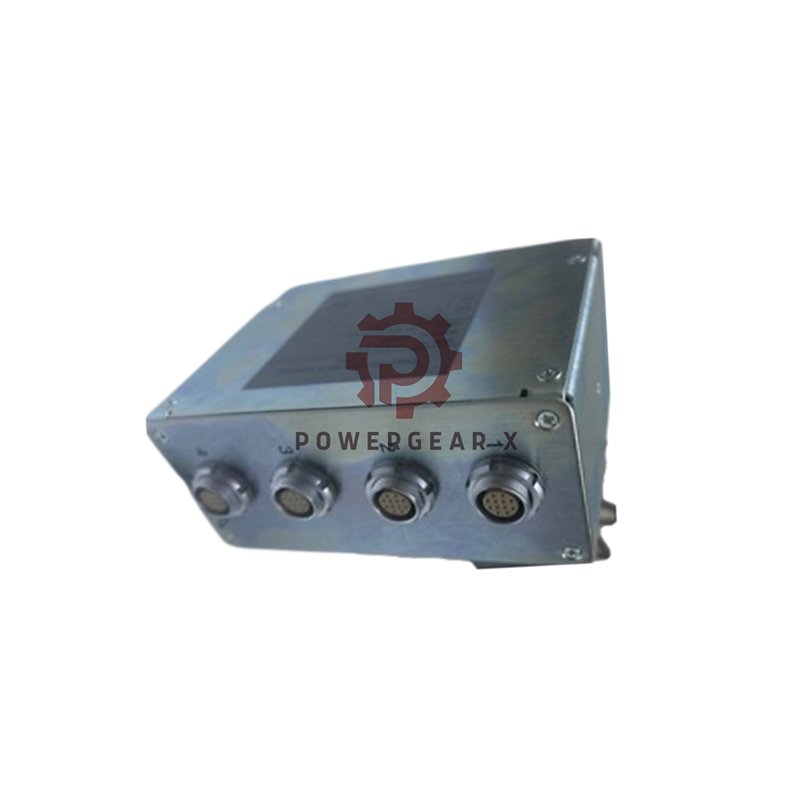

ICS Triplex T8312 Expander Interface Adapter

Overview — ICS Triplex T8312 Expander Interface Adapter

The T8312 Expander Interface Adapter from ICS Triplex connects controller and expander chassis for reliable communication and system scalability. It supports efficient data transfer, ensuring stable performance in complex automation systems.

Key Features

• Connects controller chassis interface modules to expander chassis processor interface modules with high reliability.
• T8312/4 connects up to four expander chassis, ideal for medium-sized installations.
• T8312/7 connects up to seven expander chassis, suitable for large automation networks.
• Controller chassis ID is set to #1 for consistent identification.
• Expander chassis IDs are assigned sequentially from 2 to 8 for easy configuration.

Technical Specifications

• Brand: ICS Triplex
• Model: T8312
• Category: Expander Interface Adapter
• Function: Links expander interface modules in the controller chassis to processor interface modules in expander chassis.
• Variants: T8312/4 (up to four chassis) and T8312/7 (up to seven chassis).
• Weight: 0.65 kg (1.43 lbs)
• Supply Ratings: N/A — confirm system power compatibility before use.
• Environmental Tolerance: Designed for high-reliability industrial environments with strong EMI protection.
• Software Integration: Configuration required within system software for ID mapping and chassis recognition.
• Certifications: Ord, HazLoc, ATEX, IECEx — suitable for hazardous locations.

Packaging List

• 1 × ICS Triplex T8312 Expander Interface Adapter
• 1 × Quick-start installation guide with DIP switch tables
• 1 × Mounting screw set
• 1 × Cable tie pack for wiring management

Shipping Options

• Global delivery available via FedEx, UPS, and DHL.
• Express service available for urgent industrial projects.

Certifications and Compliance

• Certified for Ord, HazLoc, ATEX, and IECEx compliance.
• Engineered for use in classified or hazardous industrial areas.
• Check regional certification requirements prior to installation.

FAQ

• How many expander chassis can it connect?
  The T8312/7 connects up to seven expander chassis. For more, use an additional adapter.
• How do I set the chassis ID?
  Set the controller chassis to #1 and expander chassis from 2 to 8 using DIP switches.
• Does the T8312 require external power?
  No, it uses power from the controller chassis connection.
• Is software configuration required?
  Yes, system software must be updated to recognize the adapter and chassis IDs.
