Product details
Overview

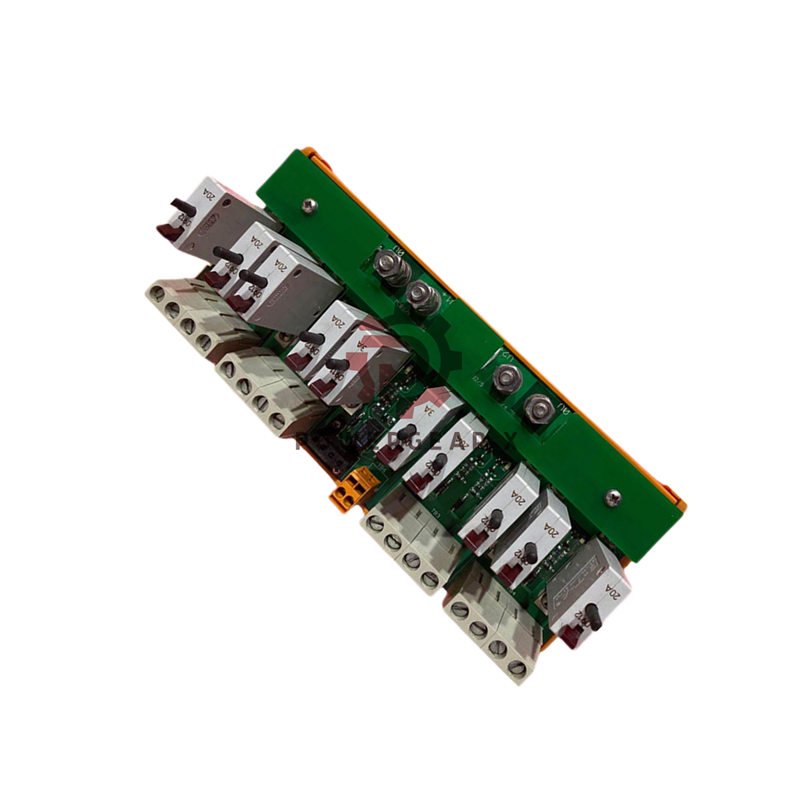

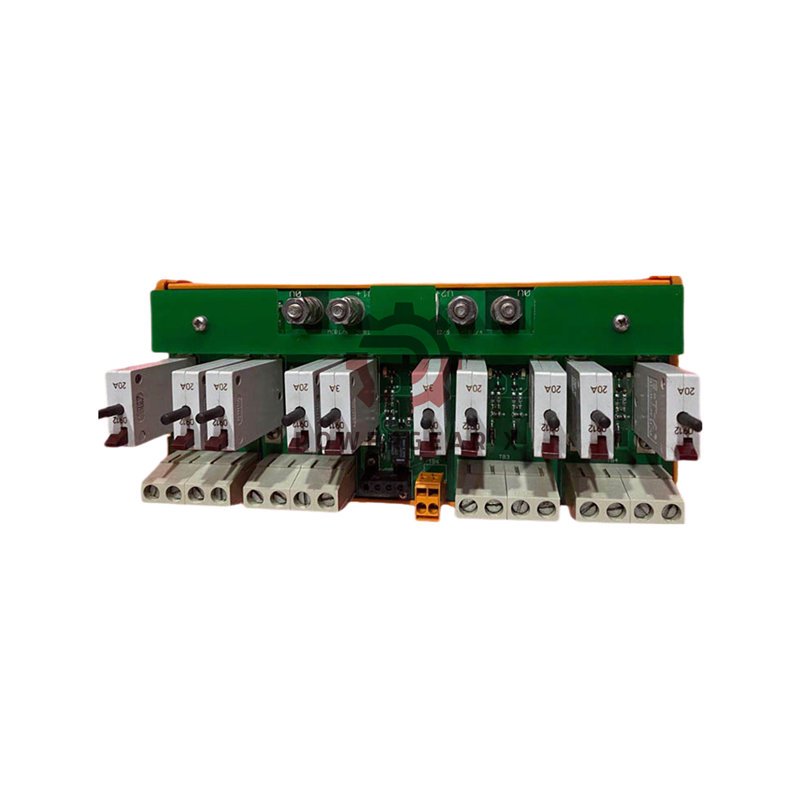

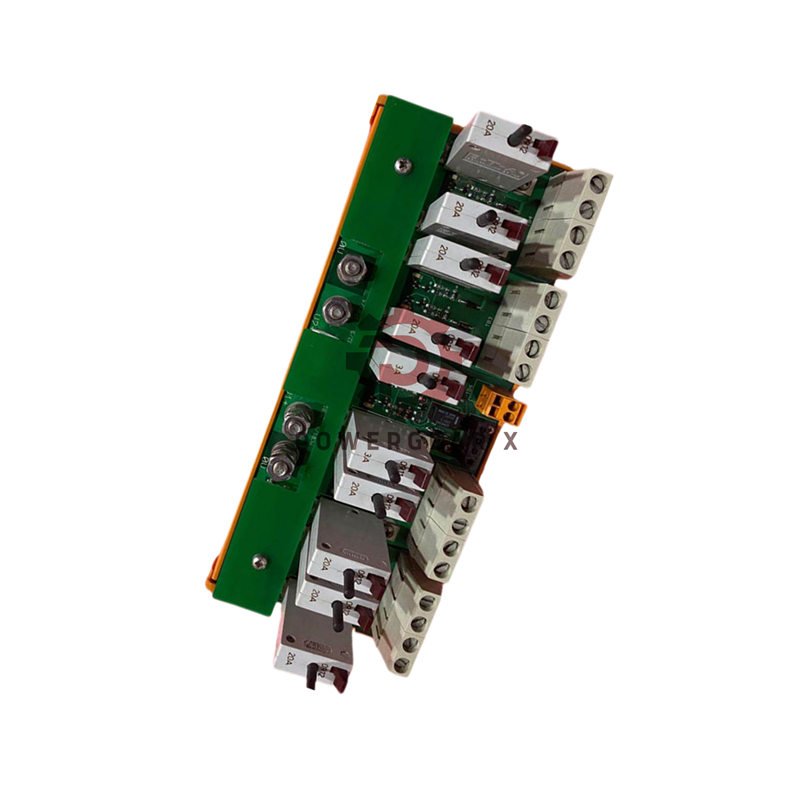

The ICS Triplex T8292 is a Trusted Power Distribution Unit designed to deliver reliable 24Vdc power for Trusted TMR control systems.
It simplifies system wiring, supports redundancy, and ensures stable power supply for safety-critical automation applications.
Technical Specifications
- Brand: ICS Triplex
- Model: T8292
- Category: Trusted Power Distribution Unit
- Supply Ratings: 18 – 28 Vdc
- Input/Output Ratings: 60A Max
- Certification: OrdLoc
- Origin: United States (US)
- Compatible with T8100 Trusted Controller Chassis and TMR Processor systems.
- Provides power fault monitoring, PSU shutdown interlock, and chassis earth connection.
- Built for high electromagnetic immunity and stable operation under harsh industrial conditions.
Trusted Communication Interface (Reference)
- The T812X Adapter allows external systems to communicate with Trusted TMR Processors.
- Includes RS422/RS485 two-wire and four-wire configurable communication ports.
- Provides options for MODBUS Master mode and IRIG-B time synchronisation inputs.
- Direct rear connection to both Active and Standby Processors using dual DIN41612 connectors.
Installation Guide
- Install the T8292 into the rear slot of the Trusted Controller Chassis.
- Ensure equipotential bonding and chassis earth connection before power-up.
- Verify input voltage is within 18–28 Vdc range before energising the system.
- Monitor fault indicators and PSU shutdown lines during commissioning.
Packaging Contents
- 1 × ICS Triplex T8292 Trusted Power Distribution Unit
- 1 × Mounting hardware and DIN41612 dust cover set
- 1 × Quick start installation guide and wiring diagram
- 1 × Label sheet for output marking and grounding identification
Shipping & Delivery
- Global delivery via FedEx, UPS, or DHL with secure export packaging.
- Express delivery available upon request for critical system replacement.
- Contact our logistics team for shipment tracking and customs support.
FAQ
- Q: What voltage range does the unit accept?
A: The T8292 operates safely between 18 and 28 Vdc. - Q: What is the maximum output current?
A: Each power channel supports up to 60A Max. - Q: Is it compatible with redundant Trusted racks?
A: Yes, it fits directly into the Trusted TMR Controller Chassis for redundant operation. - Q: Can I connect external communication adapters?
A: The T8292 supports communication through the optional T812X interface adapter.
