Product Overview — ICS Triplex T8153

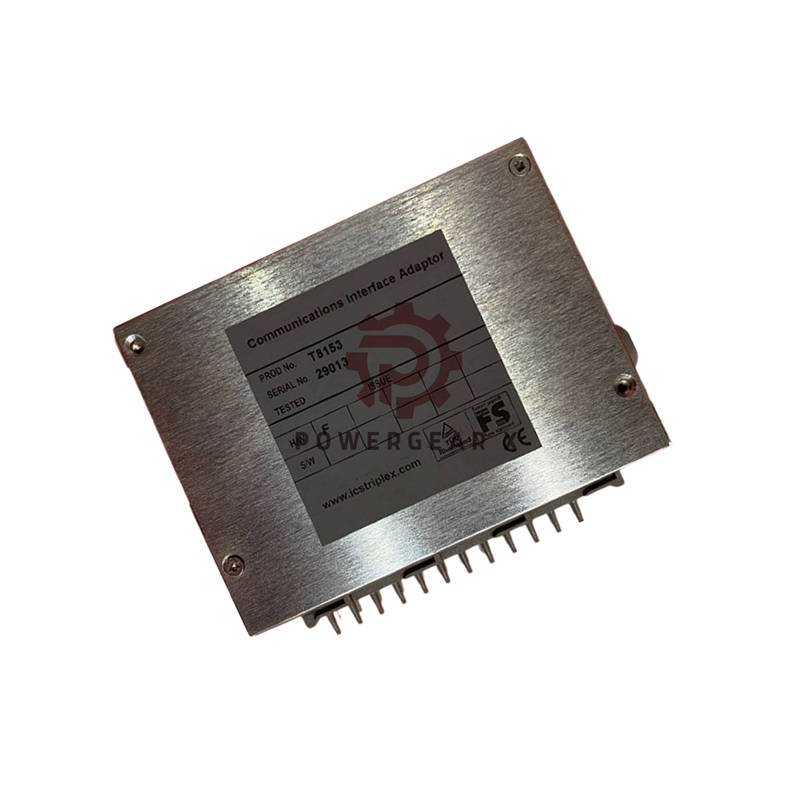

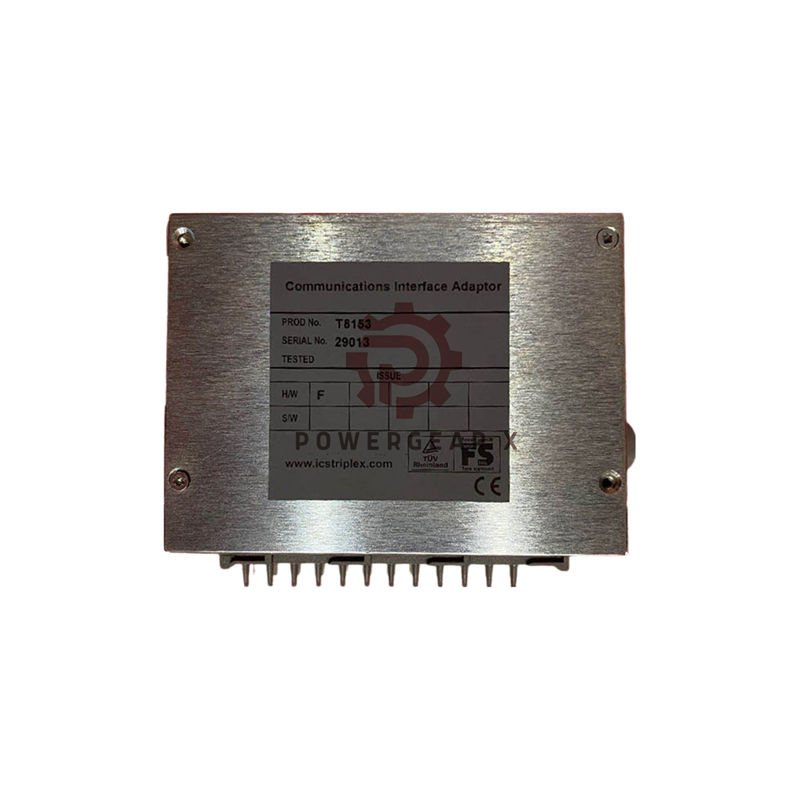

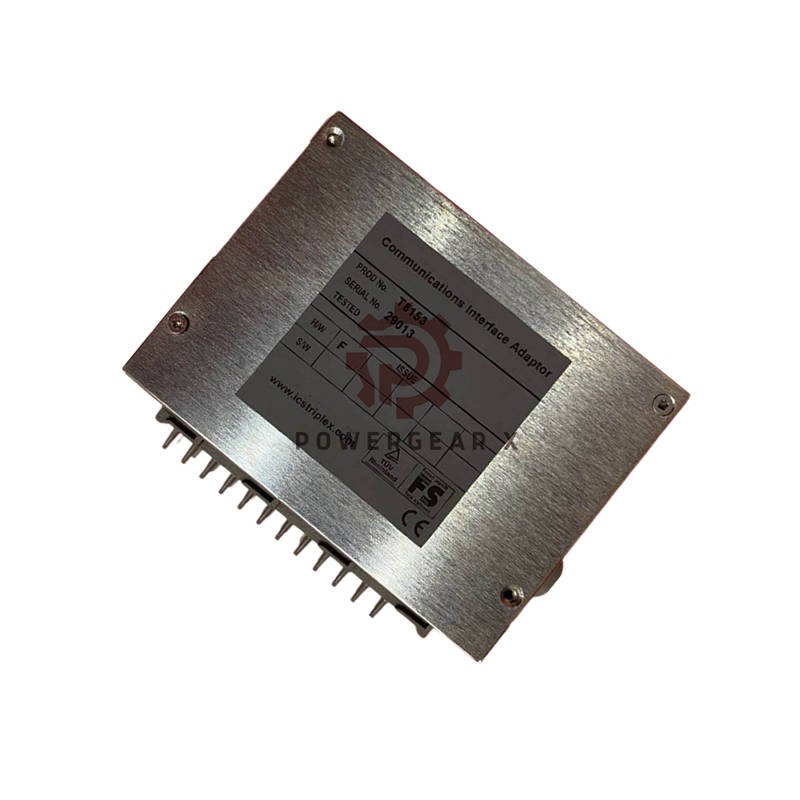

The ICS Triplex T8153 Communications Interface Adapter offers reliable access to communication ports for Trusted TMR processors. It enables easy integration with Distributed Control Systems (DCS) and other external systems while supporting time synchronization and MODBUS Master functionality.
Technical Specifications
- Brand: ICS Triplex
- Model: T8153
- Series: T812X
- Origin: United States (US)
- Compatible Processors: T8110B and T8111
- Ports: Two RS422/485 configurable 2 or 4-wire connections and one RS422/485 2-wire port.
- Connectors: Dual 48-way DIN41612 E-type SK1 connectors for Active and Standby processors.
- Time Sync Options: Supports IRIG-B122 and IRIG-B002 time synchronization inputs.
- Diagnostics: Includes processor diagnostics, PSU shutdown monitoring, and fault/fail detection circuits.
- Certifications: Ordinary, HazLoc, ATEX, and IECEx compliant for hazardous-area use.
- Environmental: Designed for robust operation under temperature variations and strong ESD/EMI resistance.
Installation Guide
- Attach the adapter directly to the rear connector of the Trusted Controller Chassis T8100.
- Securely connect to both Active and Standby processors using the dual SK1 connectors.
- Connect the chassis earth to maintain equipotential bonding and prevent ESD issues.
- Ensure proper shielding of communication and IRIG-B cables to reduce interference.
Package Contents
- 1 × T8153 Communications Interface Adapter (metal enclosure)
- 2 × 48-way DIN41612 E-type connectors (SK1)
- Mounting accessories and installation quick guide
- Shipping options: FedEx, UPS, DHL
FAQ
- Q: What communication standards are supported by the T8153?
A: The adapter supports RS422, RS485, and MODBUS Master for reliable industrial data communication. - Q: How do I enable IRIG-B synchronization with the T8153?
A: Connect IRIG-B122 or IRIG-B002 timing signals to the designated ports on the adapter. - Q: Which processors are compatible with this adapter?
A: The unit works with Trusted TMR processors T8110B and T8111.
